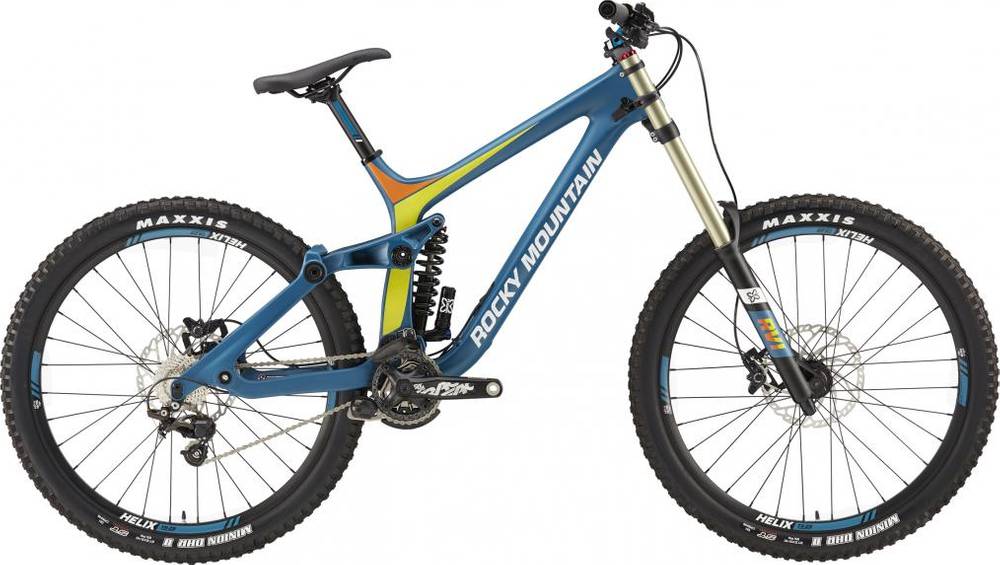

Rocky Mountain Maiden Park 2016
2016 Mountain
Estimate price |
4,499$
Weight | 17.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork X Fusion
-
Groupset Zee, e*thirteen TRS -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smoothwall Carbon. Pipelock Bearing Pivots. Press Fit BB107. ISCG05 Tabs. RIDE-4 Adjustable Equalized 27.5 / 26 Geometry. Di2 Ready.
Suspension Fork
X Fusion RV1 HLR 27.5 200mm. Hi Speed + Lo Speed Compression / Rebound
Rear Shock
X Fusion Vector Coil RC. Smoothlink Design 200mm. Compression / Rebound
Drivetrain
Rear Derailleur
Shimano Zee Shadow Plus Direct Mount 10spd
Front Derailleur
e*Thirteen TRS ISCG05
Shift Levers
Shimano Deore Rapid Fire I-Spec 1x10spd
Cassette
Shimano CS-4600 12-28T
Crank
Race Face Chester 165mm 34T Narrow-Wide 1x10spd
Bottom Bracket
Race Face Team DH Press Fit BB107
Chain
Shimano HG-54 10spd
Wheels
Front Hub
Wheeltech AM / 6 Bolt / 20mm Axle
Rear Hub
Wheeltech DH / 6 Bolt / 12 x 157mm Axle
Rims
Wheeltech Helix TR29 Tubeless Compatible by SUNringlé
Spokes
WTB 2.0 Stainless
Tires
Maxxis DHRII Super Tacky 27.5\" x 2.4\"
Brakes
Brakes
Shimano Deore Hydraulic Disc 203mm
Brake Levers
Shimano Deore I-Spec Shifter Mount
Cockpit
Stem
RMB Direct Mount 31.8 15mm rise x 45mm
Handlebar
Race Face Respond 1/2 Rise 31.8mm x 785mm x 8°
Grips
Rocky Mountain Lock On DH
Headset
FSA Orbit C-40: IS42mm Top / 52mm Bottom Tapered
Seat
Saddle
WTB Volt
Seatpost
Rocky Mountain SL 30.9mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.46 mm | 1.41 mm | 1.35 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 763 mm | 781 mm | 795 mm | 813 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm |
| Trail | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 612 mm | 612 mm | 612 mm | 612 mm |
| Reach | 402 mm | 420 mm | 434 mm | 452 mm |
| Top Tube Length | 576 mm | 594 mm | 608 mm | 626 mm |
| Seat Tube Angle | 73.9 ° | 73.9 ° | 73.9 ° | 73.9 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 457 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1194 mm | 1212 mm | 1226 mm | 1244 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 745 mm | 745 mm | 745 mm | 745 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Maiden Park completes the Rockymountain Maiden model. Rocky Mountain released 14 bikes variations of this model so far. Take a sneak peek at all Rockymountain Maiden bikes models from 2016, by clicking here.
Model range prices
Rocky Mountain Maiden Park 2016 is the most economical model, with a starting price of 4499$. Rocky Mountain Maiden Unlimited 2016 on the other hand costs 10499$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4499$. Comparing the average cost of a Downhill bike to this one, you will see that Maiden Park price is 32.67% higher.
Average weight for Downhill bikes
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, Maiden Park has a weight of 17.4 kg (38.36 lbs). To sum up, it’s 9.5% heavier than the average weight of Downhill bikes.
Overview of components
Fork
The X Fusion is included from the factory. It has a travel distance of 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the X Fusion Vector Coil RC. Smoothlink Design 200mm. Compression / Rebound rear shock model, which has a travel of 200mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Maiden Park 2016 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Rocky Mountain Maiden Park has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
