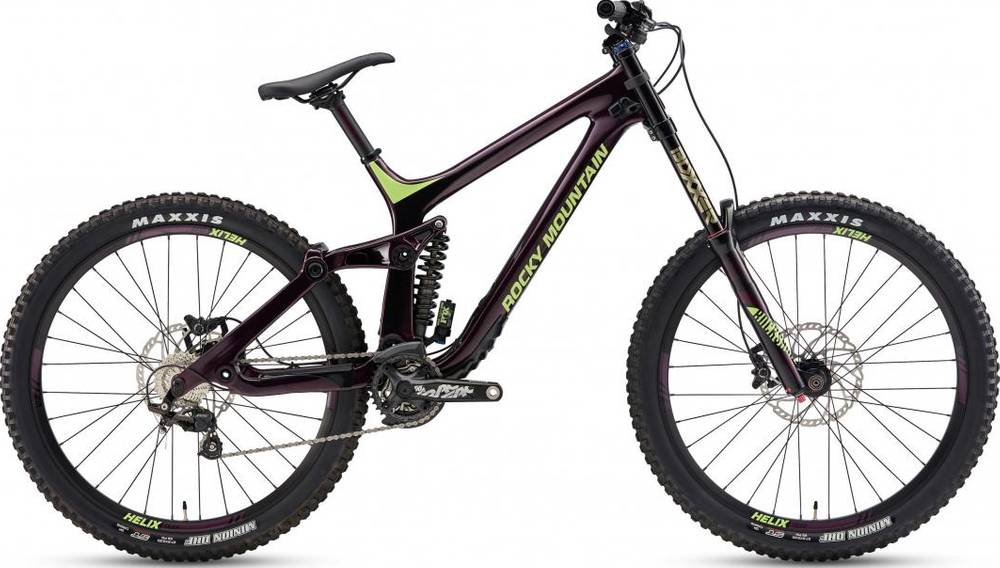

Rocky Mountain Maiden Park 2017
2017 Mountain
Estimate price |
4,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset Zee, e*thirteen TRS -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SMOOTHWALL™ Carbon C13. Pipelock™ Pivots. Press Fit BB107. 2-Bolt ISCG05 Tabs. RIDE-4™ Adjustable Equalized 27.5 / 26 Geometry. Di2 Ready.
Suspension Fork
RockShox BoxXer RC 200mm
Rear Shock
Fox Van RC 200mm
Drivetrain
Rear Derailleur
Shimano Zee Shadow Plus Direct Mount 10spd
Front Derailleur
e*Thirteen TRS ISCG05
Shift Levers
Shimano Zee
Cassette
Shimano CS-4600 12-28T
Crank
Race Face Chester 165mm 34T
Bottom Bracket
Race Face BB107 Press Fit
Chain
Shimano HG-54
Wheels
Front Hub
Rocky Mountain Sealed 20mm
Rear Hub
Rocky Mountain Sealed 157mm
Rims
Sun Helix TR29 Tubeless Compatible
Spokes
WTB 2.0 Stainless
Tires
Maxxis DHF Super Tacky 27.5 x 2.5
Brakes
Brakes
Shimano Deore Disc 203mm
Brake Levers
Shimano Deore I-Spec
Cockpit
Stem
Rocky Mountain 35 CNC DH
Handlebar
Race Face Chester 780mm
Grips
Rocky Mountain Lock On DH
Headset
FSA Orbit C-40
Seat
Saddle
WTB Volt
Seatpost
Rocky Mountain SL 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.46 mm | 1.41 mm | 1.35 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 763 mm | 781 mm | 795 mm | 813 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm |
| Trail | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 612 mm | 612 mm | 612 mm | 612 mm |
| Reach | 402 mm | 420 mm | 434 mm | 452 mm |
| Top Tube Length | 576 mm | 594 mm | 608 mm | 626 mm |
| Seat Tube Angle | 73.9 ° | 73.9 ° | 73.9 ° | 73.9 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 457 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1194 mm | 1212 mm | 1226 mm | 1244 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 745 mm | 745 mm | 745 mm | 745 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Maiden Park belongs to the Rockymountain Maiden model. Rocky Mountain released 14 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Rocky Mountain Maiden Park 2017 has a starting price of 4399$. Rocky Mountain Maiden World Cup 2017 on the other hand is the most expensive at 6999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Downhill bikes
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Rocky Mountain Maiden Park price was 4399$. Doing a quick comparison, we notice that Maiden Park price is 29.73% higher than the average cost of a Downhill bike.
Overview of components
Fork
The RockShox BoXXer is included from the factory. It has a travel distance of 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rocky Mountain Maiden Park bike has the Fox Van RC 200mm model installed, and has a travel of 200mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Maiden Park bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
