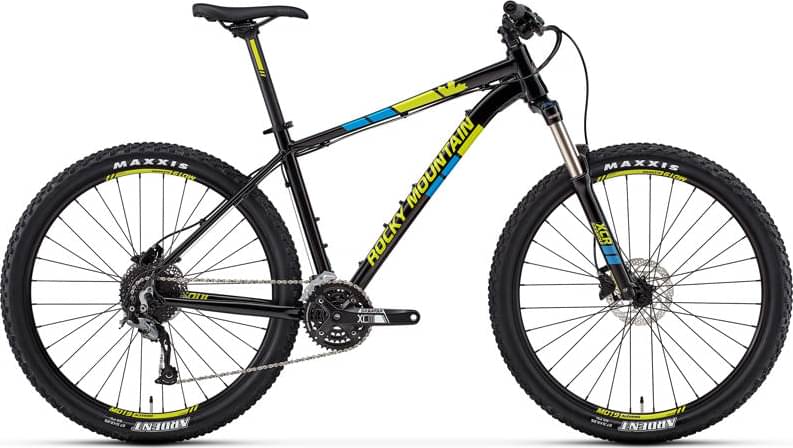

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR 32
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube
Suspension Fork
Suntour XCR 32 LO 120mm
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano Acera
Shift Levers
Shimano Acera
Cassette
Shimano CS-200 11-36T
Crank
Suntour XCM 40/30/22T
Bottom Bracket
SR Suntour Sealed Cartridge Bearing
Chain
KMC X9
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano TX505
Rims
Alex MD19
Spokes
2.0 Stainless
Tires
Maxxis Ardent 27.5 x 2.25 / Maxxis Ardent 27.5 x 2.25
Brakes
Brakes
Shimano M315
Cockpit
Stem
Rocky Mountain AM
Handlebar
Rocky Mountain AM 760mm
Grips
Rocky Mountain Lock On Light
Headset
FSA No. 57B-1
Seat
Saddle
WTB Volt
Seatpost
Rocky Mountain SL 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.61 mm | 1.5 mm | 1.45 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 307 mm | 307 mm | 307 mm |
| Front Center | 643 mm | 670 mm | 695 mm | 721 mm | 742 mm | 769 mm |
| Rake | 52 mm | 53 mm | 52 mm | 54 mm | 52 mm | 54 mm |
| Trail | 94 mm | 93 mm | 94 mm | 92 mm | 94 mm | 92 mm |
| Stack | 571 mm | 595 mm | 595 mm | 604 mm | 614 mm | 624 mm |
| Reach | 354 mm | 370 mm | 396 mm | 417 mm | 435 mm | 456 mm |
| Top Tube Length | 529 mm | 554 mm | 579 mm | 604 mm | 624 mm | 649 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 430 mm | 457 mm | 483 mm | 521 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1057 mm | 1085 mm | 1110 mm | 1136 mm | 1157 mm | 1184 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 764 mm | 799 mm | 802 mm | 811 mm | 824 mm | 841 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Soul 20 is part of the Rockymountain Soul model. Rocky Mountain released 39 bikes variations of this model so far. You can easily view all of the Rockymountain Soul bikes models from 2018, here.
Model range prices
Rocky Mountain Soul 10 2018 is the most economical model, with a starting price of 599$. Rocky Mountain Soul 20 2018 on the other hand costs 769$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 769$. Comparing the average cost of a Trail bike to this one, you will see that Soul 20 price is 259.17% lower.
Overview of components
Fork
This bike has the SunTour XCR 32 fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Soul 20 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rocky Mountain Soul 20 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
