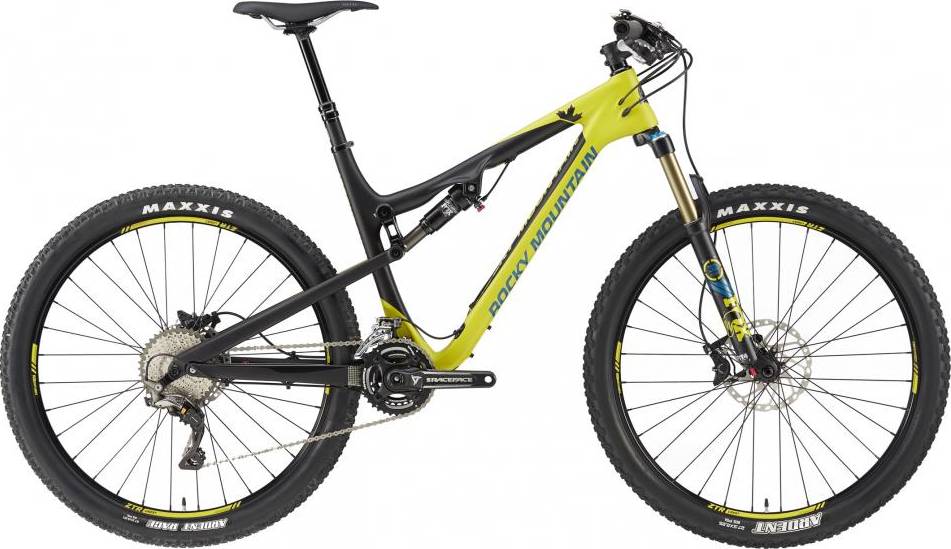

Rocky Mountain Thunderbolt 770 MSL 2016
2016 Mountain
Estimate price |
5,499$
Weight | 12.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Float 32
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smoothwall Carbon. BC2 Pivots & Grease Ports. Pipelock Main Pivot. Press Fit BB. RIDE-9 Adjustable Geometry & Suspension Rate. Di2 Ready.
Suspension Fork
Fox 32 Float Fit4 Adjust. 120mm. Rebound / Firm - Medium - Adjustable Open Settings / Tapered Steerer
Rear Shock
Fox Float DPS Remote Custom Valved. SmoothLink Design 120mm. Rebound / Remote Firm - Medium - Open Settings
Drivetrain
Rear Derailleur
Shimano XTR Shadow Plus Direct Mount 11spd
Front Derailleur
Shimano XT E-Type Mount 2x11spd
Shift Levers
Shimano XT Rapid Fire I-Spec II 2x11spd
Cassette
Shimano XT 11-40T 11spd
Crank
Race Face Turbine Cinch 170-175mm 38/28T 2x11spd
Bottom Bracket
Race Face Cinch 30mm BB92 Pressfit
Chain
Shimano XT 11spd
Wheels
Front Hub
Shimano XT / Centerlock / 32H / 15mm Axle
Rear Hub
Shimano XT / Centerlock / 32H / 12 x 142mm Axle
Rims
Stan\'s ZTR Crest Incl Tubeless Kit
Spokes
WTB 2.0-1.8 Butted
Tires
Maxxis Folding F: Ardent 27.5\" x 2.25\" R: Ardent Race 27.5\" x 2.2\"
Brakes
Brakes
Shimano XT Hydraulic Disc 180mm
Brake Levers
Shimano XT I-Spec II Shifter Mount
Cockpit
Stem
RMB 35mm 7° x 60-80mm
Handlebar
Race Face Turbine 1/2 Rise 35mm x 740mm x 9° Sweep
Grips
Rocky Mountain Lock On XC
Headset
FSA Orbit C-40: IS42mm Top / 52mm Bottom Tapered
Seat
Saddle
WTB Silverado Race
Seatpost
RockShox Reverb Stealth 30.9mm x 355-420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.34 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 652 mm | 679 mm | 705 mm | 731 mm | 763 mm |
| Rake | 53 mm | 54 mm | 54 mm | 53 mm | 53 mm |
| Trail | 92 mm | 91 mm | 91 mm | 92 mm | 92 mm |
| Stack | 542 mm | 551 mm | 560 mm | 570 mm | 584 mm |
| Reach | 374 mm | 396 mm | 418 mm | 441 mm | 467 mm |
| Top Tube Length | 538 mm | 563 mm | 588 mm | 613 mm | 643 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 483 mm | 521 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1071 mm | 1098 mm | 1124 mm | 1150 mm | 1182 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 694 mm | 694 mm | 694 mm | 694 mm | 694 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Thunderbolt 770 MSL completes the Rockymountain Thunderbolt model. There are 53 bikes that carry this model name. You can get a glimpse at all models from 2016, by clicking on this link.
Model range prices
The most economical model, the Rocky Mountain Thunderbolt 710 2016 has a starting price of 1999$. Rocky Mountain Thunderbolt 799 MSL 2016 on the other hand is the most expensive at 11499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5499$. If we compare this with the average Trail bike cost we notice that the price is 99.09% higher.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Thunderbolt 770 MSL weighs 12.6 kg (27.78 lbs) and is slightly lighter than the average. In short, the average Trail bike weight is 3.02% higher than this one.
Overview of components
Fork
Rocky Mountain Thunderbolt 770 MSL 2016 bike is equipped with the Fox Float 32 fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Remote Custom Valved. rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Thunderbolt 770 MSL bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Thunderbolt 770 MSL comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
The Rocky Mountain model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
