Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Silver TK
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 SL Series Custom Hydroformed Alloy. Threaded BB. Tapered Zerostack Headtube.
Suspension Fork
RockShox Recon Silver TK 29. 100mm (XS: 80mm). Turnkey Lockout / Rebound
Drivetrain
Rear Derailleur
Shimano SLX Shadow 10spd
Front Derailleur
Shimano Deore 31.8mm 10spd
Shift Levers
Shimano Deore Rapid Fire 10spd
Cassette
Shimano HG50 11-36T 10spd
Crank
Shimano M615 170-175mm 38/24T 2x10spd
Bottom Bracket
Shimano SM-BB52 2 Piece
Chain
Shimano HG54 10spd
Wheels
Front Hub
Shimano RM33 / Centerlock / 32H
Rear Hub
Shimano RM33 / Centerlock / 32H
Rims
Wheeltech SX19 By WTB Rims
Spokes
Stainless
Tires
Schwalbe Rapid Rob 29\" x 2.1\"
Brakes
Brakes
Shimano M446 Hydraulic Disc 160mm
Brake Levers
Shimano M446
Cockpit
Stem
Rocky Mountain L7 7° x 60-90mm
Handlebar
Rocky Mountain Zero9 Flat 31.8mm x 720mm x 9° Sweep
Grips
Rocky Mountain XC Kraton
Headset
FSA #57 Internal: ZS44 | ZS56mm
Seat
Saddle
WTB Volt
Seatpost
Rocky Mountain L2B 27.2mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.61 mm | 1.51 mm | 1.48 mm | 1.45 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 637 mm | 630 mm | 652 mm | 676 mm | 699 mm |
| Rake | 53 mm | 44 mm | 43 mm | 42 mm | 43 mm |
| Trail | 83 mm | 88 mm | 89 mm | 90 mm | 89 mm |
| Stack | 603 mm | 621 mm | 620 mm | 634 mm | 648 mm |
| Reach | 382 mm | 386 mm | 410 mm | 429 mm | 446 mm |
| Top Tube Length | 556 mm | 576 mm | 598 mm | 621 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 70.25 ° | 70.25 ° | 70.25 ° | 70.25 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1084 mm | 1077 mm | 1099 mm | 1123 mm | 1146 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 725 mm | 744 mm | 758 mm | 782 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

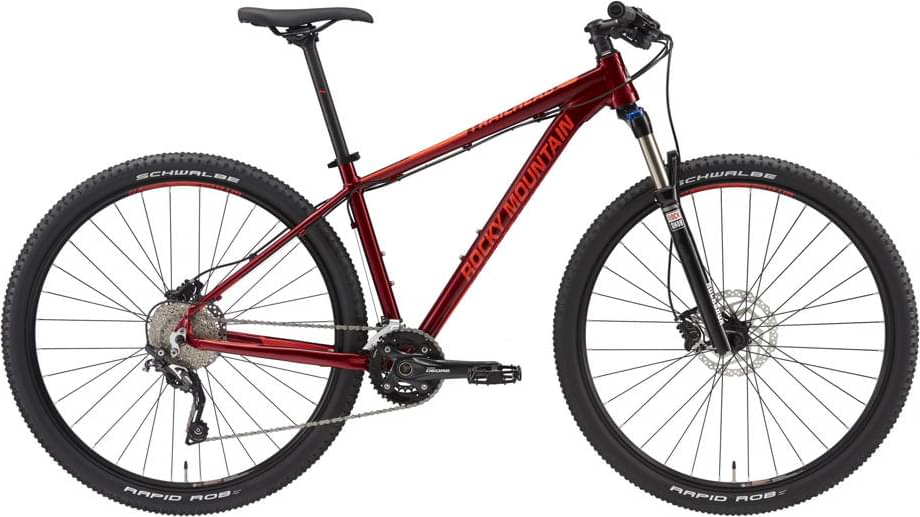

Trailhead 940 is part of the Rockymountain Trailhead model. 6 bikes variations carry this model name so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 13.3 kg (29.32 lbs), Rocky Mountain bike is a bit heavier than average. In other words, this model is 7.26% heavier than the average Crosscountry bike.
Overview of components
Fork
Rocky Mountain Trailhead 940 2016 bike is equipped with the RockShox Recon Silver TK fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Trailhead 940 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trailhead 940 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
