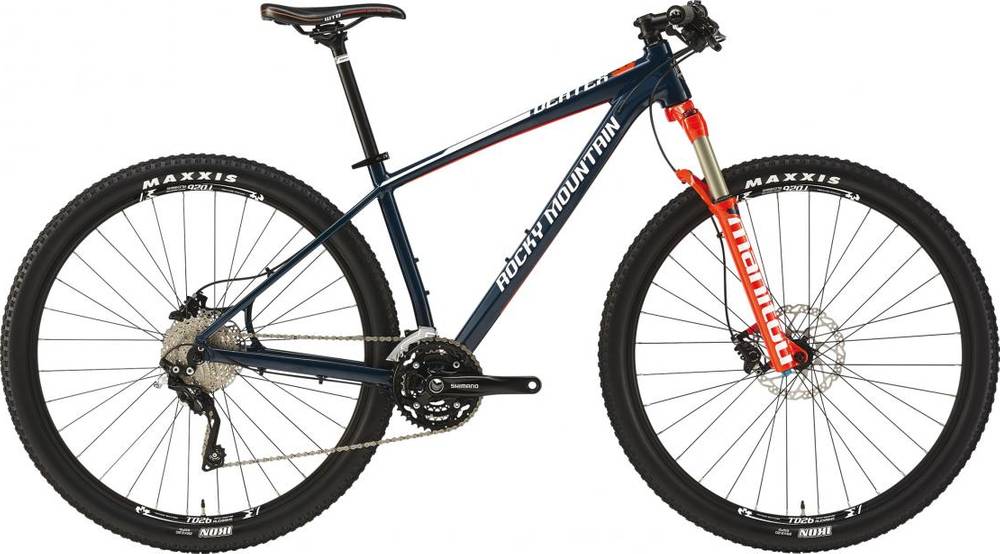

Rocky Mountain Vertex 930 2015
2015 Mountain
Estimate price |
1,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain FORM™ Series Custom Hydroformed Alloy. Press Fit BB. Zero Stack Tapered Headtube. Internal Cable Routing
Suspension Fork
Manitou Marvel Comp TS Air. 100mm (XS: 80mm). Compression / Lockout / Rebound / Tapered Steerer
Drivetrain
Rear Derailleur
Shimano XT 10spd
Front Derailleur
Shimano Deore 31.8mm 10spd
Shift Levers
Shimano Deore Rapid Fire 10spd
Cassette
Shimano HG50 11-36T 10spd
Crank
Shimano M552 170-175mm 42/32/24T 10spd
Bottom Bracket
Shimano SMBB71 Press Fit
Chain
Shimano HG54 10spd
Wheels
Front Hub
Shimano RM66 / Centerlock / 32H
Rear Hub
Shimano RM66 / Centerlock / 32H
Rims
Wheeltech TD26 by Alex Rims
Spokes
Stainless
Tires
Maxxis Ikon Folding 29\" x 2.2\"
Brakes
Brakes
Shimano BR-M446 Hydraulic Disc 180/160mm
Brake Levers
Shimano BL-M446
Cockpit
Stem
Rocky Mountain L7 7° x 70-100mm
Handlebar
Rocky Mountain Zero9 Flat Ø31.8mm x 700mm x 9° Sweep
Grips
Rocky Mountain XC Kraton
Headset
Cane Creek Fifteen Series: ZS44mm Top / ZS56mm Bottom Tapered
Seat
Saddle
WTB Volt
Seatpost
Rocky Mountain SL 27.2 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm | 1.48 mm | 1.45 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 638 mm | 660 mm | 683 mm | 707 mm |
| Rake | 50 mm | 50 mm | 49 mm | 50 mm |
| Trail | 81 mm | 81 mm | 82 mm | 81 mm |
| Stack | 600.9 mm | 605.7 mm | 619.8 mm | 633.9 mm |
| Reach | 378.4 mm | 399 mm | 417.7 mm | 436.4 mm |
| Top Tube Length | 564 mm | 586 mm | 609 mm | 632 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 70.25 ° | 70.25 ° | 70.25 ° | 70.25 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1059 mm | 1081 mm | 1104 mm | 1128 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 732 mm | 746 mm | 770 mm | 802 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Vertex 930 completes the Rockymountain Vertex model. There are 67 bikes that carry this model name. You can get a glimpse at all models from 2015, by clicking on this link.
Model range prices
The most economical model, the Rocky Mountain Vertex 930 2015 has a starting price of 1499$. Rocky Mountain Vertex 990 RSL 2015 on the other hand is the most expensive at 4899$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1499$. If we compare this with the average Crosscountry bike cost we notice that the price is 27.08% smaller.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Vertex 930 components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Vertex 930 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Vertex 930 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Rocky Mountain Vertex 930 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
