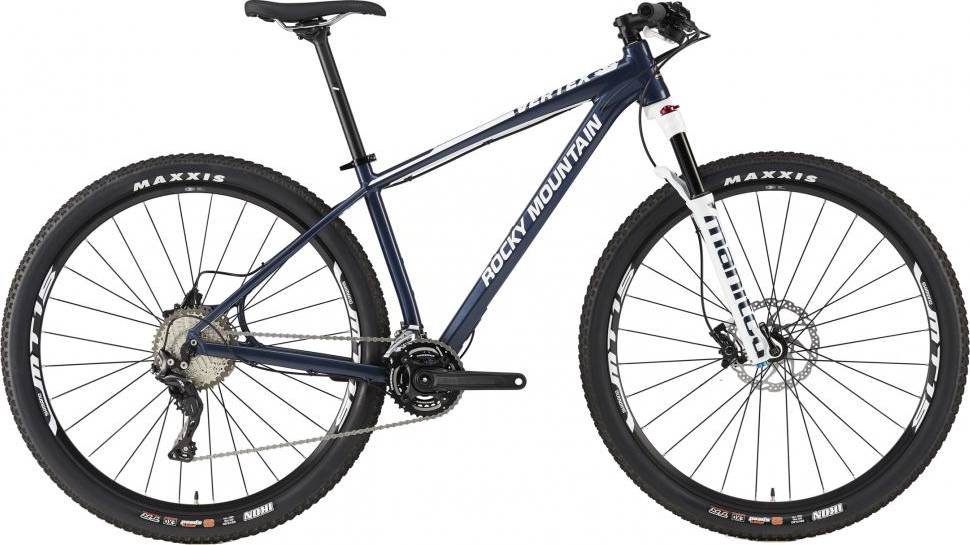

Rocky Mountain Vertex 950 2016
2016 Mountain
Estimate price |
1,999$
Weight | 12.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Race Face -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FORM Custom Hydroformed Alloy. Press Fit BB. Zero Stack Tapered Headtube. Internal Cable Routing
Suspension Fork
Manitou Marvel Pro. 100mm (XS: 80mm). TPC Absolute+ Damper / Compression / Lockout / Rebound / Tapered Steerer
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus 11spd
Front Derailleur
Shimano XT 31.8mm 2x11spd
Shift Levers
Shimano XT Rapid Fire 2x11spd
Cassette
Shimano XT 11-40T 11spd
Crank
Race Face Aeffect SL Cinch 170-175mm 38/28T 2x11spd
Bottom Bracket
Race Face Press Fit Team XC
Chain
Shimano XT 11spd
Wheels
Front Hub
Shimano MT15 / Centerlock / 28H / 15mm Axle
Rear Hub
Shimano MT15 / Centerlock / 28H / 10 x 135mm QR
Rims
Shimano MT15
Spokes
Shimano Stainless
Tires
Maxxis Ikon Maxx Speed Tubeless Ready 29\" x 2.2\"
Brakes
Brakes
Shimano M615 Hydraulic Disc 180/160mm
Brake Levers
Shimano M615
Cockpit
Stem
RMB 7° x 70-90mm
Handlebar
Rocky Mountain Zero9 Flat 31.8mm x 700mm x 9° Sweep
Grips
Rocky Mountain XC Kraton
Headset
FSA Orbit NO.57E: ZS44mm Top / ZS56mm Bottom Tapered
Seat
Saddle
WTB Volt Race
Seatpost
Rocky Mountain SL 27.2 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.57 mm | 1.5 mm | 1.47 mm | 1.44 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 639 mm | 638 mm | 660 mm | 684 mm | 707 mm |
| Rake | 53 mm | 51 mm | 50 mm | 50 mm | 50 mm |
| Trail | 83 mm | 80 mm | 81 mm | 81 mm | 81 mm |
| Stack | 593 mm | 613 mm | 618 mm | 632 mm | 646 mm |
| Reach | 387 mm | 390 mm | 411 mm | 430 mm | 448 mm |
| Top Tube Length | 556 mm | 576 mm | 598 mm | 621 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 70.25 ° | 70.25 ° | 70.25 ° | 70.25 ° |
| Head Tube Length | 100 mm | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1074 mm | 1071 mm | 1093 mm | 1117 mm | 1140 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 725 mm | 744 mm | 758 mm | 782 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Vertex 950 completes the Rockymountain Vertex model. There are 67 bikes that carry this model name. Check out the entire range from 2016 of this model, by clicking this link.
Model range prices
Rocky Mountain Vertex 20 2016 is the most affordable bike of this model and has a price of 729$. On the other hand, Rocky Mountain Vertex 990 RSL 2016, is the most expensive and costs 4799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Rocky Mountain Vertex 950 price was 1999$. Comparing this to the average Crosscountry bike price, we see that the price is 4.93% higher.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, Vertex 950 has a weight of 12.1 kg (26.68 lbs). In conclusion, the average Crosscountry bike weighs 2.48% more than Vertex 950.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Vertex 950 components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Rocky Mountain Vertex 950 2016, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Vertex 950 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
