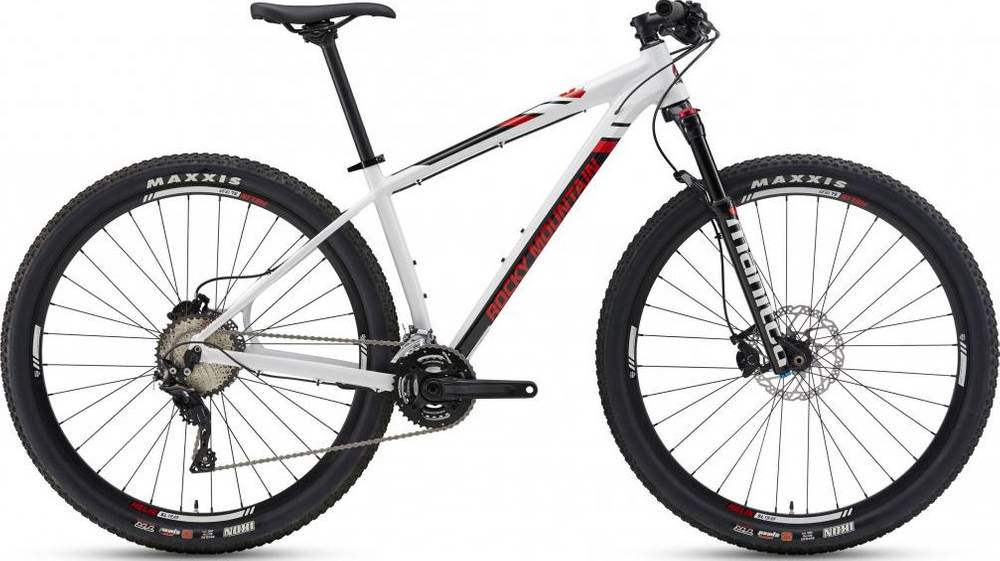

Rocky Mountain Vertex 950 2017
2017 Mountain
Estimate price |
1,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Race Face -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 SL Series Custom Hydroformed Alloy. Press Fit BB. Zero Stack Tapered Headtube. Internal Cable Routing
Suspension Fork
Manitou Marvel Pro 100mm (XS: 80mm). Tooled Hexlock SL
Drivetrain
Rear Derailleur
Shimano XT
Front Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano XT 11-40T
Crank
Race Face Aeffect SL Cinch 38/28T
Bottom Bracket
Race Face BB92 Press Fit
Chain
Shimano HG-600
Wheels
Front Hub
Shimano M618 15mm
Rear Hub
Shimano M615 QR
Rims
Sun Helix SL TR27 Tubeless Compatible
Spokes
WTB 1.8-1.6
Tires
Maxxis Ikon Maxx Speed Tubeless Ready 29 x 2.2
Brakes
Brakes
Shimano SLX 180/160mm
Brake Levers
Shimano SLX
Cockpit
Stem
Rocky Mountain AM
Handlebar
Rocky Mountain XC Flat 720mm
Grips
Rocky Mountain Lock On Light
Headset
FSA Orbit NO.57E
Seat
Saddle
WTB Volt Race
Seatpost
Rocky Mountain SL 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.57 mm | 1.5 mm | 1.47 mm | 1.44 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 639 mm | 638 mm | 660 mm | 684 mm | 707 mm |
| Rake | 53 mm | 51 mm | 50 mm | 50 mm | 50 mm |
| Trail | 83 mm | 80 mm | 81 mm | 81 mm | 81 mm |
| Stack | 593 mm | 613 mm | 618 mm | 632 mm | 646 mm |
| Reach | 387 mm | 390 mm | 411 mm | 430 mm | 448 mm |
| Top Tube Length | 556 mm | 576 mm | 598 mm | 621 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 70.25 ° | 70.25 ° | 70.25 ° | 70.25 ° |
| Head Tube Length | 100 mm | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1074 mm | 1071 mm | 1093 mm | 1117 mm | 1140 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 725 mm | 744 mm | 758 mm | 782 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Vertex 950 is part of the Rockymountain Vertex model. Rocky Mountain released 67 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
The most economical model, the Rocky Mountain Vertex 20 2017 has a starting price of 689$. Rocky Mountain Vertex 990 RSL 2017 on the other hand is the most expensive at 4699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2017 and its price was 1999$. Comparing the average cost of a Crosscountry bike to this one, you will see that Vertex 950 price is 4.93% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Vertex 950 components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Vertex 950 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Vertex 950 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Vertex 950 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
