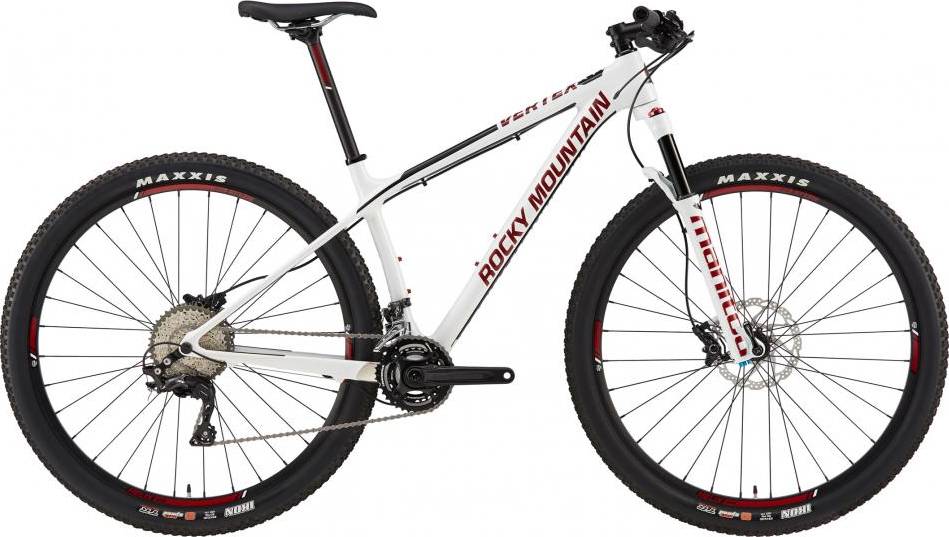

Rocky Mountain Vertex 950 RSL 2016
2016 Mountain
Estimate price |
2,699$
Weight | 11.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Race Face -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smoothwall Carbon. Press Fit BB. Internal Cable Routing.
Suspension Fork
Manitou Marvel Pro. 100mm. TPC Absolute+ Damper / Compression / Lockout / Rebound / Tapered Steerer
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus Direct Mount 11spd
Front Derailleur
Shimano XT 34.9mm 2x11spd
Shift Levers
Shimano XT Rapid Fire 2x11spd
Cassette
Shimano XT 11-40T 11spd
Crank
Race Face Aeffect SL Cinch 170-175mm 38/28T 2x11spd
Bottom Bracket
Race Face Press Fit Team XC
Chain
Shimano XT 11spd
Wheels
Front Hub
Shimano Deore / Centerlock / 32H / 15mm Axle
Rear Hub
Shimano Deore / Centerlock / 32H / 12 x 142mm Axle
Rims
Wheeltech Helix TR25 Tubeless Compatible by SUNringlé
Spokes
WTB 2.0-1.8 Butted
Tires
Maxxis Ikon Maxx Speed Tubeless Ready 29\" x 2.2\"
Brakes
Brakes
Shimano M615 Hydraulic Disc 180/160mm
Brake Levers
Shimano M615
Cockpit
Stem
RMB 7° x 70-90mm
Handlebar
Rocky Mountain Zero9 Flat 31.8mm x 700mm x 9° Sweep
Grips
Rocky Mountain XC Kraton
Headset
FSA Orbit C-40: IS42mm Top / 52mm Bottom Tapered
Seat
Saddle
WTB Volt Race
Seatpost
Rocky Mountain SL 27.2 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.57 mm | 1.5 mm | 1.47 mm | 1.44 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 639 mm | 638 mm | 660 mm | 684 mm | 707 mm |
| Rake | 53 mm | 51 mm | 50 mm | 50 mm | 50 mm |
| Trail | 83 mm | 80 mm | 81 mm | 81 mm | 81 mm |
| Stack | 593 mm | 613 mm | 618 mm | 632 mm | 646 mm |
| Reach | 387 mm | 390 mm | 411 mm | 430 mm | 448 mm |
| Top Tube Length | 556 mm | 576 mm | 598 mm | 621 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 70.25 ° | 70.25 ° | 70.25 ° | 70.25 ° |
| Head Tube Length | 100 mm | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1074 mm | 1071 mm | 1093 mm | 1117 mm | 1140 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 725 mm | 744 mm | 758 mm | 782 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Vertex 950 RSL is a Rockymountain Vertex model. Rocky Mountain launched 67 bikes of this model so far. You can easily view all of the Rockymountain Vertex bikes models from 2016, here.
Model range prices
Rocky Mountain Vertex 20 2016 is the most economical model, with a starting price of 729$. Rocky Mountain Vertex 990 RSL 2016 on the other hand costs 4799$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Rocky Mountain released this model in 2016, its price was 2699$. Comparing this to the average Crosscountry bike price, we see that the price is 41.68% more expensive.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 11.2 kg (24.69 lbs), the Vertex 950 RSL model is considerably lighter than average. In conclusion, the average Crosscountry bike weighs 10.71% more than Vertex 950 RSL.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Manitou is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Vertex 950 RSL bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Vertex 950 RSL has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Vertex 950 RSL comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
