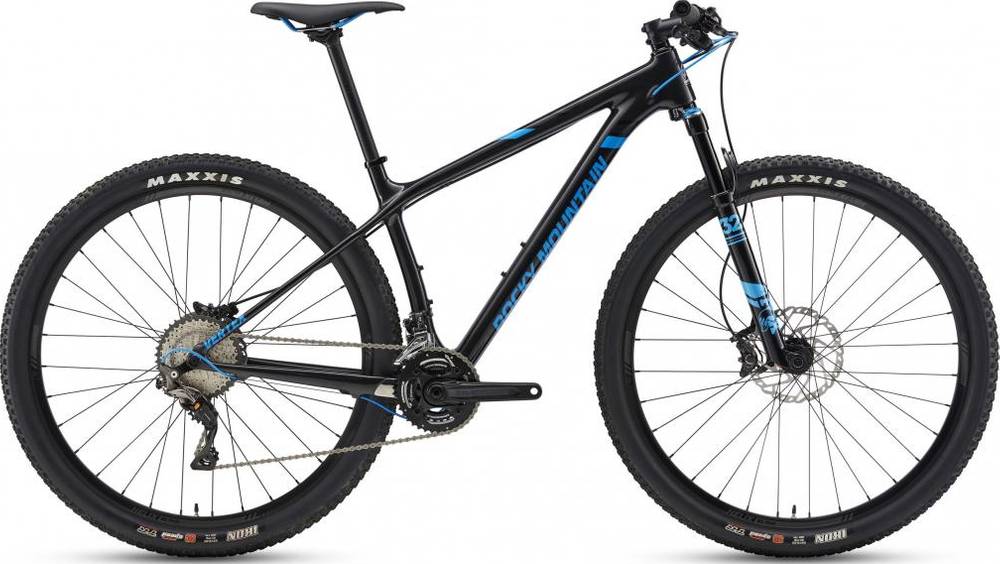

Rocky Mountain Vertex 970 RSL 2017
2017 Mountain
Estimate price |
3,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XTR, Race Face -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SMOOTHWALL™ Carbon C13. Press Fit BB. Internal Cable Routing.
Suspension Fork
Fox 32 Step Cast Performance 100mm
Drivetrain
Rear Derailleur
Shimano XTR Direct Mount
Front Derailleur
Shimano XT 34.9mm
Shift Levers
Shimano XT
Cassette
Shimano XT 11-40T
Crank
Race Face Aeffect SL Cinch 38/28T
Bottom Bracket
Race Face BB92 Press Fit
Chain
Shimano HG-700
Wheels
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
SUNringlé SRC 142mm
Rims
Sun Helix SL TR25 Tubeless Compatible
Spokes
WTB 1.8-1.6
Tires
Maxxis Ikon Maxx Speed Tubeless Ready 29 x 2.2
Brakes
Brakes
Shimano XT 180/160mm
Brake Levers
Shimano XT I-Spec II
Cockpit
Stem
Rocky Mountain AM
Handlebar
Rocky Mountain XC Flat 720mm
Grips
Rocky Mountain Lock On XC
Headset
FSA Orbit C-40
Seat
Saddle
WTB Silverado Race
Seatpost
Rocky Mountain SL 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.57 mm | 1.5 mm | 1.47 mm | 1.44 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 639 mm | 638 mm | 660 mm | 684 mm | 707 mm |
| Rake | 53 mm | 51 mm | 50 mm | 50 mm | 50 mm |
| Trail | 83 mm | 80 mm | 81 mm | 81 mm | 81 mm |
| Stack | 593 mm | 613 mm | 618 mm | 632 mm | 646 mm |
| Reach | 387 mm | 390 mm | 411 mm | 430 mm | 448 mm |
| Top Tube Length | 556 mm | 576 mm | 598 mm | 621 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 70.25 ° | 70.25 ° | 70.25 ° | 70.25 ° |
| Head Tube Length | 100 mm | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1074 mm | 1071 mm | 1093 mm | 1117 mm | 1140 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 725 mm | 744 mm | 758 mm | 782 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Vertex 970 RSL is a Rockymountain Vertex model. Rocky Mountain launched 67 bikes of this model so far. Take a sneak peek at all Rockymountain Vertex bikes models from 2017, by clicking here.
Model range prices
Rocky Mountain Vertex 20 2017 is the cheapest bike model and costs 689$. Rocky Mountain Vertex 990 RSL 2017 is the most expensive one and costs 4699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Rocky Mountain Vertex 970 RSL price was 3199$. Comparing the average cost of a Crosscountry bike to this one, you will see that Vertex 970 RSL price is 67.93% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Vertex 970 RSL are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Vertex 970 RSL has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
