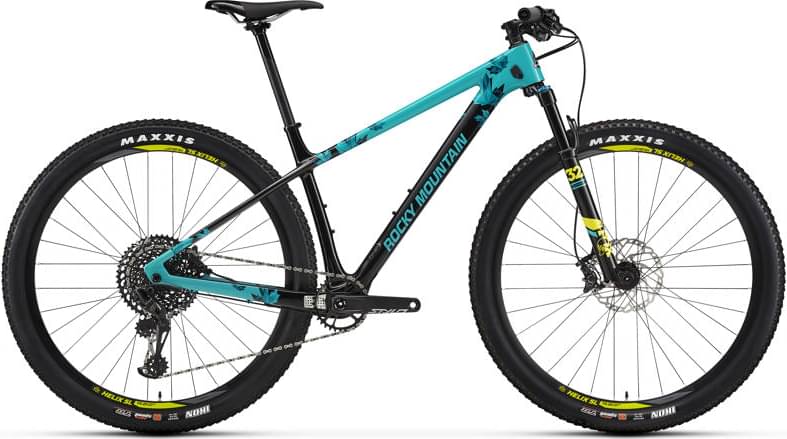

Rocky Mountain Vertex Carbon 70 2019
2019 Mountain
Estimate price |
3,449$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SMOOTHWALL™ Carbon. Press Fit BB. Internal Cable Routing. 27.2mm Dropper Post Compatible
Suspension Fork
Fox 32 Step Cast Performance 100mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG-1275 10-50T
Crank
SRAM Stylo 6k Eagle 32T
Bottom Bracket
SRAM BB92 DUB
Chain
SRAM GX Eagle
Wheels
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
DT Swiss 370 Boost 148mm
Rims
Sun Helix TR25 SL Tubeless Compatible - Tape | Valves | Sealant Not Incl
Spokes
WTB 1.8-1.6
Tires
Maxxis Ikon Maxx Speed 3C Tubeless Ready 29 x 2.2 / Maxxis Ikon Maxx Speed 3C Tubeless Ready 29 x 2.2
Brakes
Brakes
Shimano XT / Shimano RT66 180mm / Shimano RT66 180mm
Brake Levers
Shimano XT
Cockpit
Stem
Rocky Mountain 35 AM
Handlebar
Race Face Turbine 760mm
Grips
Rocky Mountain Lock On Light
Headset
FSA Orbit NO.57E
Seat
Saddle
WTB Silverado Race
Seatpost
Rocky Mountain SL 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.55 mm | 1.47 mm | 1.47 mm | 1.43 mm | 1.43 mm | 1.4 mm | 1.4 mm |
| Bottom Bracket Height | 314 mm | 295 mm | 314 mm | 295 mm | 314 mm | 295 mm | 314 mm | 295 mm |
| Front Center | 653 mm | 653 mm | 678 mm | 678 mm | 704 mm | 704 mm | 730 mm | 730 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 83 mm | 76 mm | 83 mm | 76 mm | 83 mm | 76 mm | 83 mm | 76 mm |
| Stack | 595.9 mm | 595.9 mm | 600.56 mm | 600.56 mm | 614.6 mm | 614.6 mm | 628.66 mm | 628.66 mm |
| Reach | 384.6 mm | 384.6 mm | 408.2 mm | 408.2 mm | 428.9 mm | 428.9 mm | 449.6 mm | 449.6 mm |
| Top Tube Length | 568.7 mm | 568.7 mm | 593.7 mm | 593.7 mm | 618.7 mm | 618.7 mm | 643.7 mm | 643.7 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 393.7 mm | 393.7 mm | 431.8 mm | 431.8 mm | 469.9 mm | 469.9 mm | 508 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 95 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1069 mm | 1069 mm | 1094 mm | 1094 mm | 1120 mm | 1120 mm | 1146 mm | 1146 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 819 mm | 805 mm | 819 mm | 805 mm | 819 mm | 805 mm | 819 mm | 805 mm |
| Wheels | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
About this model
Vertex Carbon 70 belongs to the Rockymountain Vertex model. Rocky Mountain launched 67 bikes of this model so far. Take a sneak peek at all Rockymountain Vertex bikes models from 2019, by clicking here.
Model range prices
Rocky Mountain Vertex Jr 20 2019 is the cheapest bike model and costs 749$. Rocky Mountain Vertex Carbon 90 2019 is the most expensive one and costs 5399$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3449$. Comparing the average cost of a Crosscountry bike to this one, you will see that Vertex Carbon 70 price is 81.05% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Vertex Carbon 70 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Rocky Mountain Vertex Carbon 70 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
