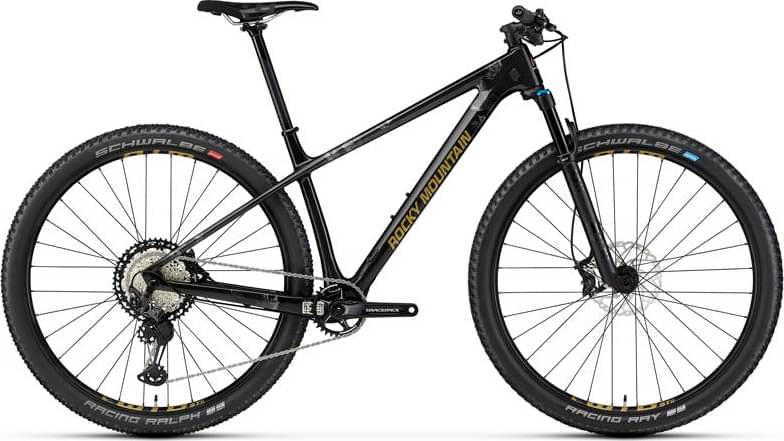

Rocky Mountain Vertex Carbon 70 2020
2020 Mountain
Estimate price |
3,399$
Weight | 10.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT, Race Face -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SMOOTHWALL Carbon. Press Fit BB. Internal Cable Routing. 27.2mm Dropper Post Compatible
Suspension Fork
Fox 32 Step Cast Performance 100mm
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano XT 10-51T
Crank
Race Face Aeffect Cinch 32T
Bottom Bracket
Shimano SM-BB71
Chain
Shimano HG8100
Wheels
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
DT Swiss 370 Boost 148mm
Rims
WTB ST Light i25 TCS 2.0 Tubeless
Spokes
DT Swiss Competition 1.8/1.6/1.8
Tires
Schwalbe Racing Ray 29 x 2.25 Evo Snakeskin / Schwalbe Racing Ralph 29 x 2.25 Evo Snakeskin
Brakes
Brakes
Shimano XT 2 Piston / Shimano RT66 180mm / Shimano RT66 180mm
Brake Levers
Shimano XT
Cockpit
Stem
Rocky Mountain AM
Handlebar
Rocky Mountain Flat Top 760mm
Grips
Rocky Mountain Lock On Light
Headset
FSA Orbit NO.57E
Seat
Saddle
WTB Silverado Race 142
Seatpost
Rocky Mountain SL 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.55 mm | 1.47 mm | 1.47 mm | 1.43 mm | 1.43 mm | 1.4 mm | 1.4 mm |
| Bottom Bracket Height | 314 mm | 295 mm | 314 mm | 295 mm | 314 mm | 295 mm | 314 mm | 295 mm |
| Front Center | 653 mm | 653 mm | 678 mm | 678 mm | 704 mm | 704 mm | 730 mm | 730 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 83 mm | 76 mm | 83 mm | 76 mm | 83 mm | 76 mm | 83 mm | 76 mm |
| Stack | 596.2 mm | 596.2 mm | 600.86 mm | 600.86 mm | 614.9 mm | 614.9 mm | 628.96 mm | 628.96 mm |
| Reach | 384.9 mm | 384.9 mm | 408.5 mm | 408.5 mm | 429.2 mm | 429.2 mm | 449.9 mm | 449.9 mm |
| Top Tube Length | 569 mm | 569 mm | 594 mm | 594 mm | 619 mm | 619 mm | 644 mm | 644 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 394 mm | 432 mm | 432 mm | 470 mm | 470 mm | 508 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 95 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1070 mm | 1070 mm | 1095 mm | 1095 mm | 1121 mm | 1121 mm | 1147 mm | 1147 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 820 mm | 806 mm | 820 mm | 806 mm | 820 mm | 806 mm | 820 mm | 806 mm |
| Wheels | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
Model Overview
Vertex Carbon 70 belongs to the Rockymountain Vertex model. Rocky Mountain launched 67 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Rocky Mountain Vertex Jr 20 2020 is the most affordable bike of this model and has a price of 689$. On the other hand, Rocky Mountain Vertex Carbon 90 2020, is the most expensive and costs 5499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 3399$. In conclusion, this bike price is 78.43% more expensive than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 10.2 kg (22.49 lbs), the Vertex Carbon 70 model is much lighter than average. In other words, this model is 21.57% lighter than the average Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Vertex Carbon 70 components
Fork
This bike has the Fox Performance Float 32 fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Vertex Carbon 70 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Vertex Carbon 70 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
