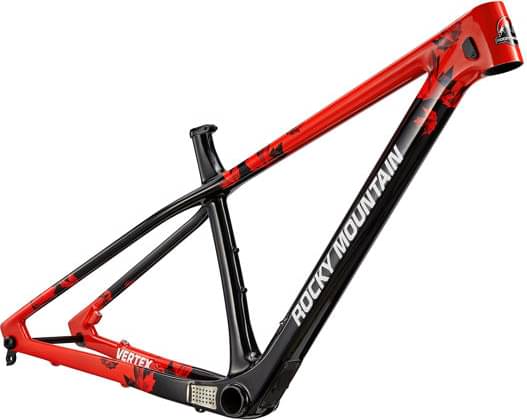

Rocky Mountain Vertex Carbon Frameset 2019
2019 Mountain
Estimate price |
1,849$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SMOOTHWALL™ Carbon Super Hi Mod. Press Fit BB. Internal Cable Routing. 27.2mm Dropper Post Compatible
Cockpit
Headset
FSA Orbit NO.57E Extend-o-matic
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.55 mm | 1.47 mm | 1.47 mm | 1.43 mm | 1.43 mm | 1.4 mm | 1.4 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 653 mm | 653 mm | 678 mm | 678 mm | 704 mm | 704 mm | 730 mm | 730 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 595.9 mm | 595.9 mm | 600.56 mm | 600.56 mm | 614.6 mm | 614.6 mm | 628.66 mm | 628.66 mm |
| Reach | 384.6 mm | 384.6 mm | 408.2 mm | 408.2 mm | 428.9 mm | 428.9 mm | 449.6 mm | 449.6 mm |
| Top Tube Length | 568.7 mm | 568.7 mm | 593.7 mm | 593.7 mm | 618.7 mm | 618.7 mm | 643.7 mm | 643.7 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 393.7 mm | 393.7 mm | 431.8 mm | 431.8 mm | 469.9 mm | 469.9 mm | 508 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 95 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1069 mm | 1069 mm | 1094 mm | 1094 mm | 1120 mm | 1120 mm | 1146 mm | 1146 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 819 mm | 805 mm | 819 mm | 805 mm | 819 mm | 805 mm | 819 mm | 805 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
About this model
Vertex Carbon Frameset is part of the Rockymountain Vertex model. 67 frames variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry frames
According to our calculations, the average cost of a Crosscountry frame that is reliable is 1689$. However, you could also get a good Crosscountry frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Rocky Mountain released this model in 2019, its price was 1849$. If we compare this with the average Crosscountry frame cost we notice that the price is 9.47% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
