Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain Butted 6061 Series Alloy. Semi-Integrated 1-1/8" Headtube. Internal Cable Routing. Rack and Fender Mounts
Suspension Fork
Suntour NVX HLO
Drivetrain
Rear Derailleur
Shimano Acera M3000
Front Derailleur
Shimano Altus M370
Shift Levers
Shimano Altus M2000
Cassette
Shimano HG200 11-34
Crank
Suntour XCM 170-175mm 48/36/26
Bottom Bracket
Suntour Sealed Cartridge
Chain
KMC X9
Pedals
FPD Nylon
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano TX505
Rims
WTB SX19
Spokes
Stainless
Tires
WTB Riddler Comp 700x37c
Brakes
Brakes
Shimano M315
Brake Levers
Shimano M315
Cockpit
Stem
Rocky Mountain XC 7°
Handlebar
Rocky Mountain 20mm Rise 740mm
Grips
Rocky Mountain Ergo Lock On
Headset
Threadless Semi Integrated
Seat
Saddle
WTB Volt
Seatpost
Rocky Mountain 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.56 mm | 1.53 mm | 1.54 mm | 1.55 mm |
| Front Center | 645 mm | 663 mm | 685 mm | 700 | 706 mm |
| Rake | 44 mm | 44 mm | 44 mm | 46 mm | 45 mm |
| Trail | 84 mm | 80 mm | 80 mm | 78 mm | 76 mm |
| Stack | 613 mm | 629 mm | 643 mm | 657 mm | 674 mm |
| Reach | 386 mm | 403 mm | 420 mm | 428 mm | 435 mm |
| Top Tube Length | 562 mm | 584 mm | 605 mm | 624 mm | 642 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° | 70.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1089 mm | 1107 mm | 1129 mm | 1144 mm | 1150 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

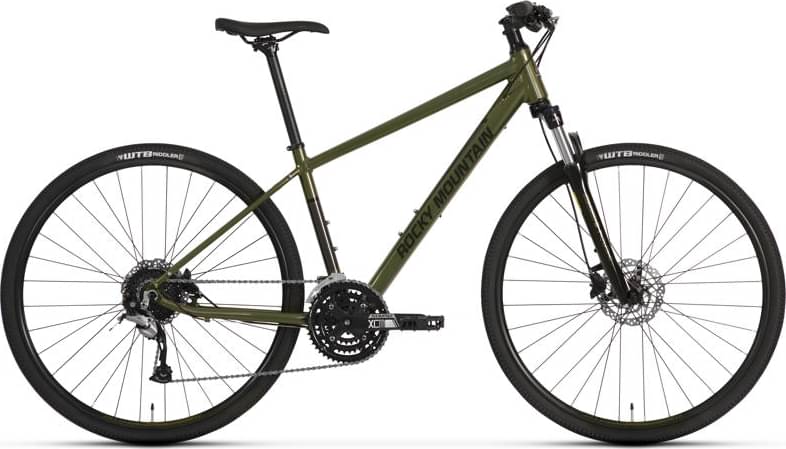

Model Overview
Whistler 30 is a Rockymountain Whistler model. 22 bikes variations carry this model name so far. Take a sneak peek at all Rockymountain Whistler bikes models from 2018, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Whistler 30 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Whistler 30 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Rocky Mountain Whistler 30 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
