Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650c -
Groupset Tiagra, 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RUUT CUSTOM FORMED AL6061-T6
Suspension Fork
TWINTIP CARBON
Drivetrain
Rear Derailleur
Shimano Tiagra RD4700
Front Derailleur
Shimano 105 FD-R7000
Shift Levers
Shimano Tiagra ST4720
Cassette
Shimano KSCHG500 11-32T 10 SPEED
Crank
FSA OMEGA COMPACT 48/32T
Bottom Bracket
PF86
Chain
Shimano HG500
Wheels
Front Hub
RONDO SUPERLIGHT SEALED BEARINGS
Rear Hub
RONDO SUPERLIGHT SEALED BEARINGS
Rims
RONDO Alu 584-23 TUBELESS COMPATIBLE* *tubeless tape, valve and sealant not included
Tires
WTB 650B X 47 BYWAY FRONT/HORIZON REAR
Brakes
Brakes
SHIMANO BR4770 HYDRAULIC BRAKES
Cockpit
Stem
RONDO 80MM(S), 90MM(M), 110MM(L), 110MM(XL)
Handlebar
Rondo Road 400MM(S), 420MM(M,L), 440MM(XL)
Grips
VELO COMFORT TAPE
Headset
UPPER STACK: IS 42 / 28,6 LOWER STACK: IS 52 / 40 SHIS
Seat
Saddle
FABRIC SCOOP FLAT
Seatpost
RONDO 350 X 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | MD | LG | LG | XL | XL | HI | LO |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.04 mm | 1.05 mm | 1 mm | 1.02 mm | 1 mm | 1.01 mm | 1.42 mm | 1.45 mm |
| Front Center | 787 mm | 780 mm | 811 mm | 805 mm | 833 mm | 830 mm | 567 mm | 565 mm |
| Stack | 578 mm | 581 mm | 588 mm | 591 mm | 605 mm | 608 mm | 528 mm | 532 mm |
| Reach | 556 mm | 551 mm | 586 mm | 582 mm | 606 mm | 601 mm | 371 mm | 366 mm |
| Seat Tube Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 490 mm | 490 mm |
| Head Tube Angle | 73 ° | 73.7 ° | 73 ° | 73.7 ° | 73 ° | 73.7 ° | 72.7 ° | 72 ° |
| Head Tube Length | 520 mm | 520 mm | 540 mm | 540 mm | 570 mm | 570 mm | 125 mm | 125 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 73 mm | 72 mm | 73 mm | 72 mm | 67 mm |
| Standover Height | 543 mm | 541 mm | 558 mm | 556 mm | 575 mm | 573 mm | 758 mm | 758 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
Model Overview

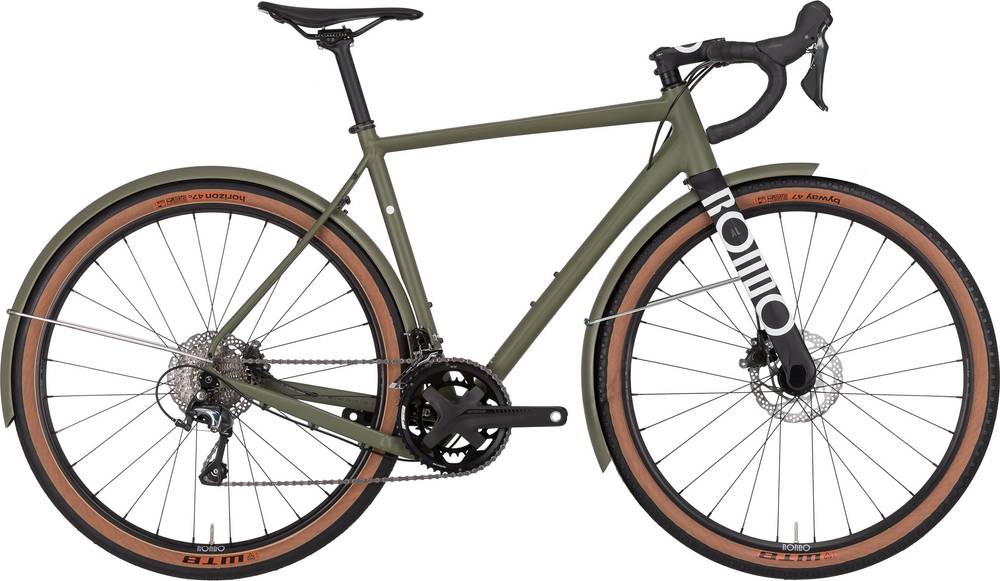

MUTT AL is a Rondo Mutt model. There are 5 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The MUTT AL 2020 bike is equipped with aluminum wheels when leaving the factory. The 650c wheels are smaller in diameter than 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
