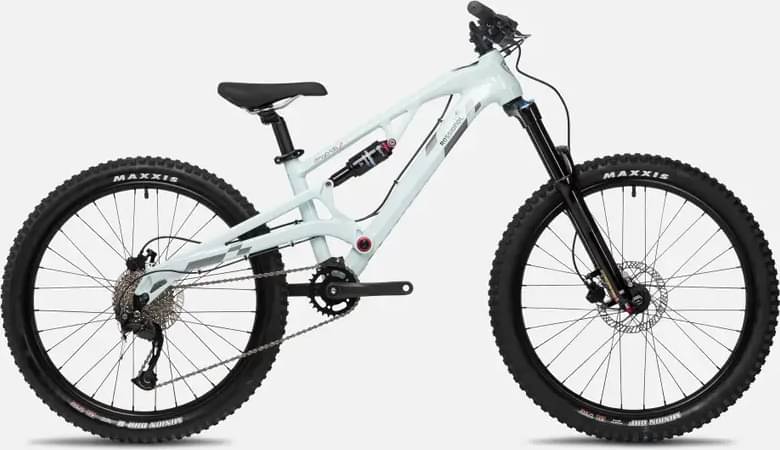

rossignol Mandate JR 24 2022
2022 Mountain
Estimate price |
1,499$
Weight | 13.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Suntour X1
-
Groupset Alivio -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rossignol Trail JR 120mm travel | 6061 Alloy
Suspension Fork
SR Suntour Raindon 32, LOR, 26", 15x100, 120mm
Rear Shock
SR Suntour Raidon R, 165x38, 22x8mm hardware
Drivetrain
Rear Derailleur
Shimano Alivio M3100, SGS
Shift Levers
Shimano Alivio M3100
Cassette
Shimano HG400, 11-34
Crank
Lasco, MTB Trail JR, 28T, 155mm
Bottom Bracket
Square taper
Chain
KMC X9
Chain Guide
Seat tube mounted guide
Pedals
MTB platform pedal
Wheels
Front Hub
Alex | J-bend, 6 bolt, 32h, TA 15x100
Rear Hub
Shimano M475 | J-bend, 6 bolt, 32h, QR 135
Rims
Shining DBX 25 with Shimano rear hub
Tires
Maxxis Minion DHF 24x 2.4
Brakes
Brakes
Hydraulic Disc
Brake Levers
Tektro M285
Cockpit
Stem
Rossignol JR MTB | 6061 Aluminum; 31.8Ø, 40mm
Handlebar
Rossignol JR MTB | 6061 Aluminum, 25mm rise, 620mm
Grips
Rossignol lock on, diamond design with waffle grip
Headset
FSA 43, 47cm: IS (IS-2) / 51, 54cm: IS (NO.44) / 56, 58, 61cm: IS (NO.42)
Seat
Saddle
MTB JR Trail saddle
Seatpost
Butted 6061, dual-bolt micro-adjust, Ø31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" | 24" |
|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.46 mm |
| Front Center | 574 mm | 622 mm |
| Rake | 37 mm | 37 mm |
| Stack | 477 mm | 515 mm |
| Reach | 322 mm | 353 mm |
| Top Tube Length | 464 mm | 501 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 260 mm | 310 mm |
| Head Tube Angle | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 115 mm |
| Chainstay Length | 341 mm | 411 mm |
| Wheelbase | 915 mm | 1033 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Wheels | 20" | 24" |
Model Overview
Mandate JR 24 completes the Rossignol Mandate model. Rossignol launched 13 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Rossignol Mandate UNO Balance Bike 2022 is the cheapest bike model and costs 139$. Rossignol Mandate XT 2022 is the most expensive one and costs 4399$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 1499$. In conclusion, this bike price is 84.26% lower than the price of the average Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Mandate JR 24 weighs 13.15 kg (28.99 lbs) and is slightly heavier than the average. In conclusion, the average Trail bike weighs 1.31% less than Mandate JR 24.
Mandate JR 24 components
Fork
Rossignol Mandate JR 24 2022 bike is equipped with the Suntour X1 fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Mandate JR 24 has a rear shock with a travel of 120mm. The model SR Suntour Raidon R is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Rossignol Mandate JR 24 2022, has a 20″ aluminum model. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
