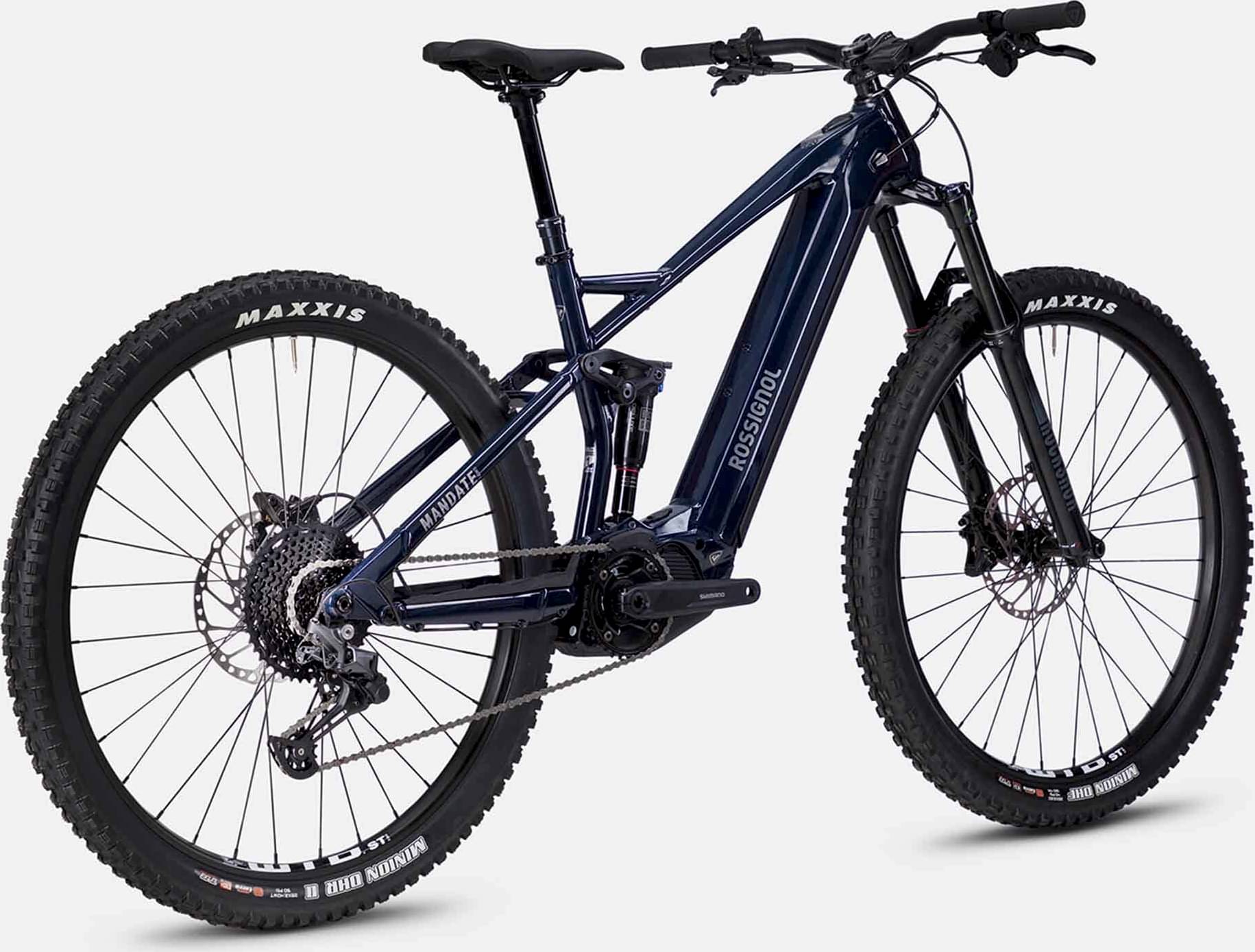

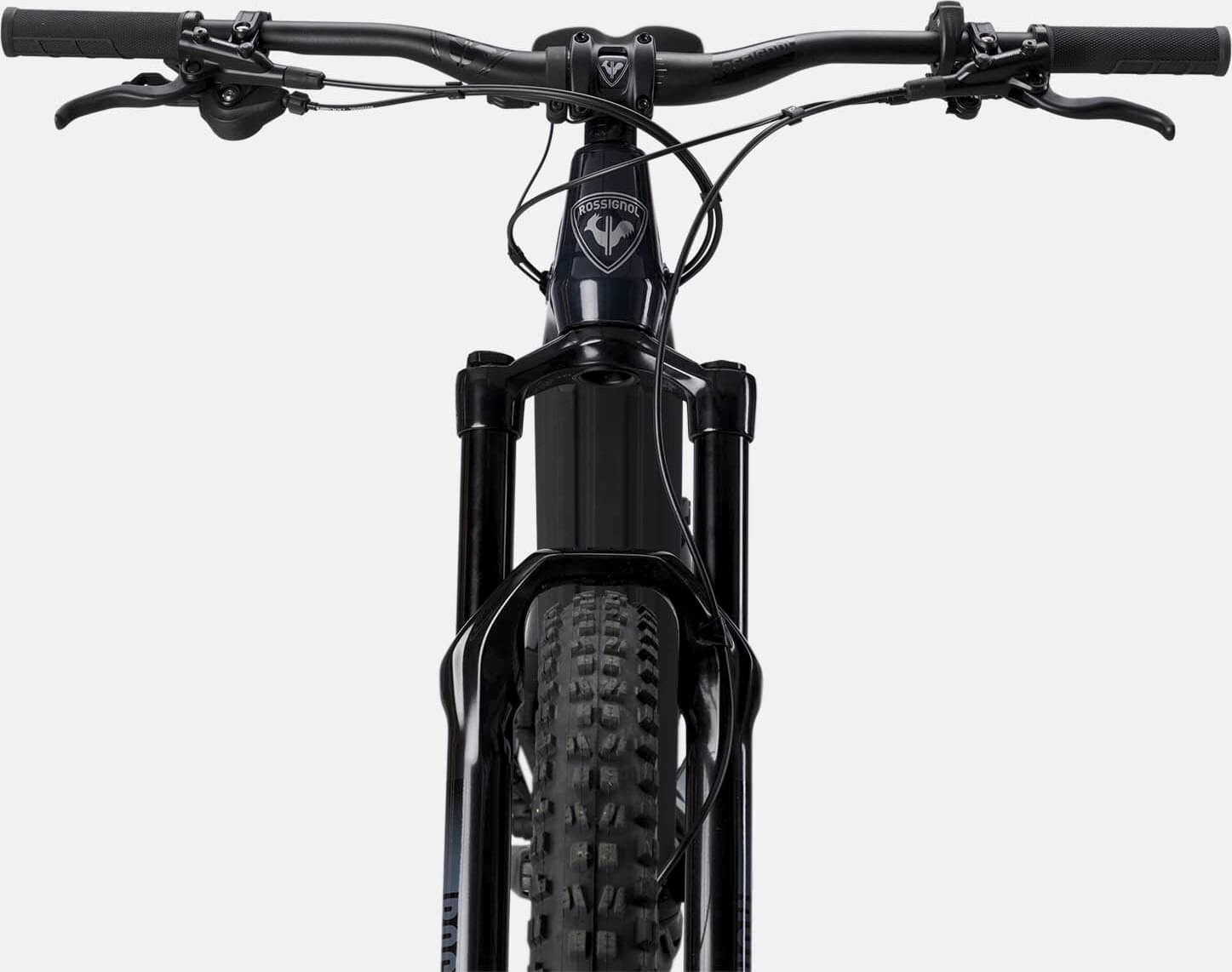

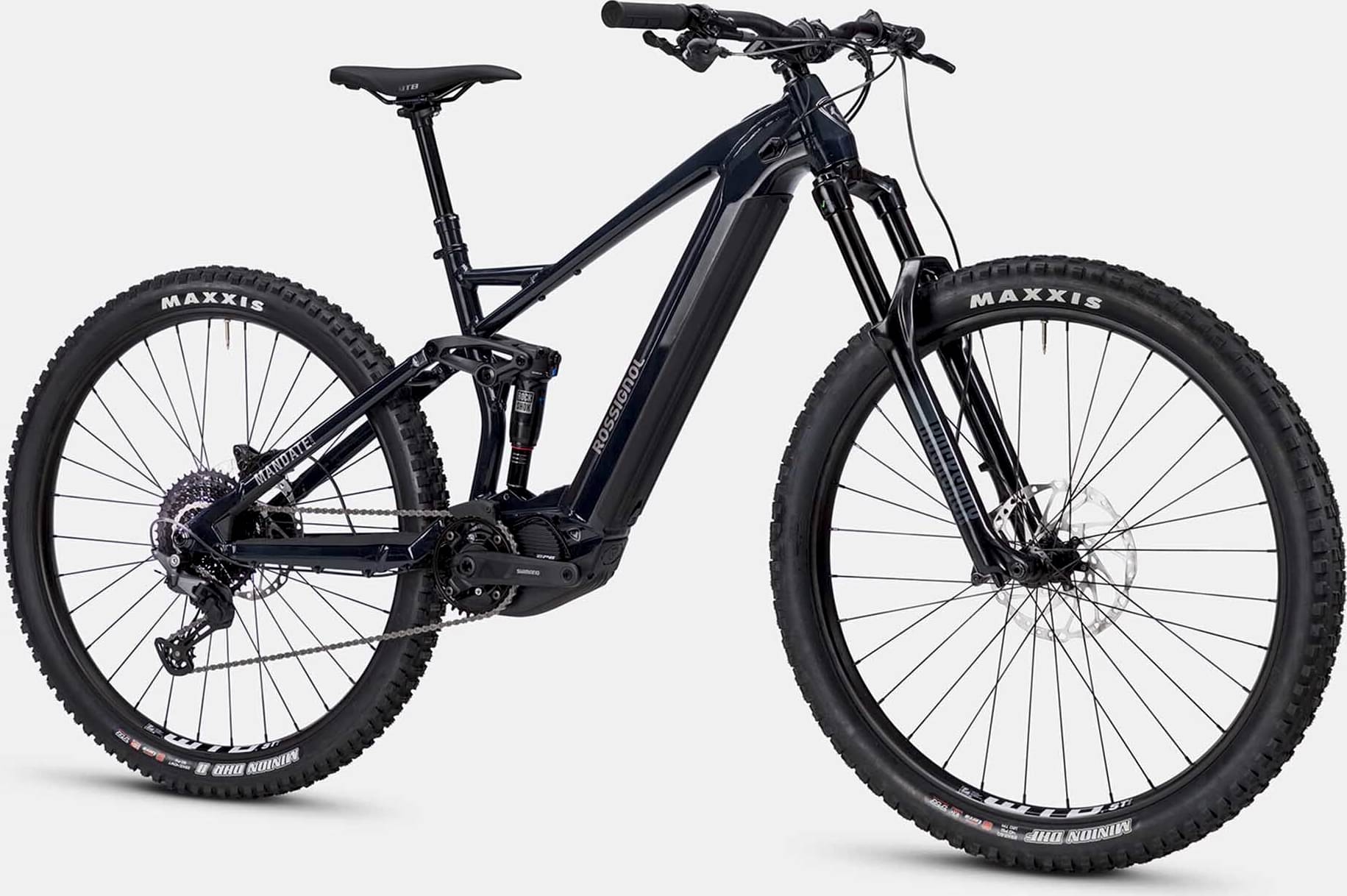

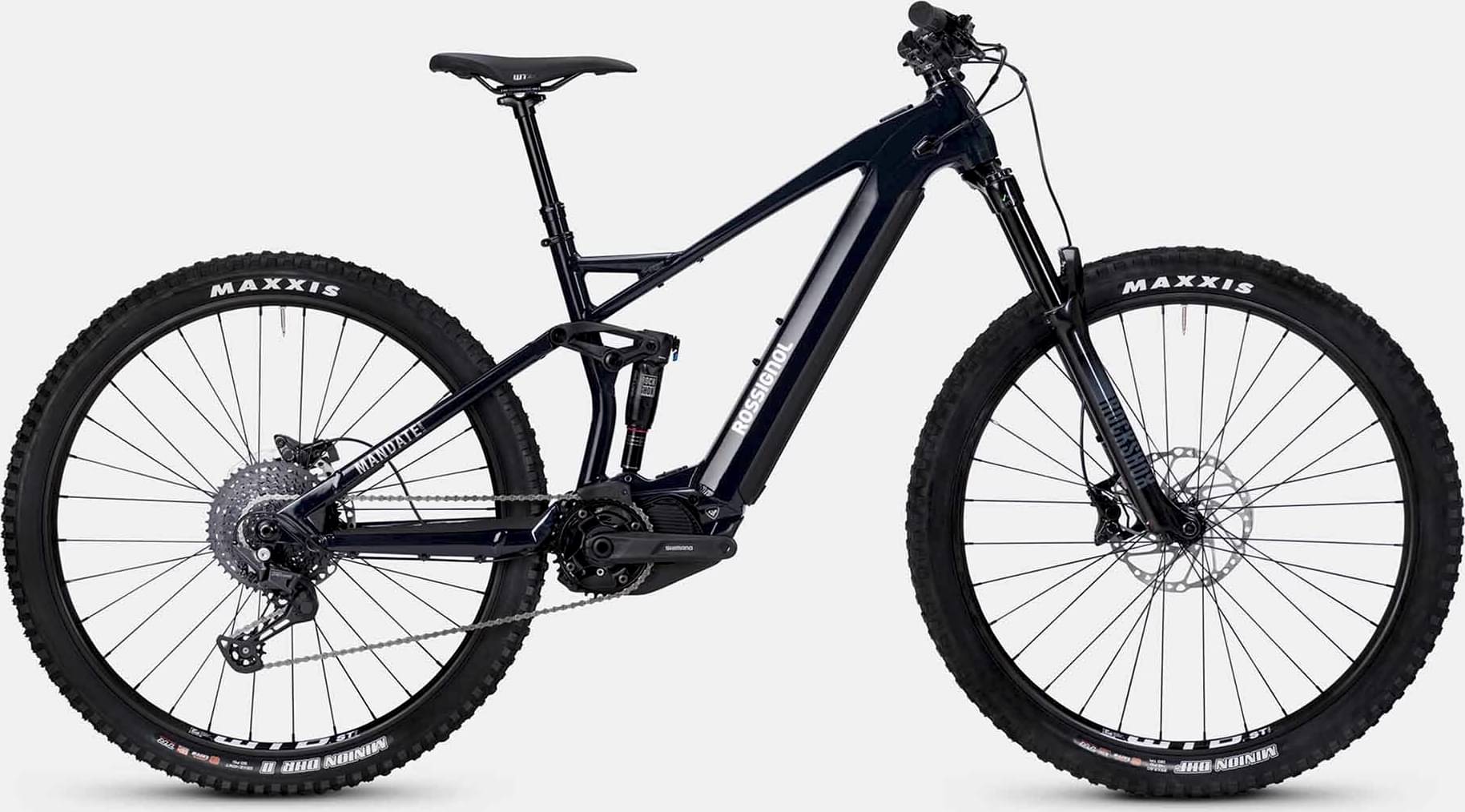

rossignol Mandate Shift Deore 11 2023
2023 E-bike
Estimate price |
4,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 145mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rossignol Trail Electric 145mm travel | 6061 Alloy
Suspension Fork
Rock shox 35 GOLD RL CROWN ADJUST 29" FENDER COMPATIBLE MXL STEALTH BOOST™ 15X110MM AXLE DEBONAIR 150MM E-MTB DECAL GLOSS BLACK FAST BLACK UPPERS 44 OFFSET TAPERED STEERER A2, PM180,
Rear Shock
NEW Rockshox Deluxe Select+ RT 185x52.5 Debonair 1 Token Mm Tune 320lb Threshold Trunnion Standard B 8x25mm Lower Mount
Drivetrain
Rear Derailleur
Shimano Deore M5100
Shift Levers
Shimano Deore M5100, ISPEC EV
Cassette
Microshift CS-G113 11S 11-46T
Crank
Shimano EM600, 34T
Chain
Shimano HG601
Chain Guide
e*thirteen e*spec Vario
Pedals
MTB platform pedal
Wheels
Front Hub
Shimano M410-B| J-Bend, Center Lock, 32h, TA 15x110
Rear Hub
ShimanoM400-B | J-Bend, Center Lock, 32h, TA 12x148, 11-speed
Rims
WTB ST i30 TCS 2.0 with Shimano hubs
Tires
Maxxis DHF, 29x2.6, EXO/TR
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano M4100, ISPEC EV
Cockpit
Stem
Rossignol MTB Switch | for internal Di2 routing
Handlebar
Rossignol MTB Switch | Internal routing for di2 | 7075 Aluminum, 20mm rise, Sweep: 9° back, 3° up
Grips
Rossignol lock on, diamond design with waffle grip
Headset
ZS (ZS44/28.6-ZS56/40) / (NO.57)
Seat
Saddle
WTB Silverado, medium, steel
Seatpost
KS Southpaw I SPEC EV remote
Motor & Battery
Motor
Take on steep climbs and tough trails with full confidence and increased maximum torque. Shimano’s newest STEPS MTB EP800 and E7000 motors deliver smooth and direct power to take you anywhere. Compact and lightweight, both motors are quiet and durable enough to hold up to any type of weather.
Battery
Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 753 mm | 765 mm | 791 mm |
| Rake | 47 mm | 43 mm | 46 mm |
| Trail | 123 mm | 127 mm | 124 mm |
| Stack | 605 mm | 609 mm | 618 mm |
| Reach | 431 mm | 447 mm | 467 mm |
| Top Tube Length | 564 mm | 577 mm | 602 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 375 mm | 425 mm | 445 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1206 mm | 1220 mm | 1247 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
Mandate Shift Deore 11 completes the Rossignol E Mandate model. There are 6 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Rossignol Mandate Shift Deore 11 2023 is the most economical model, with a starting price of 4499$. Rossignol Mandate Shift XT 2023 on the other hand costs 6499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 4499$. If we compare this with the average Trail e-bike cost we notice that the price is 33.7% more expensive.
Mandate Shift Deore 11 components
Fork
The Mandate Shift Deore 11 comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is NEW Rockshox Deluxe Select+ RT 185×52.5, with a travel distance of 145mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Mandate Shift Deore 11 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rossignol Mandate Shift Deore 11 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Rossignol Mandate Shift Deore 11 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
