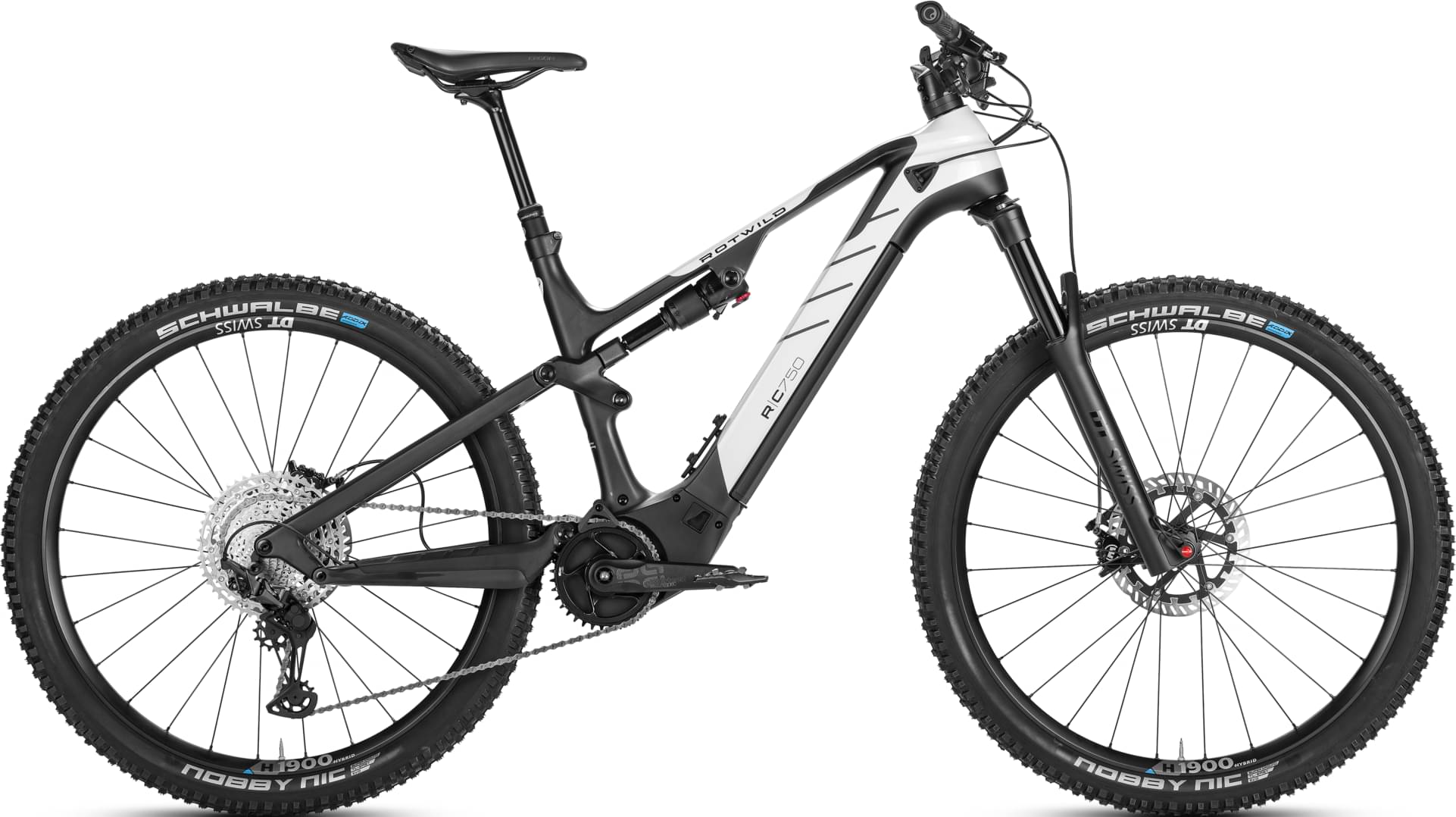

Rotwild R.C750 CORE 2022
2022 E-bike
Estimate price |
8,601$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Groupset XT, e*thirteen -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery IPU750 / 750 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
full carbon, hand made
Suspension Fork
140 mm travel / 110x15 mm / 51 mm offset
Rear Shock
DT SWISS R535 ONE, 185T X 55 MM / LINEAIR / INCONTROL
Drivetrain
Rear Derailleur
SHIMANO XT 8100 12-Speed
Shift Levers
SHIMANO XT I-SPEC EV
Cassette
SHIMANO CS 6100, 10-51 T. / 12-SPEED
Crank
E*THIRTEEN PLUS, 165 mm (S, M) / 170 mm (L, XL)
Wheels
Rims
DT SWISS H1900 SPLINE (30), RATCHET LN 18 / 110-15/148-12 TAS / 6-BOLT
Tires
SCHWALBE NOBBY NIC EVO, SUPER GROUND TLE SPEEDGRIP 29x2.4
Brakes
Brakes
MAGURA MT5 HC-W, SHIFT MIX
Cockpit
Stem
ROTWILD S240, Ø35 MM / 50 MM / AL6061 / MONKEYLINK INTERFACE
Handlebar
ROTWILD B280 AL7075, Ø35 MM / 35 MM RISE / 740 MM (S, M) / 780 MM (L, XL)
Grips
ERGON GA30 SPORTIVE WING
Headset
ACROS RW750 1.5 HEADSET W/ BLOCKLOCK
Seat
Saddle
ERGON SM
Seatpost
CRANKBROTHERS HIGHLINE 3, Ø34.9 MM / SETBACK / UP TO 125 MM (S) / 150 MM (M, L, XL)
Motor & Battery
Motor
Brose Drive S Mag / Air Cooler / up to 90 Nm torque
Battery
IPU750 / 750 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger
Remote
BROSE DISPLAY ALLROUND, BROSE APP / USB SPACER READY
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 733 mm | 757 mm | 795 mm | 831 mm |
| Rake | 66 mm | 54 mm | 52 mm | 54 mm |
| Trail | 94 mm | 108 mm | 110 mm | 108 mm |
| Stack | 607 mm | 613 mm | 633 mm | 645 mm |
| Reach | 400 mm | 434 mm | 465 mm | 494 mm |
| Top Tube Length | 584 mm | 613 mm | 650 | 684 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1187 mm | 1211 mm | 1249 mm | 1285 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 746 mm | 746 mm | 746 mm | 746 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
R.C750 CORE belongs to the Rotwild E Rc750 model. Rotwild launched 9 e-bikes of this model so far. Take a sneak peek at all Rotwild E Rc750 e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Rotwild R.C750 (HT) CORE 2022 has a starting price of 6370$. Rotwild R.C750 ULTRA 2022 on the other hand is the most expensive at 11148$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7962$. Doing a quick comparison, we notice that R.C750 CORE price is 136.61% higher than the average cost of a Trail e-bike.
R.C750 CORE components
Wheels
The R.C750 CORE 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Rotwild R.C750 CORE has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Rotwild model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
