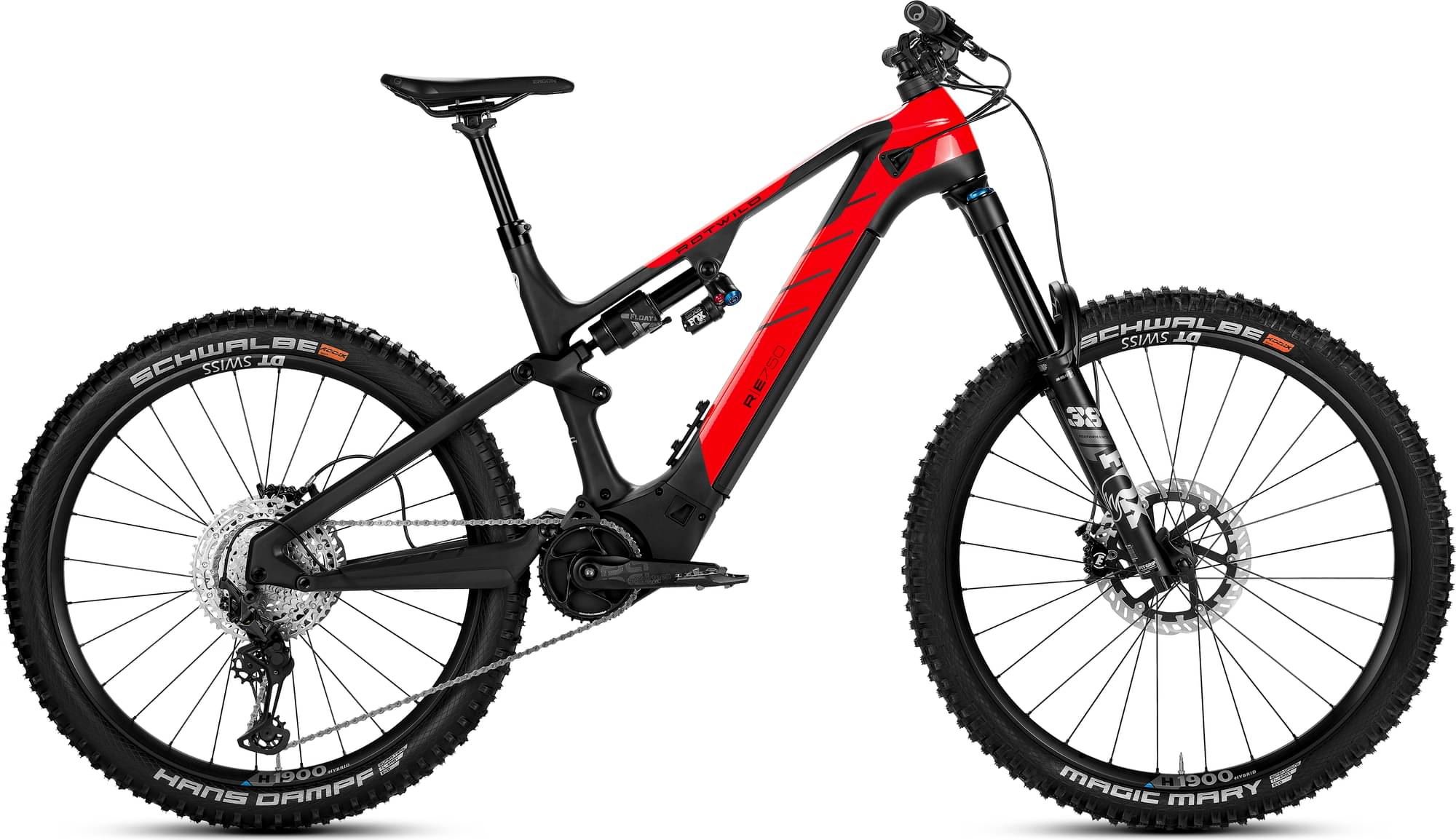

Rotwild R.E750 CORE 2023
2023 E-bike
Estimate price |
9,174$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 162mm -
Fork Fox Performance Float 38
-
Groupset XT, e*thirteen -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery IPU750 Removable, IPU750 / 720 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
full carbon, hand made
Suspension Fork
Fox 38 Float Performance, 170 mm travel / 110x15 mm / 44 mm offset / OD Crown
Rear Shock
Fox Float X2 Performance, 162.5 mm travel / 205x65 mm / Trunnion (bushing f.) / 19.05 mm (bushing r.)
Drivetrain
Rear Derailleur
Shimano XT 8100
Cassette
SHIMANO CS 6100
Crank
e*thirteen Direct Mount Chainring
Chain
SHIMANO HG 7100
Chain Guide
ROTWILD SL750 2.0
Wheels
Rims
full carbon, hand made
Tires
SCHWALBE Magic Mary / Hans Dampf
Brakes
Brakes
MAGURA MT5 HC-W
Cockpit
Stem
e*thirteen Plus
Handlebar
e*thirteen Plus
Headset
ACROS RW750 1.5 Headset
Seat
Saddle
ERGON SM
Seatpost
e*thirteen Vario Covert Infinite
Motor & Battery
Motor
brose Drive S Mag, Brose Drive S Mag / Air Cooler / up to 90 Nm torque
Battery
IPU750 Removable, IPU750 / 720 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger
Charger
4,5 A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.46 mm | 1.41 mm | 1.34 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 735 mm | 761 mm | 799 mm | 833 mm |
| Rake | 52 mm | 42 mm | 40 mm | 38 mm |
| Trail | 117 mm | 128 mm | 130 mm | 133 mm |
| Stack | 612 mm | 620 mm | 640 mm | 651 mm |
| Reach | 391 mm | 424 mm | 455 mm | 486 mm |
| Top Tube Length | 586 mm | 616 mm | 653 mm | 687 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1176 mm | 1202 mm | 1240 mm | 1274 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 761 mm | 761 mm | 761 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
R.E750 CORE is part of the Rotwild E Re750 model. There are 6 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Rotwild R.E750 CORE 2023 is the most economical model, with a starting price of 8493$. Rotwild R.E750 PRO 2023 on the other hand costs 10086$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8493$. In conclusion, this e-bike price is 77.49% higher than the price of the average Enduro e-bike.
R.E750 CORE components
Fork
This e-bike has the Fox Performance Float 38 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The R.E750 CORE has a rear shock with a travel of 162mm. The model Fox Float X2 Performance is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on R.E750 CORE are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Rotwild R.E750 CORE has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Rotwild R.E750 CORE comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
