Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 36
-
Groupset XT, e*thirteen -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery Rotwild IPU750, removeable, semi-integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Performance Elite E-Bike+, GRIP2 damper, high/low speed compression adjust, high/low speed rebound adjust
Rear Shock
FOX FLOAT X2 Performance, 2-position lever, trunnion mount
Drivetrain
Rear Derailleur
Shimano XT 8100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano XT, 12-speed, I-SPEC EV clamp
Cassette
Shimano CS 7100, 12-speed, 10-51 tooth
Crank
e*thirteen Plus, Length: 160mm (SM/MD), 165mm (LG/XL)
Chain
Shimano HG 7100, 12-speed
Chain Guide
Rotwild SL750 upper guide
Pedals
N/A
Wheels
Front Hub
DT Swiss HX1501 Spline 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
DT Swiss HX1501 Spline 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear
Rims
DT Swiss HX1501 Spline 30 wheelset, 29" front, 27.5" rear
Spokes
DT Swiss HX1501 Spline 30 wheelset
Tires
Continental Baron Projekt, 29" x 2.4" (front), 27.5" x 2.6" (rear)
Brakes
Brakes
Shimano XT 8120, finned pads, Shimano 203mm ICE TECH rotors (RT800 front, RT810 rear)
Brake Levers
Shimano XT 8120
Cockpit
Stem
S35, 35mm clamp, 50mm length, MonkeyLink light mount ready
Handlebar
B35, 35mm clamp diameter, 15mm rise, 780mm width
Grips
Ergon GD10 Slim Factory, Frozen
Headset
Acros RW750 Block Lock
Seat
Saddle
Ergon SM Comp
Seatpost
Eightpins H01 dropper, Drop: 144mm (SM), 162mm (MD), 178mm (LG), 196mm (XL)
Motor & Battery
Motor
Brose Drive S Mag, air cooler skid plate, 90Nm
Battery
Rotwild IPU750, removeable, semi-integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.46 mm | 1.41 mm | 1.34 mm |
| Front Center | 735 mm | 761 mm | 799 mm | 833 mm |
| Rake | 52 mm | 42 mm | 40 mm | 38 mm |
| Trail | 117 mm | 128 mm | 130 mm | 133 mm |
| Stack | 612 mm | 620 mm | 640 mm | 651 mm |
| Reach | 391 mm | 424 mm | 455 mm | 486 mm |
| Top Tube Length | 586 mm | 616 mm | 653 mm | 687 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1176 mm | 1202 mm | 1240 mm | 1274 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 761 mm | 761 mm | 761 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

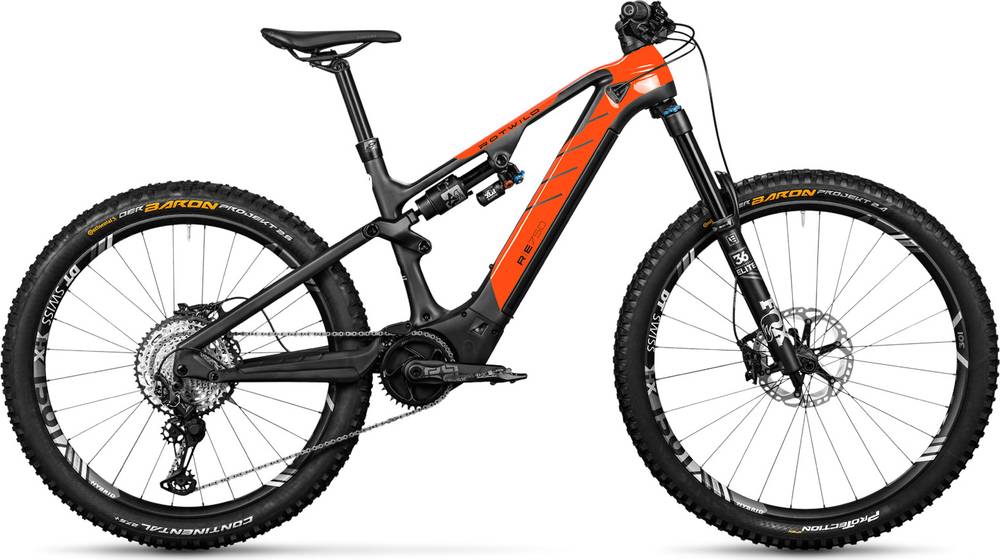

R.E750 Pro belongs to the Rotwild E Re750 model. Rotwild released 6 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
R.E750 Pro components
Fork
Rotwild R.E750 Pro 2020 e-bike is equipped with the Fox Performance Elite Float 36 fork, and has 170mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT X2 Performance, with a travel distance of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The R.E750 Pro 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The R.E750 Pro comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the R.E750 Pro. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
