Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork Fox Factory Float 40
-
Groupset Saint, e*thirteen TRS Plus -
Suspension Full -
Motor Brose mid-drive -
Battery IPU.500 Carbon -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 40 Float Factory, Kashima
Rear Shock
FOX Float X2 Performance
Drivetrain
Rear Derailleur
Shimano Saint
Front Derailleur
N/A
Shift Levers
Shimano Saint, 10-speed
Cassette
Shimano HG-81, 11-36 tooth, 10-speed
Crank
e*thirteen TRS+, 165mm length, Boost
Chain
10-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss FR 1950, Front: 20mm x 110mm, Rear: 12mm x 148mm
Rear Hub
DT Swiss FR 1950, Front: 20mm x 110mm, Rear: 12mm x 148mm
Rims
DT Swiss FR 1950
Spokes
DT Swiss
Tires
Continental Kaiser Projekt, 2.4"
Brakes
Brakes
Shimano Saint with Shimano RT86 Ice-Tech 203mm front/180mm rear rotors
Brake Levers
Shimano Saint
Cockpit
Stem
Pro Tharsis 9.8 Al 7075, 45mm-50mm direct mount
Handlebar
Pro Tharsis 9.8 Al 7075, 800mm width, 20mm rise
Grips
Ergon GD10 Slim
Headset
Rotwild RHS 1.5
Seat
Saddle
Ergon SME30
Seatpost
Crankbrothers Highline, 160mm drop
Motor & Battery
Motor
Brose Drive S Air Cooler
Battery
IPU.500 Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm |
| Bottom Bracket Height | 350 mm | 350 mm |
| Stack | 615 mm | 624 mm |
| Reach | 426 mm | 451 mm |
| Top Tube Length | 598 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 450 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 446 mm | 446 mm |
| Wheelbase | 1239 mm | 1268 mm |
| Bottom Bracket Drop | 5 mm | 5 mm |
| Standover Height | 770 mm | 768 mm |
| Wheels | 27" | 27" |

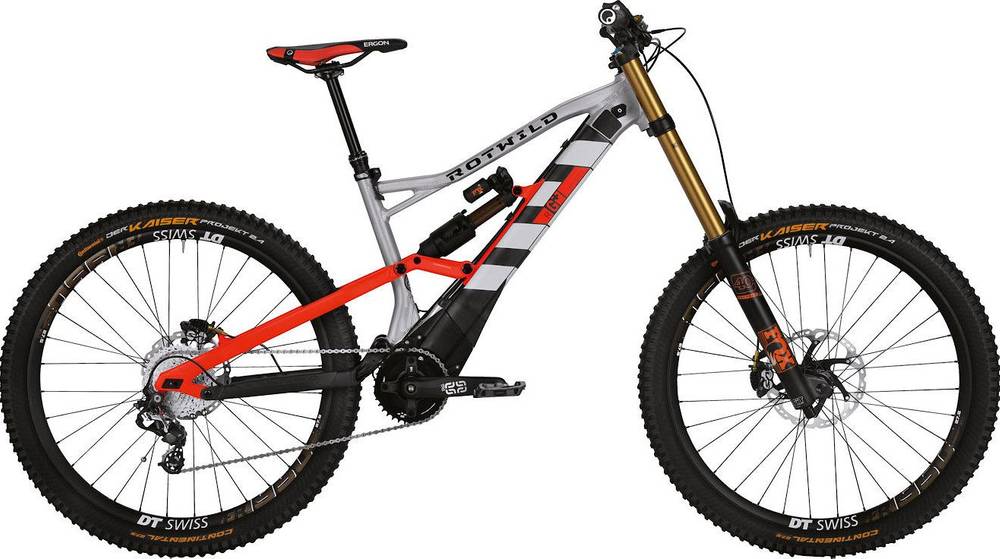

Model Overview
R.G+ FS Ultra 40 is part of the Rotwild E Rgplus model. 2 e-bikes variations carry this model name so far. Take a sneak peek at all Rotwild E Rgplus e-bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
R.G+ FS Ultra 40 components
Fork
Rotwild R.G+ FS Ultra 40 2018 e-bike is equipped with the Fox Factory Float 40 fork, and has 200mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the FOX Float X2 Performance model, with a travel of 200mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on R.G+ FS Ultra 40 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rotwild R.G+ FS Ultra 40 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
Rotwild R.G+ FS Ultra 40 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
