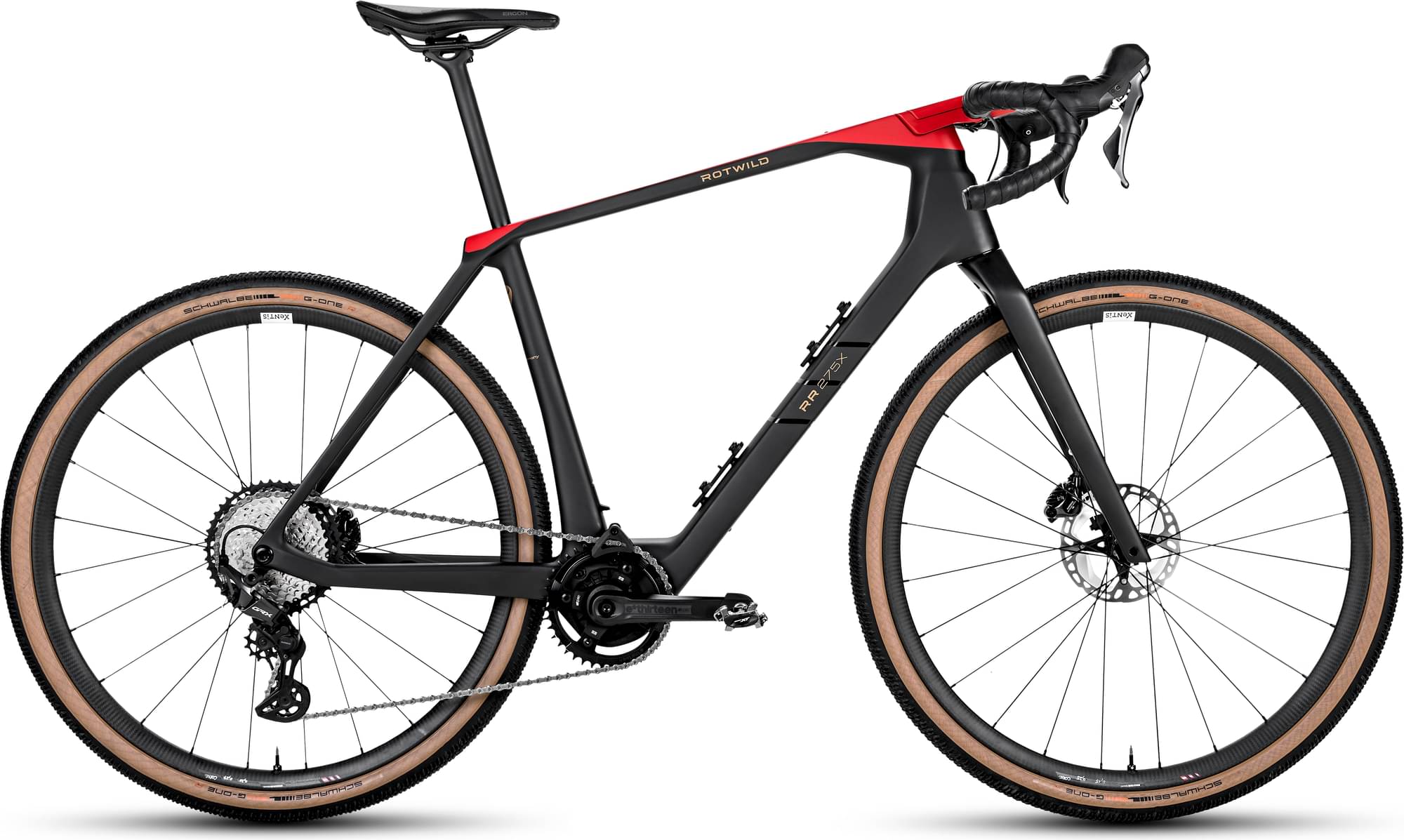

Rotwild R.R275 X PRO 2024
2024 E-bike
Estimate price |
10,469$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, e*thirteen -
Suspension Rigid -
Motor TQ 50Nm mid-drive -
Battery IPU275, IPU 275 / effective 250 watt-hours / 4A charger -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon made from high modulus carbon fibers, handcrafted
Suspension Fork
ROTWILD Gravel Fork, ROTWILD Gravel Fork, High Modulus Carbon, 1.5-inch tapered
Drivetrain
Rear Derailleur
SHIMANO GRX GS
Cassette
SHIMANO CS 8100
Crank
e*thirteen
Chain
SHIMANO HG 7100
Chain Guide
e*thirteen TRS Plus
Wheels
Rims
Full carbon made from high modulus carbon fibers, handcrafted
Tires
Schwalbe G-One R Evo, 28x1.7 (45-700C), tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
ROTWILD RIS340
Handlebar
ROTWILD B340, ROTWILD B340 Handlebar, 440 mm wide, 120 mm drop
Headset
ACROS RW375 Gravel 1.5 Headset
Seat
Saddle
ERGON SR Allroad Carbon
Seatpost
ROTWILD P260 Carbon
Motor & Battery
Motor
TQ HPR 50, TQ HPR 50 / 3 driving profiles / Boost Button / up to 50 Nm
Battery
IPU275, IPU 275 / effective 250 watt-hours / 4A charger
Charger
ROTWILD E-MTB Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.426 mm | 1.45 mm | 1.475 mm |
| Bottom Bracket Height | 292.5 mm | 292.5 mm | 292.5 mm | 292.5 mm |
| Front Center | 625 mm | 657 mm | 675 mm | 693 mm |
| Rake | 51 mm | 51 mm | 50 mm | 50 mm |
| Trail | 76 mm | 76 mm | 77 mm | 77 mm |
| Stack | 556 mm | 582 mm | 606 mm | 630 mm |
| Reach | 385 mm | 408 mm | 418 mm | 427 mm |
| Top Tube Length | 544 mm | 575 mm | 592 mm | 608 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 465 mm | 484 mm | 504 mm | 525 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 143 mm | 168 mm | 194 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1048 mm | 1081 mm | 1099 mm | 1117 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 806 mm | 825 mm | 846 mm | 868 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
R.R275 X PRO is a Rotwild E Rr275 model. Rotwild released 2 e-bikes variations of this model so far. You can easily view all of the Rotwild E Rr275 e-bikes models from 2024, here.
Model range prices
The most economical model, the Rotwild R.R275 X PRO 2024 has a starting price of 9529$. Rotwild R.R275 X ULTRA 2024 on the other hand is the most expensive at 12706$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2024 for 9529$. If we compare this with the average Gravel e-bike cost we notice that the price is 161.64% higher.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on R.R275 X PRO are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The R.R275 X PRO comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
