Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 34
-
Groupset XT, e*thirteen TRS Plus -
Suspension Full -
Motor Brose mid-drive -
Battery IPU.660.R Carbon, removable -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Performance GRIP, Boost
Rear Shock
FOX Float DPS EVOL Performance
Drivetrain
Rear Derailleur
Shimano XT
Front Derailleur
N/A
Shift Levers
Shimano XT I-Spec II, 11-speed
Cassette
Shimano CS-7000, 11-46 tooth, 11-speed
Crank
e*thirteen TRS+, 165mm length, Boost
Chain
11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss H1900, Boost front and rear
Rear Hub
DT Swiss H1900, Boost front and rear
Rims
DT Swiss H1900 Spline 30
Spokes
DT Swiss
Tires
Schwalbe Nobby Nic, 2.6" Apex Speedgrip, Tubeless Easy
Brakes
Brakes
Shimano XT 8000 with Shimano RT86 Ice-Tech 203mm front/180mm rear rotors
Brake Levers
Shimano XT 8000
Cockpit
Stem
Crankbrothers Iodine, 50mm (S), 65mm (M-L), 80mm (XL)
Handlebar
Crankbrothers Cobalt, 740mm (S), 760mm (M-L), 780mm (XL)
Grips
Ergon GD10 Slim
Headset
Rotwild MHS I AR
Seat
Saddle
Ergon SMA30
Seatpost
Crankbrothers Highline, 100mm drop (S), 125mm drop (M), 160mm drop (L-XL)
Motor & Battery
Motor
Brose Drive S
Battery
IPU.660.R Carbon, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.42 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 337.5 mm | 337.5 mm | 337.5 mm | 337.5 mm |
| Stack | 601 mm | 601 mm | 611 mm | 620 mm |
| Reach | 418 mm | 424 mm | 451 mm | 476 mm |
| Top Tube Length | 591 mm | 596 mm | 611 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 440 mm | 475 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1158 mm | 1164 mm | 1195 mm | 1224 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 747 mm | 752 mm | 766 mm | 774 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

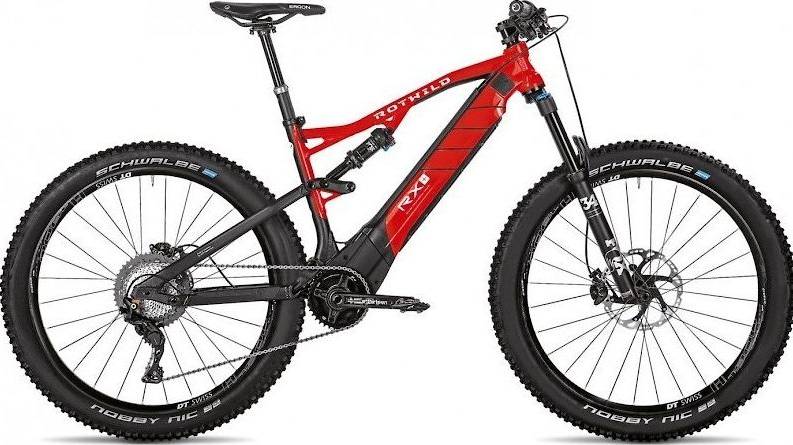

Model Overview
R.X+ Trail Pro is part of the Rotwild E Rxplus model. Rotwild released 5 e-bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX Float DPS EVOL Performance, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on R.X+ Trail Pro are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rotwild R.X+ Trail Pro is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Rotwild R.X+ Trail Pro e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the R.X+ Trail Pro. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
