Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 34 Rhythm, 2-position lever, GRIP damper
Rear Shock
FOX FLOAT DPS Performance, 3-position lever, EVOL
Drivetrain
Rear Derailleur
Shimano XT 8100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano CS 7100, 12-speed, 10-51 tooth
Crank
Shimano M610, 170mm length (SM), 175mm length (MD/LG/XL)
Bottom Bracket
Shimano BB92 press-fit
Chain
Shimano HG 7100, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1900 Spline 30 wheelset, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
DT Swiss M1900 Spline 30 wheelset, 110x15mm Boost front, 148x12mm Boost rear
Rims
DT Swiss M1900 Spline 30 wheelset
Spokes
DT Swiss M1900 Spline 30 wheelset
Tires
Continental Mountain King, 27.5" x 2.3"
Brakes
Brakes
Shimano 520, Shimano RT64 180mm rotors
Brake Levers
Shimano 520
Cockpit
Stem
Crankbrothers Iodine, 50mm length (SM/MD), 65mm length (LG/XL)
Handlebar
Crankbrothers Cobalt, Width: 740mm (SM), 760mm (MD/LG), 780mm (XL)
Grips
Ergon GD10 Slim Factory, Frozen
Headset
Rotwild MHS I tapered Ti
Seat
Saddle
Ergon SM Sport
Seatpost
Crankbrothers Highline dropper, 125mm drop (SM), 150mm drop (MD/LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.418 mm | 1.356 mm | 1.303 mm |
| Bottom Bracket Height | 337.5 mm | 337.5 mm | 337.5 mm | 337.5 mm |
| Stack | 591 mm | 600 mm | 610 mm | 619 mm |
| Reach | 400 mm | 423 mm | 450 mm | 475 mm |
| Top Tube Length | 560 mm | 595 mm | 610 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 435 mm | 475 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1114 mm | 1141 mm | 1172 mm | 1201 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 721 mm | 746 mm | 762 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

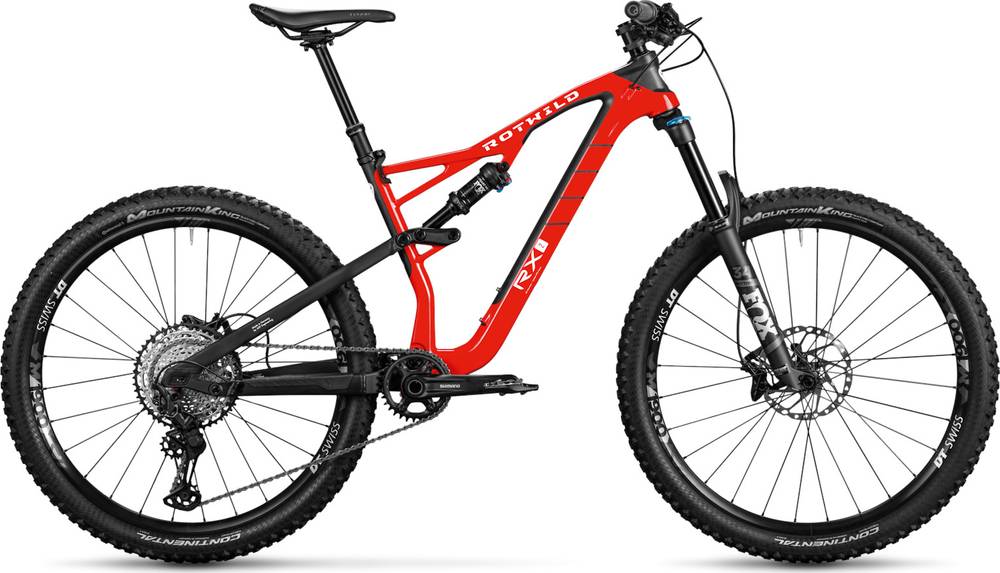

R.X2 Core 27.5 completes the Rotwild Rx2 model. Rotwild released 2 bikes variations of this model so far. Take a sneak peek at all Rotwild Rx2 bikes models from 2020, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
R.X2 Core 27.5 components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rotwild R.X2 Core 27.5 bike has the FOX FLOAT DPS Performance model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on R.X2 Core 27.5 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rotwild R.X2 Core 27.5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
R.X2 Core 27.5 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Rotwild R.X2 Core 27.5 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
