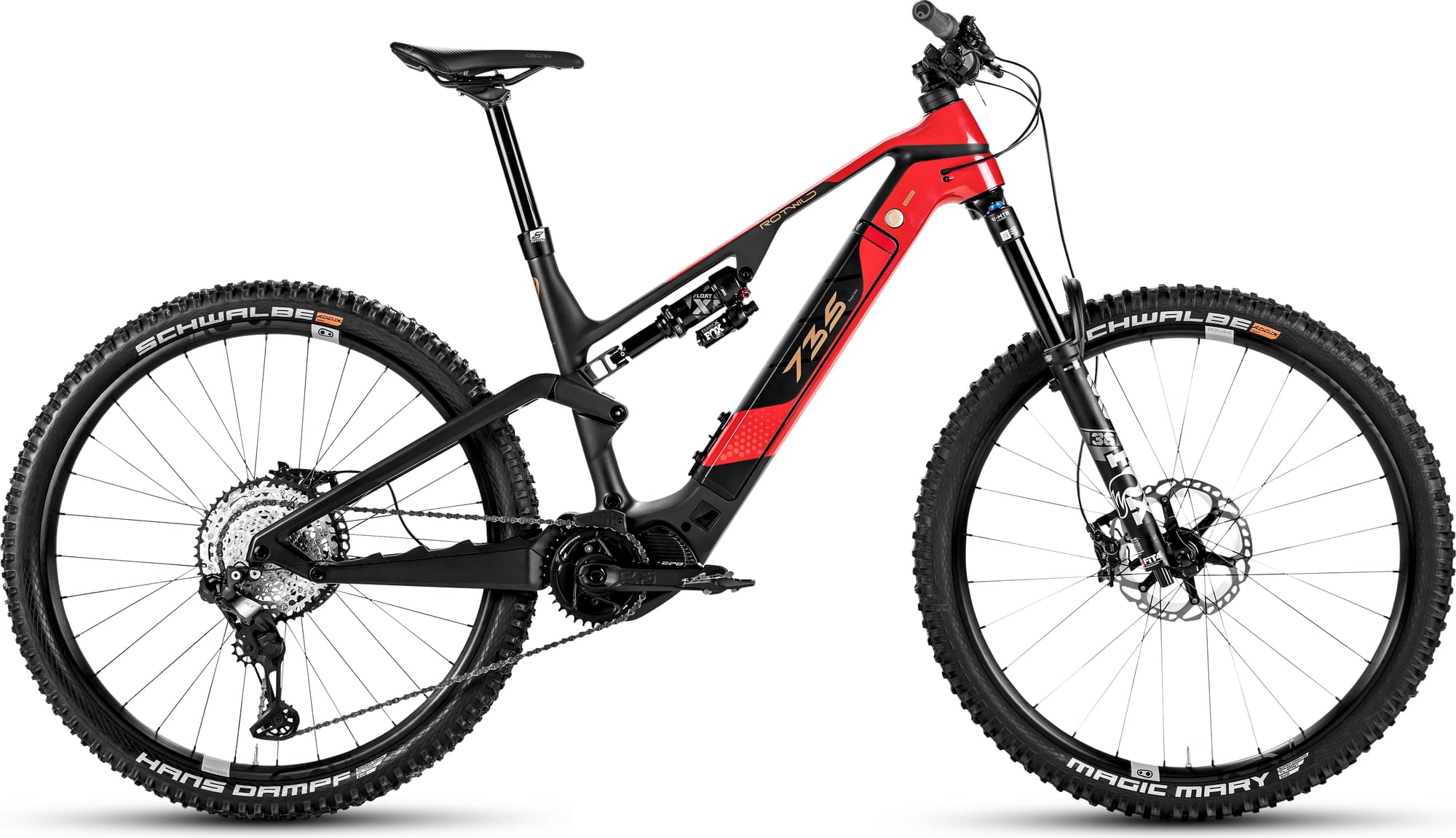

Rotwild R.X735 PRO 2023
2023 E-bike
Estimate price |
12,042$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 144mm -
Fork Fox Performance Elite Float 36
-
Groupset Ultegra Di2, e*thirteen -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery IPU735 QR Carbon, IPU735 / 720 Wh / 3.6 kg / Carbon / Quick Release / 4.5 A charger -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon made from high modulus carbon fibres, handmade
Suspension Fork
Fox 36 Float Performance Elite, 150 mm travel / 110x15 mm / 44 mm offset
Rear Shock
Fox Float X Performance, 144 mm travel / 210x52.5 mm / 21.84 mm (bushing f.) / 19.05 mm (bushing r.)
Drivetrain
Rear Derailleur
SHIMANO XT Di2 8150 SGS HYPERGLIDE+
Cassette
SHIMANO CS 7100
Crank
e*thirteen Direct Mount Chainring
Chain
SHIMANO HG 7100
Chain Guide
e*thirteen TRS
Wheels
Rims
Full carbon made from high modulus carbon fibres, handmade
Tires
SCHWALBE Magic Mary / Hans Dampf
Brakes
Brakes
SHIMANO XT 8120
Cockpit
Stem
e*thirteen Plus
Handlebar
e*thirteen Plus
Headset
ACROS RW735 1.5 Headset
Seat
Saddle
ERGON SM COMP
Seatpost
Eightpins H01
Motor & Battery
Motor
SHIMANO EP801, Shimano EP801 / 2 riding profiles / up to 85 Nm torque
Battery
IPU735 QR Carbon, IPU735 / 720 Wh / 3.6 kg / Carbon / Quick Release / 4.5 A charger
Charger
4,5 A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 752 mm | 771 mm | 805 mm | 834 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm |
| Trail | 121 mm | 122 mm | 121 mm | 121 mm |
| Stack | 618 mm | 618 mm | 636 mm | 645 mm |
| Reach | 423 mm | 443 mm | 468 mm | 493 mm |
| Top Tube Length | 590 mm | 610 mm | 640 mm | 668 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 506 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1193 mm | 1212 mm | 1246 mm | 1275 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 722 mm | 722 mm | 722 mm | 722 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
R.X735 PRO is part of the Rotwild E Rx735 model. Rotwild released 6 e-bikes variations of this model so far. Take a sneak peek at all Rotwild E Rx735 e-bikes models from 2023, by clicking here.
Model range prices
Rotwild R.X735 CORE 2023 is the most affordable e-bike of this model and has a price of 9555$. On the other hand, Rotwild R.X735 ULTRA 2023, is the most expensive and costs 13802$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Rotwild released this model in 2023, its price was 11148$. Doing a quick comparison, we notice that R.X735 PRO price is 231.29% higher than the average cost of a Trail e-bike.
R.X735 PRO components
Fork
The Fox Performance Elite Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The R.X735 PRO has a rear shock with a travel of 144mm. The model Fox Float X Performance is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the R.X735 PRO e-bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the R.X735 PRO. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
