Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 120mm -
Fork Fox Performance Float 36
-
Groupset XT, e*thirteen -
Suspension Hardtail -
Motor Brose 90Nm mid-drive -
Battery Rotwild IPU750, removeable, semi-integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Performance E-Bike+, 3-position lever, GRIP damper
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT 8100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano XT, 12-speed, I-SPEC EV clamp
Cassette
Shimano CS 7100, 12-speed, 10-51 tooth
Crank
e*thirteen Plus, Length: 160mm (SM), 165mm (MD/LG), 170mm (XL)
Chain
Shimano HG 7100, 12-speed
Chain Guide
Rotwild SL750 upper guide
Pedals
N/A
Wheels
Front Hub
DT Swiss HX1501 Spline 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
DT Swiss HX1501 Spline 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear
Rims
DT Swiss HX1501 Spline 30 wheelset, 29" front, 27.5" rear
Spokes
DT Swiss HX1501 Spline 30 wheelset
Tires
Continental Baron Projekt, 29" x 2.4" (front), 27.5" x 2.6" (rear)
Brakes
Brakes
Shimano XT 8120, finned pads, Shimano 203mm ICE TECH rotors (RT800 front, RT810 rear)
Brake Levers
Shimano XT 8120
Cockpit
Stem
S35, 35mm clamp, 50mm length, MonkeyLink light mount ready
Handlebar
B35, 35mm clamp diameter, 15mm rise, 780mm width
Grips
Ergon GD10 Slim Factory, Frozen
Headset
Acros RW750 Block Lock
Seat
Saddle
Ergon SM-E Mountain Sport
Seatpost
Eightpins H01 dropper, Drop: 144mm (SM), 162mm (MD), 178mm (LG), 196mm (XL)
Motor & Battery
Motor
Brose Drive S Mag, air cooler skid plate, 90Nm
Battery
Rotwild IPU750, removeable, semi-integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.51 mm | 1.44 mm | 1.38 mm |
| Front Center | 709 mm | 739 mm | 779 mm | 815 mm |
| Rake | 50 mm | 50 mm | 51 mm | 50 mm |
| Trail | 108 mm | 108 mm | 107 mm | 108 mm |
| Stack | 640 mm | 640 mm | 658 mm | 672 mm |
| Reach | 394 mm | 424 mm | 456 mm | 487 mm |
| Top Tube Length | 568 mm | 611 mm | 649 mm | 683 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 145 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1143 mm | 1173 mm | 1214 mm | 1250 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 714 mm | 714 mm | 741 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

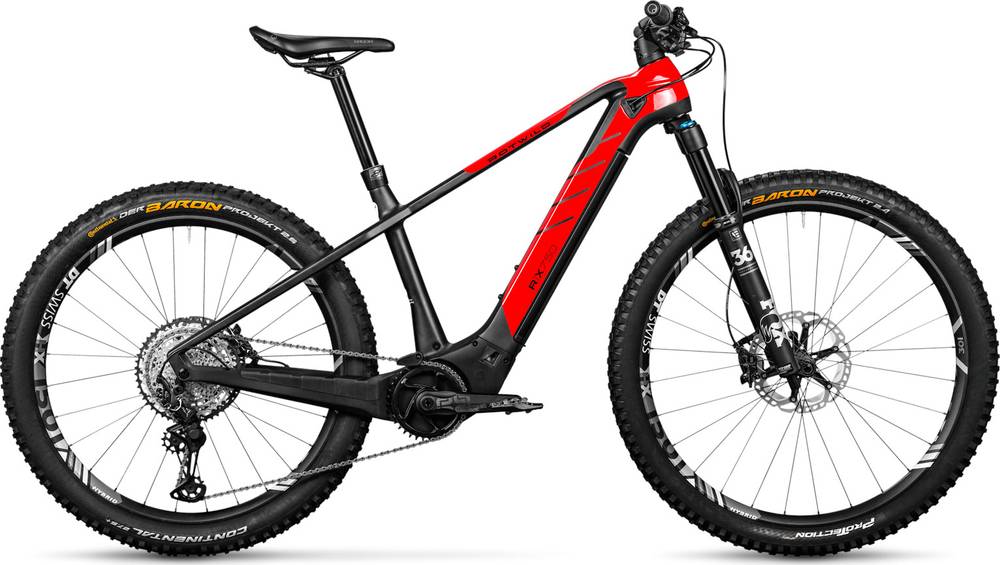

R.X750 HT Pro is part of the Rotwild E Rx750 model. 10 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
R.X750 HT Pro components
Fork
Rotwild R.X750 HT Pro 2020 e-bike is equipped with the Fox Performance Float 36 fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the R.X750 HT Pro e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The R.X750 HT Pro comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Rotwild model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
