Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XTR, e*thirteen -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery Rotwild IPU750, removeable, semi-integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Factory E-Bike+, Kashima coating, 3-position lever, FIT4 damper, low-speed compression adjust
Rear Shock
FOX FLOAT DPX2 Factory E-Bike+, Kashima coating, 3-position lever, trunnion mount, EVOL LV air can
Drivetrain
Rear Derailleur
Shimano XTR 9100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano XTR, 12-speed, I-SPEC EV clamp
Cassette
Shimano CS 8100, 12-speed, 10-51 tooth
Crank
e*thirteen Race Carbon, Length: 160mm (SM), 165mm (MD/LG), 170mm (XL)
Chain
Shimano HG 7100, 12-speed
Chain Guide
Rotwild SL750 upper guide
Pedals
N/A
Wheels
Front Hub
DT Swiss HXC1200 Spline 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
DT Swiss HXC1200 Spline 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear
Rims
DT Swiss HXC1200 Spline 30 wheelset, carbon fiber, 29" front, 27.5" rear
Spokes
DT Swiss HXC1200 Spline 30 wheelset
Tires
Continental Baron Projekt, 29" x 2.4" (front), 27.5" x 2.6" (rear)
Brakes
Brakes
Shimano XTR 9120, finned pads, Shimano 203mm ICE TECH rotors (RT800 front, RT810 rear)
Brake Levers
Shimano XTR 9120
Cockpit
Stem
S35, 35mm clamp, 50mm length, MonkeyLink light mount ready
Handlebar
B35, 35mm clamp diameter, 15mm rise, 780mm width
Grips
Ergon GD10 Slim Factory, Frozen
Headset
Acros RW750 Block Lock
Seat
Saddle
Ergon SM-E Mountain Sport
Seatpost
Eightpins NGS-2 dropper, Drop: 168mm (SM), 192mm (MD), 210mm (LG), 228mm (XL)
Motor & Battery
Motor
Brose Drive S Mag, air cooler skid plate, 90Nm
Battery
Rotwild IPU750, removeable, semi-integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.36 mm | 1.3 mm |
| Front Center | 727 mm | 753 mm | 791 mm | 825 mm |
| Rake | 52 mm | 44 mm | 42 mm | 40 mm |
| Trail | 110 mm | 119 mm | 121 mm | 123 mm |
| Stack | 606 mm | 613 mm | 633 mm | 644 mm |
| Reach | 401 mm | 433 mm | 464 mm | 496 mm |
| Top Tube Length | 584 mm | 613 mm | 650 | 684 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1168 mm | 1194 mm | 1232 mm | 1266 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 746 mm | 746 mm | 746 mm | 746 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

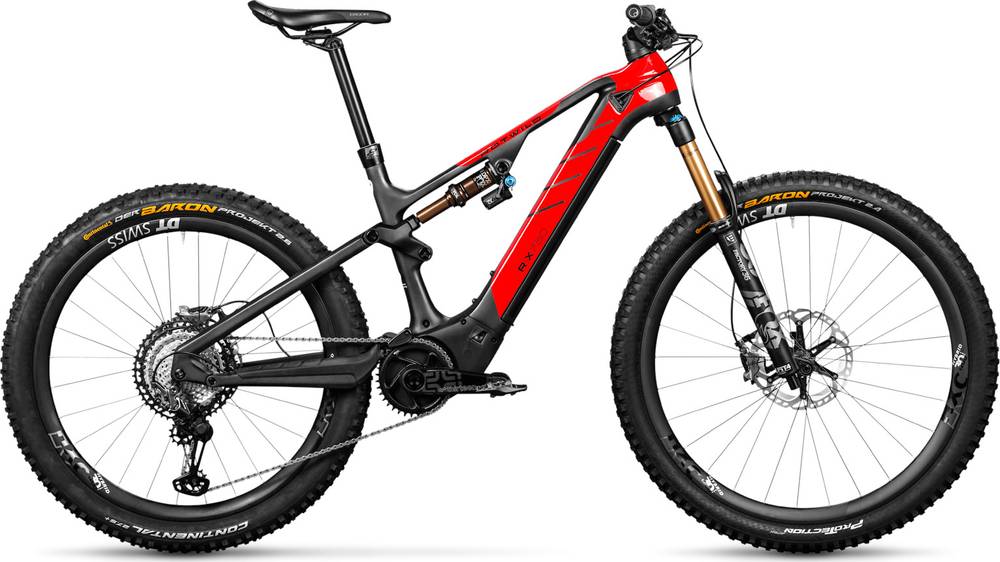

R.X750 Ultra is part of the Rotwild E Rx750 model. Rotwild released 10 e-bikes variations of this model so far. You can easily view all of the Rotwild E Rx750 e-bikes models from 2020, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
R.X750 Ultra components
Fork
The R.X750 Ultra comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT DPX2 Factory E-Bike+, with a travel distance of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on R.X750 Ultra are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Rotwild R.X750 Ultra has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the R.X750 Ultra. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
