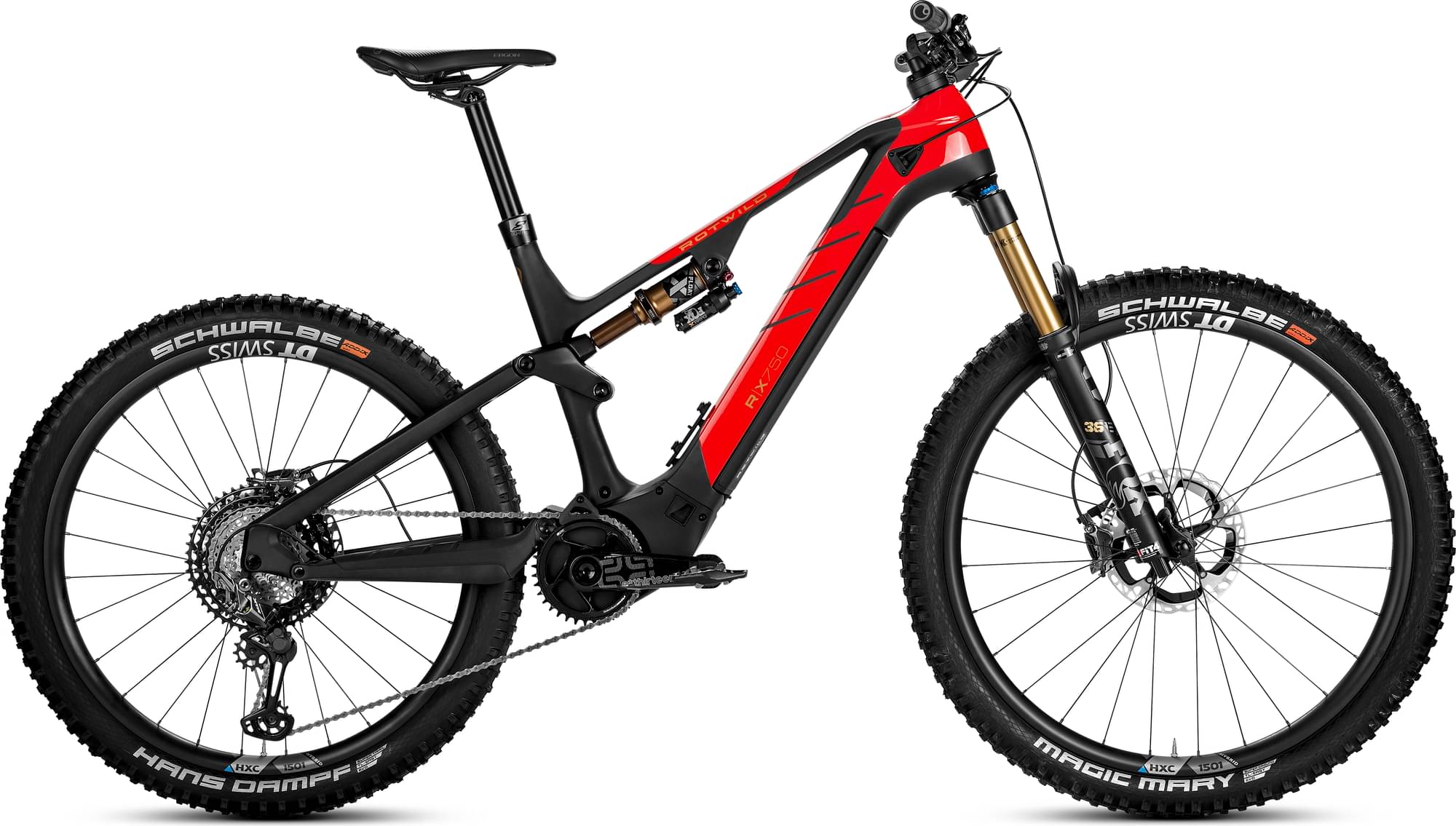

Rotwild R.X750 ULTRA 2023
2023 E-bike
Estimate price |
13,959$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 152mm -
Fork Fox Factory Float 36
-
Groupset XTR, e*thirteen -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery IPU750 CARBON, IPU750 / 720 Wh / carbon / 3,5 kg / Quick Release / 4,5 A charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon, hand made, from high modulus carbon fibres
Suspension Fork
Fox 36 Float Factory Kashima, 150 mm travel / 110x15 mm / 44 mm offset / OD Crown
Rear Shock
Fox Float X Factory Kashima, 152 mm travel / 205x60 mm / Trunnion (bushing f.) / 19.05 mm (bushing r.)
Drivetrain
Rear Derailleur
Shimano XTR 9100
Cassette
SHIMANO XTR 9100
Crank
e*thirteen Direct Mount Chainring
Chain
SHIMANO HG 7100
Chain Guide
ROTWILD SL750 2.0
Wheels
Tires
SCHWALBE Magic Mary / Hans Dampf
Brakes
Brakes
SHIMANO XTR 9120
Cockpit
Stem
ROTWILD S140 AL7075
Handlebar
ROTWILD B220 Carbon
Headset
ACROS RW750 1.5 Headset
Seat
Saddle
ERGON SM
Seatpost
Eightpins NGS 2
Motor & Battery
Motor
brose Drive S Mag, Brose Drive S Mag / Air Cooler / up to 90 Nm torque
Battery
IPU750 CARBON, IPU750 / 720 Wh / carbon / 3,5 kg / Quick Release / 4,5 A charger
Charger
4,5 A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.36 mm | 1.3 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 727 mm | 753 mm | 791 mm | 825 mm |
| Rake | 52 mm | 44 mm | 42 mm | 40 mm |
| Trail | 110 mm | 119 mm | 121 mm | 123 mm |
| Stack | 606 mm | 613 mm | 633 mm | 644 mm |
| Reach | 401 mm | 433 mm | 464 mm | 496 mm |
| Top Tube Length | 584 mm | 613 mm | 650 | 684 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1168 mm | 1194 mm | 1232 mm | 1266 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 746 mm | 746 mm | 746 mm | 746 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
R.X750 ULTRA is a Rotwild E Rx750 model. Rotwild released 10 e-bikes variations of this model so far. Take a sneak peek at all Rotwild E Rx750 e-bikes models from 2023, by clicking here.
Model range prices
Rotwild R.X750 CORE 2023 is the most affordable e-bike of this model and has a price of 8493$. On the other hand, Rotwild R.X750 ULTRA 2023, is the most expensive and costs 12740$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 12740$. Doing a quick comparison, we notice that R.X750 ULTRA price is 166.25% more expensive than the average cost of an Enduro e-bike.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float X Factory Kashima rear shock model, which has a travel of 152mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on R.X750 ULTRA are the 29″ type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The R.X750 ULTRA comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
R.X750 ULTRA comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Rotwild R.X750 ULTRA includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
