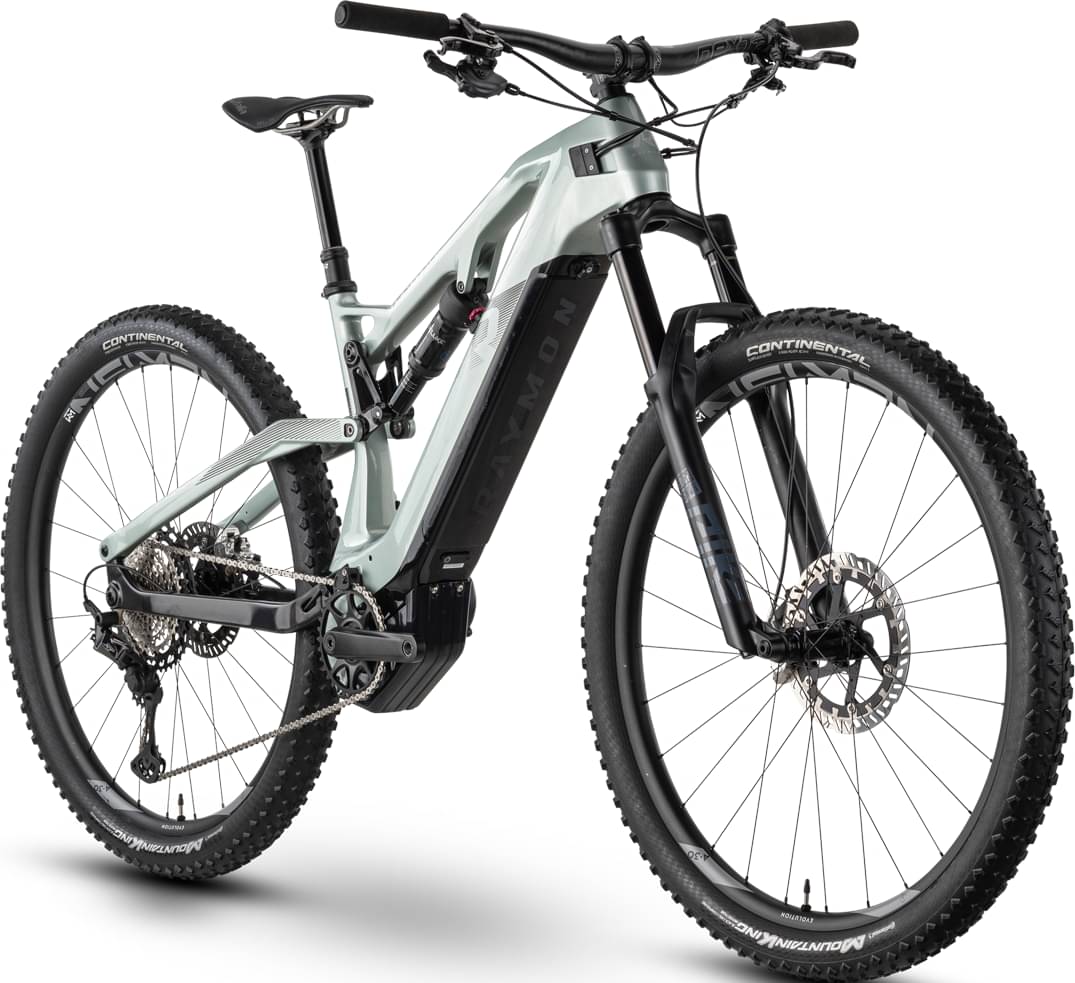

rraymon R RAYMON AirRay 11.0 2022
2022 E-bike
Estimate price |
7,798$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork DT Swiss F 535 ONE
-
Groupset GX Eagle -
Suspension Full -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Carbon, Integrated battery, Boost, 150 mm
Suspension Fork
DT Swiss F 535 One, Air, 150 mm, tapered
Rear Shock
DT Swiss R 535 One, Air, 230x65 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-S
Shift Levers
Yamaha X
Cassette
SRAM PG-1230, 10-51 T
Crank
R Raymon, Narrow Wide, 34 T
Chain
SRAM GX Eagle
Wheels
Rims
NEWMEN Evolution SL A.30, Tubeless ready, 6-hole, 15x110/12x148 mm, thru axle
Tires
Continental Mountain King, 29x2.3
Brakes
Brakes
Formula Cura 4, 4-piston, Hydraulic disc brake
Cockpit
Stem
Race Face Affect 35 mm, 0 °, Ahead
Handlebar
Race Face Next Carbon 35 mm, 780 mm, Sweep: 8 °, Rise: 20 mm
Grips
R Raymon MTB light
Seat
Seatpost
R Raymon Pro, 31.6 mm, Dropper post
Motor & Battery
Motor
AIR DRIVE powered by Yamaha, 250 W, 50 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Interface X, LED-Display, ANT, Bluetooth
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 776 mm | 791 mm | 816 mm | 843 mm |
| Rake | 45 mm | 45 mm | 43 mm | 44 mm |
| Trail | 121 mm | 121 mm | 123 mm | 122 mm |
| Stack | 635 mm | 635 mm | 640 mm | 649 mm |
| Reach | 440 mm | 455 mm | 479 mm | 501 mm |
| Top Tube Length | 583 mm | 598 mm | 623 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 125 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1243 mm | 1258 mm | 1283 mm | 1310 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
AirRay 11.0 is part of the Rraymon E Airray model. 3 e-bikes variations carry this model name so far. You can easily view all of the Rraymon E Airray e-bikes models from 2022, here.
Model range prices
R RAYMON AirRay 10.0 2022 is the cheapest e-bike model and costs 6157$. R RAYMON AirRay 12.0 2022 is the most expensive one and costs 7962$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 7219$. In conclusion, this e-bike price is 50.87% higher than the price of the average Enduro e-bike.
AirRay 11.0 components
Fork
R RAYMON AirRay 11.0 2022 e-bike is equipped with the DT Swiss F 535 ONE fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The AirRay 11.0 has a rear shock with a travel of 150mm. The model DT Swiss R 535 One is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the AirRay 11.0 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AirRay 11.0 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
