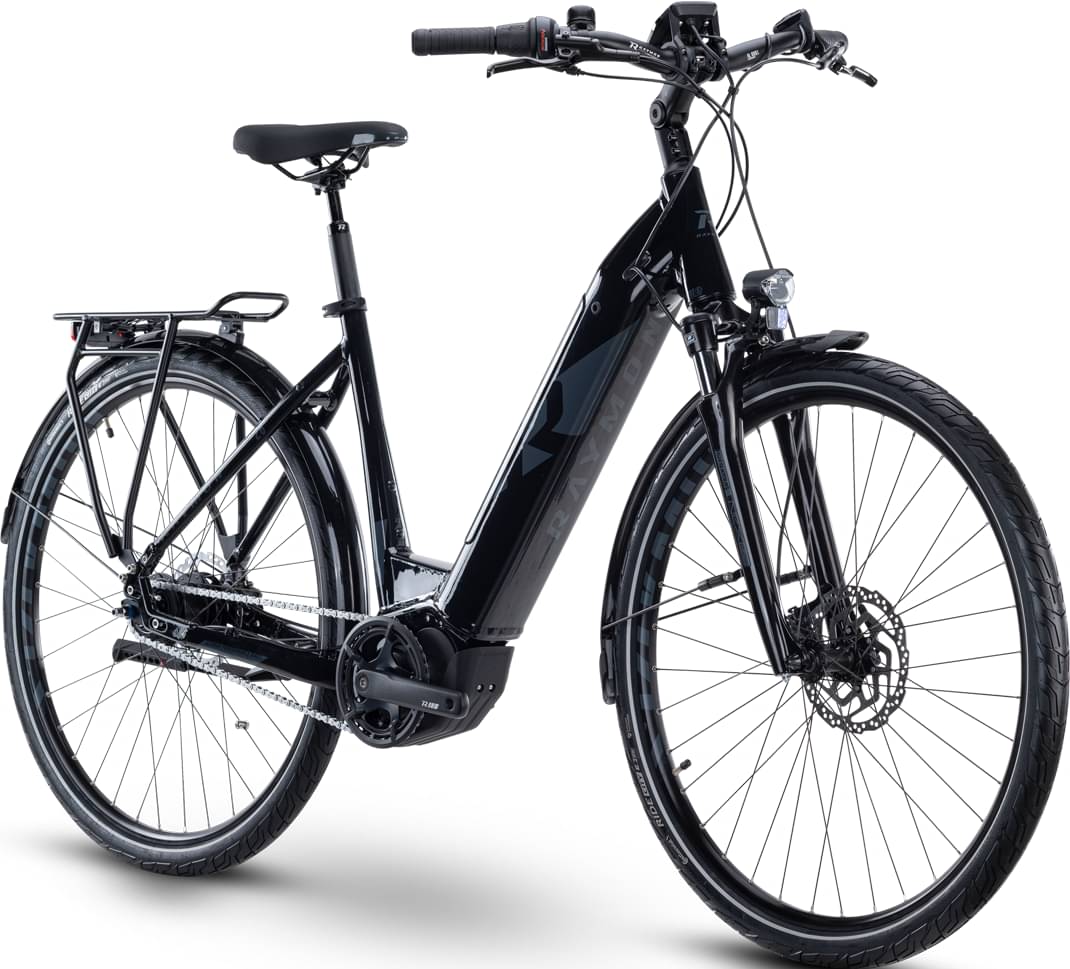

rraymon R RAYMON CityRay E 7.0 CB 2022
2022 E-bike
Estimate price |
3,784$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR NEX-E25, Coil, 50 mm
Drivetrain
Shift Levers
Yamaha C
Cassette
Shimano SM-Gear, 19
Crank
R Raymon, 38 T
Chain
KMC Z1
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano SM-Gear, 19
Tires
Continental Ride City, Reflex, 47-622, 26x1.75
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 300 mm
Motor & Battery
Motor
Yamaha PW-CE, 250 W, 50 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Bluetooth
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.41 mm |
| Front Center | 705 mm | 717 mm | 729 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 84 mm | 84 mm | 84 mm |
| Stack | 630 mm | 634 mm | 639 mm |
| Reach | 432 mm | 442 mm | 452 mm |
| Top Tube Length | 615 mm | 626 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 155 mm | 160 mm | 165 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1166 mm | 1178 mm | 1190 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CityRay E 7.0 CB completes the Rraymon E Cityray model. There are 21 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
R RAYMON CityRay E 1.0 400 2022 is the most economical model, with a starting price of 2653$. R RAYMON CityRay E 7.0 CB 2022 on the other hand costs 3503$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When R RAYMON released this model in 2022, its price was 3503$. Doing a quick comparison, we notice that CityRay E 7.0 CB price is 36.36% more expensive than the average cost of a Commuter e-bike.
Overview of components
Fork
The CityRay E 7.0 CB comes factory-installed with the Suntour NEX fork. This has a travel range of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the CityRay E 7.0 CB model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CityRay E 7.0 CB comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
CityRay E 7.0 CB comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
