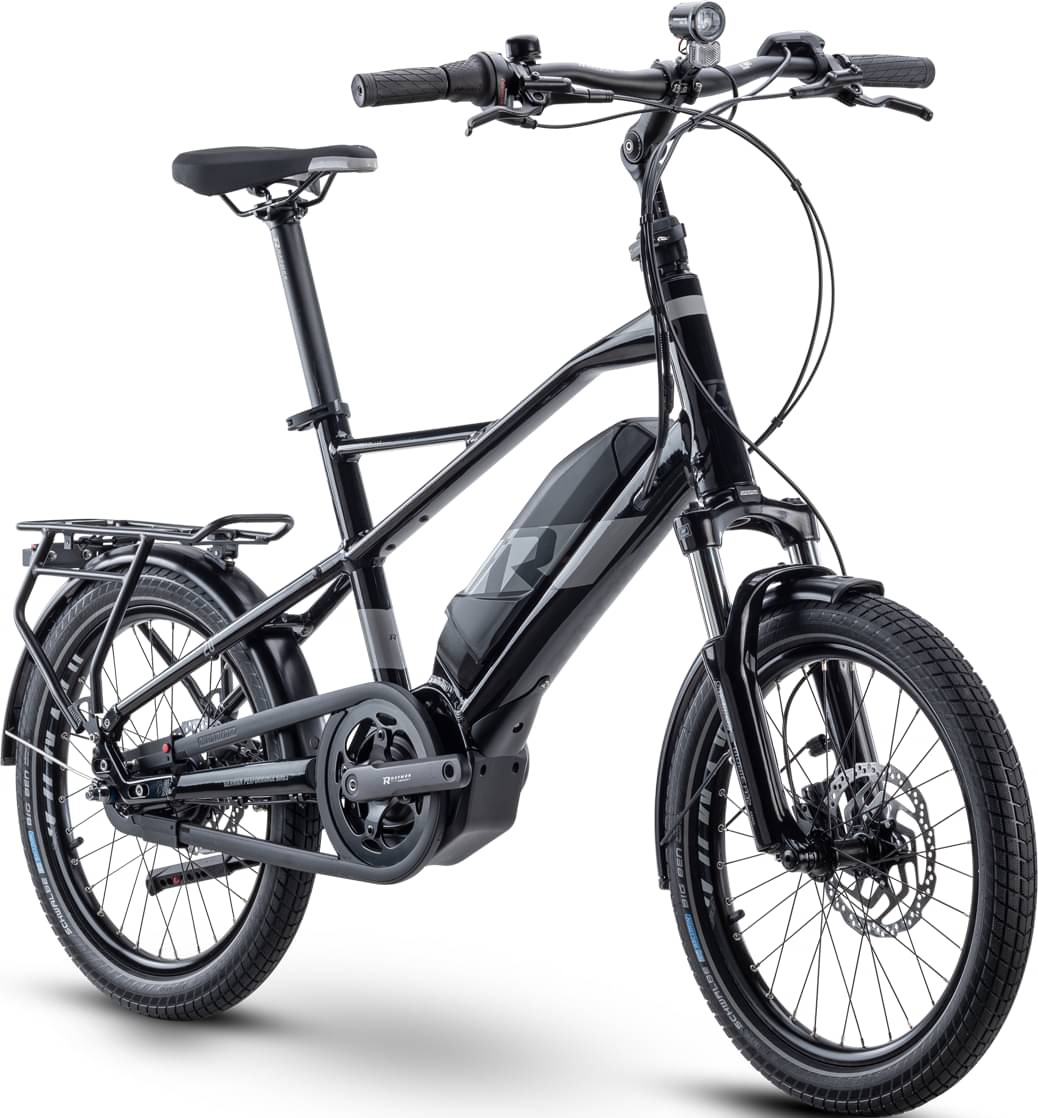

rraymon R RAYMON CompactRay E 3.0 2021

2021 E-bike
Estimate price | 3,554$
E-bike
Open compare Use advisor
Rraymon Compactray E 3.0 2021

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame aluminium
  • Wheels 20"
  • Fork Suntour MOBIE
  • Groupset Nexus
  • Suspension Hardtail
  • Motor Yamaha 250W 50Nm mid-drive
  • Battery Yamaha DT500, 500 Wh, 36 V
  • Drivetrain Internally Geared Hub
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

20", Alloy 6061, External battery

Suspension Fork

SR SUNTOUR Mobie-A32 NLO

Drivetrain

Shift Levers

Shimano Nexus, SL-C3000, Revo Shift, 7-speed

Cassette

Shimano SM-Gear, 16

Chain

KMC Z1 Narrow

Pedals

R Raymon Plastic

Wheels

Rims

Rim: Mach1 650, Front Hub: Shimano MT400B, 15x100mm, Rear Hub: Shimano SG-C3001-7D

Tires

Schwalbe Big Ben, Performance, Reflex, 55-406, 20x2.1

Brakes

Brakes

Shimano BR-MT200, 2-piston, Hydraulic disc brake

Cockpit

Stem

R Raymon 31.8

Handlebar

R Raymon 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm

Grips

R Raymon Ergo

Seat

Saddle

R Raymon Ergo

Seatpost

R Raymon, 34.9 mm

Motor & Battery

Motor

Yamaha PW-CE, 250W, 50Nm

Battery

Yamaha DT500, 500 Wh, 36 V

Remote

Yamaha Display A, LCD-Display

Charger

Yamaha rapid charger, 4 A

Fit data

Geometry

Numbers for sizing and ride feel.

SizeUNI
Stack Reach Ratio
1.28 mm
Front Center
654 mm
Rake
63 mm
Stack
527 mm
Reach
412 mm
Top Tube Length
608 mm
Seat Tube Angle
69.5 °
Seat Tube Length
420 mm
Head Tube Angle
70 °
Head Tube Length
220 mm
Chainstay Length
448 mm
Wheelbase
1100 mm
Bottom Bracket Drop
36 mm
Wheels20"
Rider Min Height120 cm

Model Overview

CompactRay E 3.0 is part of the Rraymon E Compactray model. 2 e-bikes variations carry this model name so far. Take a sneak peek at all Rraymon E Compactray e-bikes models from 2021, by clicking here.

Model range prices

R RAYMON CompactRay E 3.0 2021 is the cheapest e-bike model and costs 3290$. R RAYMON CompactRay E 4.0 2021 is the most expensive one and costs 3715$.

Safety

Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.

Average price for Commuter e-bikes

If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.

This e-bike was released in 2021 and its price was 3290$. If we compare this with the average Commuter e-bike cost we notice that the price is 28.07% higher.

Overview of components

Fork

The Suntour MOBIE is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

Wheels size

When it comes to wheels, the CompactRay E 3.0 e-bike is equipped with the 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.

Brakes

When you want to stop the bike in time, the brakes are vital. The CompactRay E 3.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
