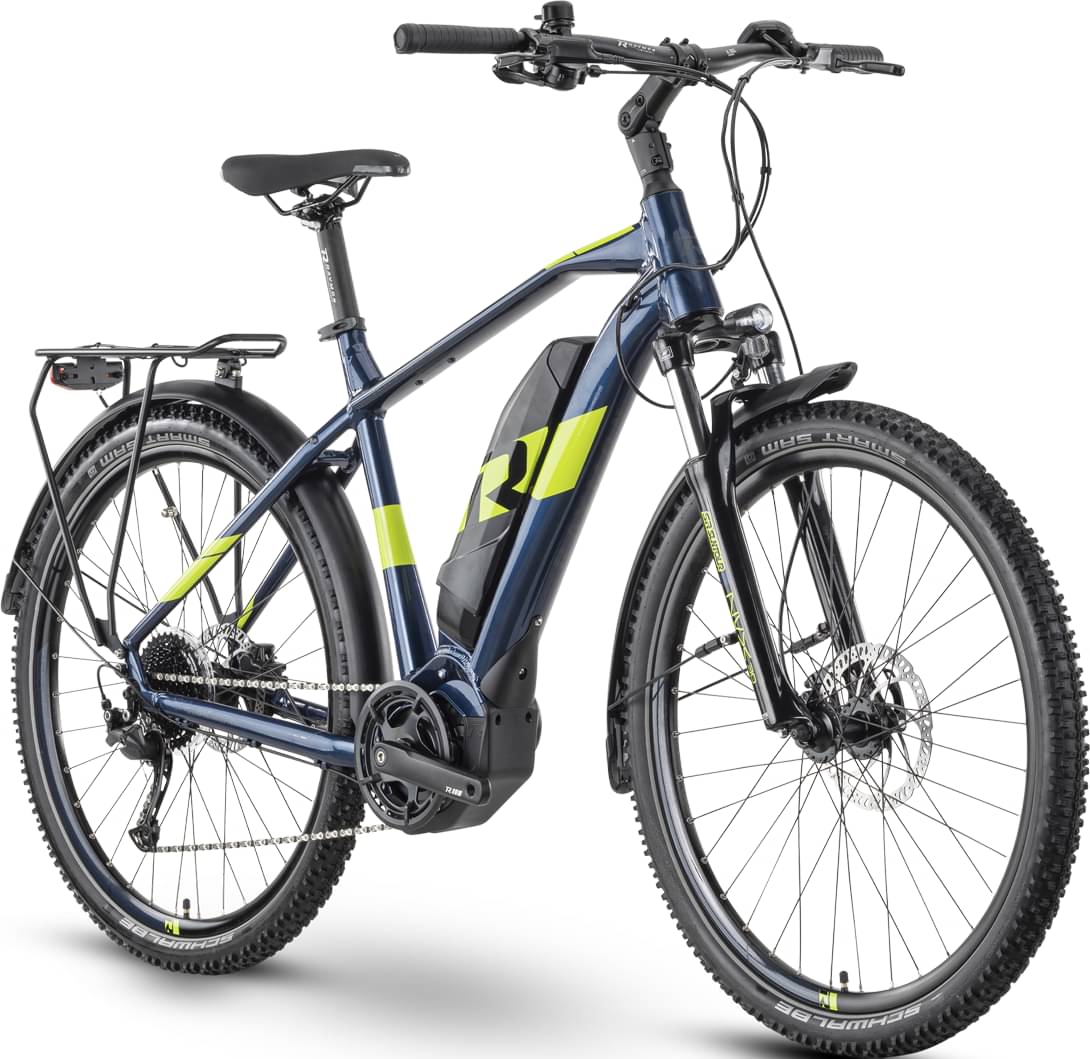

rraymon R RAYMON CrossRay E 3.0 2022
2022 E-bike
Estimate price |
3,210$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 80mm -
Fork Suntour
-
Groupset Alivio -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha DT500, 500 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR NVX, Coil, 80 mm
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100, Shadow, 9-S
Shift Levers
Integrated into display
Cassette
Shimano CS-HG200, 11-36 T
Crank
R Raymon, 38 T
Chain
KMC e9S
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-HG200, 11-36 T
Tires
Schwalbe Smart Sam, Active, Reflex, 54-584, 27.5x2.1
Brakes
Brakes
Clarks M2, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, Ahead, adjustable
Handlebar
R Raymon Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250 W, 60 Nm
Battery
Yamaha DT500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.56 mm | 1.52 mm | 1.48 mm |
| Front Center | 651 mm | 671 mm | 692 mm | 713 mm |
| Rake | 44 mm | 43 mm | 44 mm | 45 mm |
| Trail | 86 mm | 87 mm | 86 mm | 85 mm |
| Stack | 602 mm | 612 mm | 621 mm | 630 mm |
| Reach | 374 mm | 392 mm | 409 mm | 425 mm |
| Top Tube Length | 560 mm | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1114 mm | 1135 mm | 1156 mm | 1177 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
CrossRay E 3.0 is a Rraymon E Crossray model. R RAYMON released 13 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
R RAYMON CrossRay E 3.0 2022 is the most affordable e-bike of this model and has a price of 2972$. On the other hand, R RAYMON CrossRay E 8.0 2022, is the most expensive and costs 4777$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, R RAYMON CrossRay E 3.0 price was 2972$. In conclusion, this e-bike price is 19.84% more expensive than the price of the average Hybrid e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour model. The travel on this model is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the CrossRay E 3.0 model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON CrossRay E 3.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
