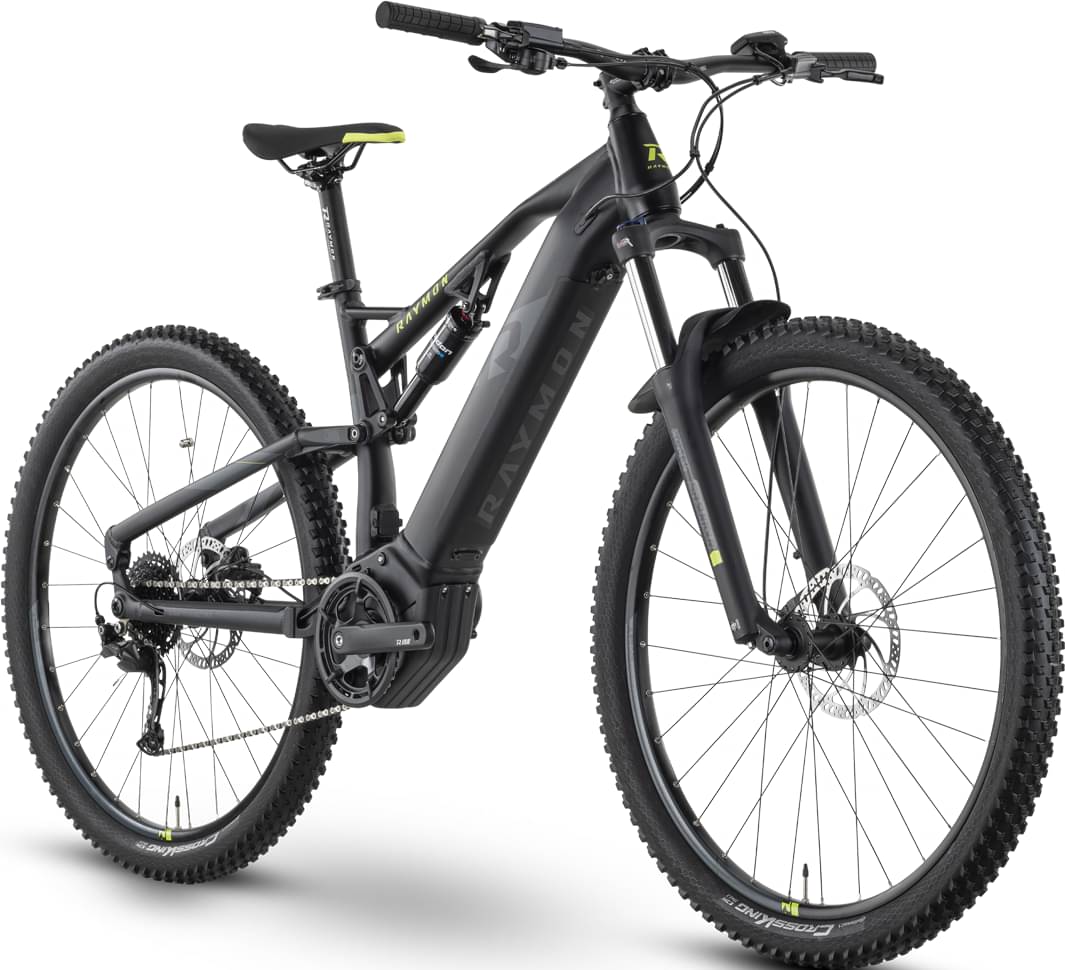

rraymon R RAYMON FullRay 130E 4.0 2022
2022 E-bike
Estimate price |
4,071$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Full -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery, Boost, 130 mm
Suspension Fork
SR SUNTOUR XCM34 Boost LO, Coil, 130 mm, tapered
Rear Shock
SR SUNTOUR Raidon R, Air, 210x55 mm
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100, Shadow, 9-S
Shift Levers
Integrated into display
Cassette
Shimano CS-HG200, 11-36 T
Crank
R Raymon, 38 T
Chain
KMC e9S
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-HG200, 11-36 T
Tires
Continental Cross King, 58-622, 29x2.3
Brakes
Brakes
Tektro Draco, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °, Ahead
Handlebar
R Raymon Riser 31.8 mm, 780 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon MTB, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250 W, 60 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.29 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm |
| Front Center | 750 mm | 779 mm | 813 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm |
| Stack | 618 mm | 628 mm | 637 mm |
| Reach | 438 mm | 463 mm | 493 mm |
| Top Tube Length | 575 mm | 602 mm | 633 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1226 mm | 1255 mm | 1289 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
FullRay 130E 4.0 belongs to the Rraymon E Fullray model. R RAYMON released 19 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the R RAYMON FullRay 130E 4.0 2022 has a starting price of 3715$. R RAYMON FullRay 150E 11.0 2022 on the other hand is the most expensive at 5945$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When R RAYMON released this model in 2022, its price was 3715$. If we compare this with the average Trail e-bike cost we notice that the price is 10.4% more expensive.
Overview of components
Fork
The FullRay 130E 4.0 comes factory-installed with the Suntour XCM fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The FullRay 130E 4.0 has a rear shock with a travel of 130mm. The model SR SUNTOUR Raidon R is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, R RAYMON FullRay 130E 4.0 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The FullRay 130E 4.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
