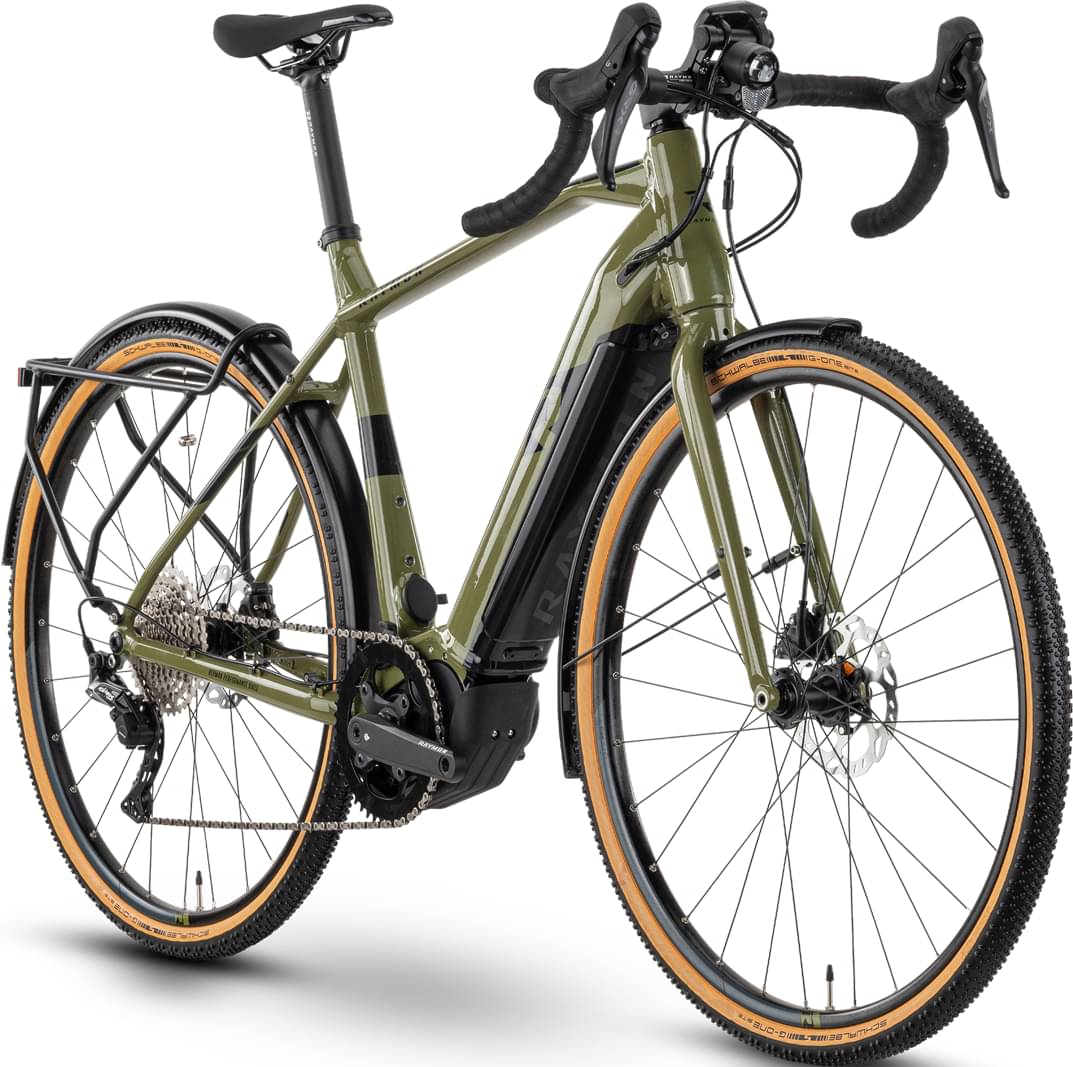

rraymon R RAYMON GravelRay E 7.5 2022
2022 E-bike
Estimate price |
4,885$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, Integrated battery
Suspension Fork
Alloy Gravel Disc, tapered
Drivetrain
Rear Derailleur
Shimano GRX, RD-RX812, Shadow Plus, 11-S
Shift Levers
Integrated into display
Cassette
Shimano CS-M5100, 11-42 T
Crank
R Raymon, Narrow Wide, 48 T
Chain
KMC e11S
Wheels
Rims
Shimano CS-M5100, 11-42 T
Tires
Schwalbe G-One Bite, Performance, 40-622, 28x1.5
Brakes
Brakes
Shimano BR-RX400, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 6 °, Ahead
Handlebar
R Raymon Drop 31.8 mm, 440 mm, Drop: 116 mm
Grips
R Raymon Tape
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 636 mm | 651 mm | 664 mm | 679 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 584 mm | 599 mm | 613 mm | 627 mm |
| Reach | 411 mm | 421 mm | 431 mm | 441 mm |
| Top Tube Length | 587 mm | 601 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 165 mm | 180 mm | 195 mm | 210 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1090 mm | 1105 mm | 1119 mm | 1134 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
GravelRay E 7.5 belongs to the Rraymon E Gravelray model. There are 5 e-bikes that carry this model name. Take a sneak peek at all Rraymon E Gravelray e-bikes models from 2022, by clicking here.
Model range prices
R RAYMON GravelRay E 6.5 2022 is the most affordable e-bike of this model and has a price of 4034$. On the other hand, R RAYMON GravelRay E 7.5 2022, is the most expensive and costs 4458$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 4458$. Comparing the average cost of a Gravel e-bike to this one, you will see that GravelRay E 7.5 price is 22.41% more expensive.
GravelRay E 7.5 components
Fork material
GravelRay E 7.5 has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the GravelRay E 7.5 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON GravelRay E 7.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
GravelRay E 7.5 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
