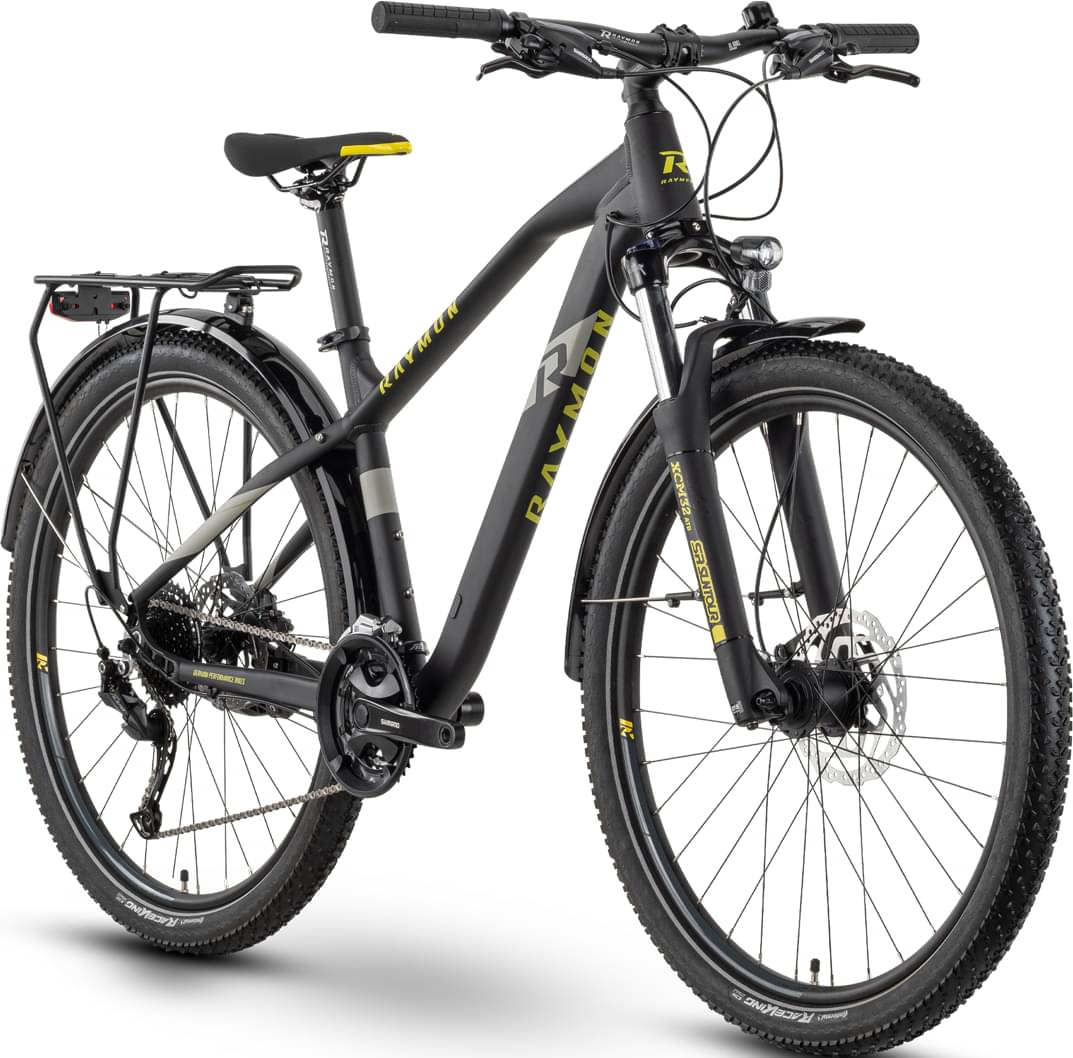

rraymon R RAYMON HardRay 3.5 2022
2022 Mountain
Estimate price |
985$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Alivio, Deore -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061
Suspension Fork
SR SUNTOUR XCT ATB HLO, Coil, 100 mm
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100, Shadow, 9-S
Shift Levers
Shimano Deore, FC-M4100
Cassette
Shimano CS-HG200, 11-36 T
Crank
Shimano Deore, FC-M4100, 36/30/26 T
Chain
KMC Z9
Wheels
Rims
Shimano CS-HG200, 11-36 T
Tires
Continental Race King, Reflex, 55-584, 27.5x2.150
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °
Handlebar
R Raymon Riser 31.8 mm, 680 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon MTB, Lock-on grips
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.59 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 303 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 610 mm | 649 mm | 678 mm | 692 mm |
| Rake | 52 mm | 39 mm | 46 mm | 40 mm |
| Trail | 74 mm | 88 mm | 80 mm | 87 mm |
| Stack | 562 mm | 626 mm | 642 mm | 654 mm |
| Reach | 363 mm | 394 mm | 410 mm | 426 mm |
| Top Tube Length | 547 mm | 586 mm | 607 mm | 627 mm |
| Seat Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 427 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1032 mm | 1089 mm | 1118 mm | 1132 mm |
| Bottom Bracket Drop | 52 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
HardRay 3.5 belongs to the Rraymon Hardray model. R RAYMON released 21 bikes variations of this model so far. Take a sneak peek at all Rraymon Hardray bikes models from 2022, by clicking here.
Model range prices
R RAYMON HardRay 2.0 2022 is the most affordable bike of this model and has a price of 668$. On the other hand, R RAYMON HardRay 8.0 2022, is the most expensive and costs 2866$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 912$. Comparing this to the average Crosscountry bike price, we see that the price is 108.88% smaller.
Overview of components
Fork
R RAYMON HardRay 3.5 2022 bike is equipped with the Suntour XCT fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The HardRay 3.5 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON HardRay 3.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
R RAYMON HardRay 3.5 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
