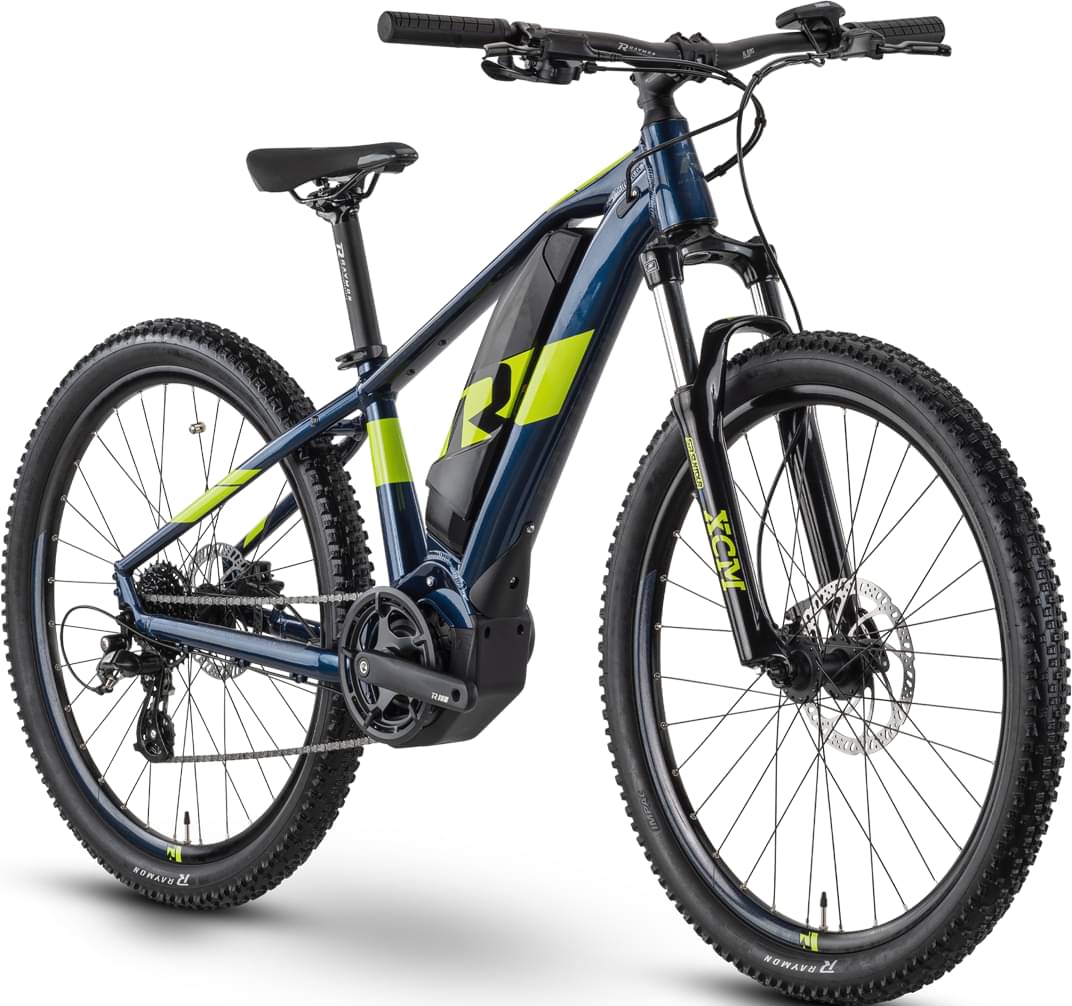

rraymon R RAYMON HardRay E 1.0 2022
2022 E-bike
Estimate price |
2,637$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 26" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha DT400, 400 Wh, 36 V -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR XCM, Coil, 100 mm
Drivetrain
Rear Derailleur
Shimano Altus, RD-M310, 8-S
Shift Levers
Integrated into display
Cassette
Shimano CS-HG200, 12-32 T
Crank
R Raymon, 38 T
Chain
KMC Z8
Pedals
R Raymon, plastic
Wheels
Rims
Shimano CS-HG200, 12-32 T
Tires
Impac Ridgepac, 57-559, 26x2.25
Brakes
Brakes
Tektro HD-M276, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °, Ahead
Handlebar
R Raymon Riser 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon MTB, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, Patent
Motor & Battery
Motor
Yamaha PW-CE, 250 W, 50 Nm
Battery
Yamaha DT400, 400 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | UNI | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.61 mm | 1.56 mm | 1.49 mm | 1.44 mm | 1.39 mm |
| Bottom Bracket Height | 313 mm | 308 mm | 308 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 639 mm | 652 mm | 673 mm | 718 mm | 738 mm | 759 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 62 mm | 40 mm |
| Trail | 80 mm | 87 mm | 87 mm | 84 mm | 65 mm | 102 mm |
| Stack | 576 mm | 618 mm | 627 mm | 639 mm | 644 mm | 648 mm |
| Reach | 396 mm | 384 mm | 401 mm | 428 mm | 447 mm | 465 mm |
| Top Tube Length | 561 mm | 561 mm | 581 mm | 611 mm | 631 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 360 mm | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 69 ° | 69 ° | 68 ° | 69 ° | 67 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 451 mm | 466 mm | 466 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1088 mm | 1116 mm | 1137 mm | 1188 mm | 1208 mm | 1229 mm |
| Bottom Bracket Drop | 30 mm | 35 mm | 35 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview
HardRay E 1.0 is part of the Rraymon E Hardray model. R RAYMON released 23 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
R RAYMON HardRay E 1.0 2022 is the most affordable e-bike of this model and has a price of 2441$. On the other hand, R RAYMON HardRay E 7.0 2022, is the most expensive and costs 4246$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 2441$. In conclusion, this e-bike price is 0.49% lower than the price of the average Crosscountry e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the HardRay E 1.0 model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The HardRay E 1.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
