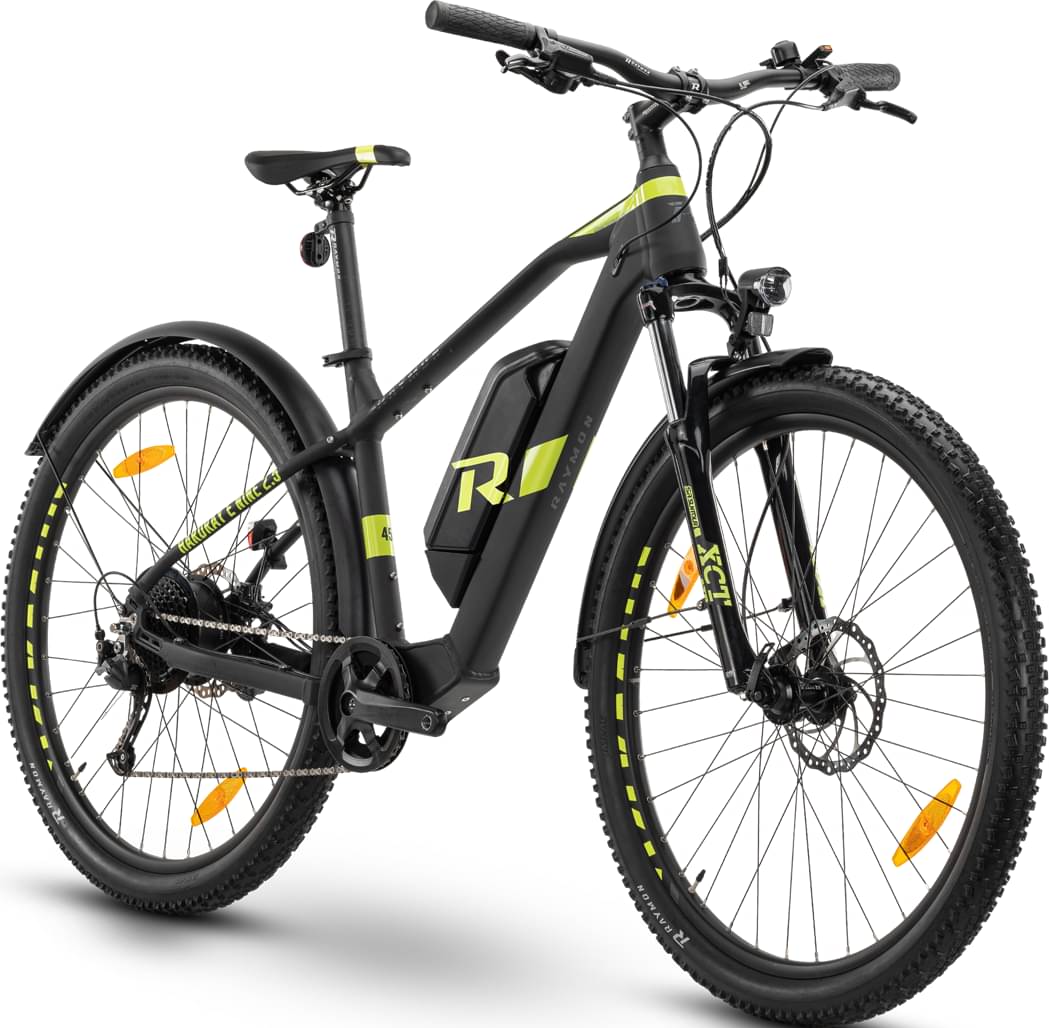

rraymon R RAYMON HardRay E-Nine 2.5 Street 2021
2021 E-bike
Estimate price |
2,178$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Fork Suntour XCT -
Groupset Altus -
Suspension Hardtail -
Motor 250W 60Nm hub-drive -
Battery SR SUNTOUR Battery, 400 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR XCT30 HLO
Drivetrain
Rear Derailleur
Shimano Altus, RD-M2000, Shadow, 9-S
Shift Levers
Shimano Altus, SL-M2010, Rapidfire Plus, 9-speed
Cassette
Shimano CS-HG200, 11-36 T
Chain
KMC e9s
Pedals
R Raymon
Wheels
Rims
Rim: Ryde Rival23, Front Hub: R Raymon MD-JA159F, 9x100mm
Tires
Impac Ridgepac, 57-622, 29x2.25
Brakes
Brakes
Tektro HD-M275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 8 °
Handlebar
R Raymon 31.8 mm, 710 mm, Sweep: 10 °, Rise: 30 mm
Grips
R Raymon MTB, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
SR Suntour R250HP, 250W, 60Nm
Battery
SR SUNTOUR Battery, 400 Wh, 36 V
Remote
SR SUNTOUR, OLED-Display
Charger
Phylion Battery Charger, 2 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.4 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 718 mm | 738 mm | 759 mm |
| Rake | 51 mm | 50 mm | 52 mm |
| Trail | 96 mm | 97 mm | 95 mm |
| Stack | 637 mm | 642 mm | 646 mm |
| Reach | 426 mm | 445 mm | 463 mm |
| Top Tube Length | 609 mm | 629 mm | 649 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1186 mm | 1206 mm | 1227 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
HardRay E-Nine 2.5 Street completes the Rraymon E Hardray model. 23 e-bikes variations carry this model name so far. You can easily view all of the Rraymon E Hardray e-bikes models from 2021, here.
Model range prices
R RAYMON HardRay E-Seven 2.0 2021 is the most economical model, with a starting price of 1910$. R RAYMON HardRay E-Seven 8.0 2021 on the other hand costs 4034$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When R RAYMON released this model in 2021, its price was 2016$. Comparing this to the average Crosscountry e-bike price, we see that the price is 21.68% lower.
HardRay E-Nine 2.5 Street components
Fork
The fork installed on this bike is the Suntour XCT model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the HardRay E-Nine 2.5 Street e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The HardRay E-Nine 2.5 Street has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
HardRay E-Nine 2.5 Street comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
