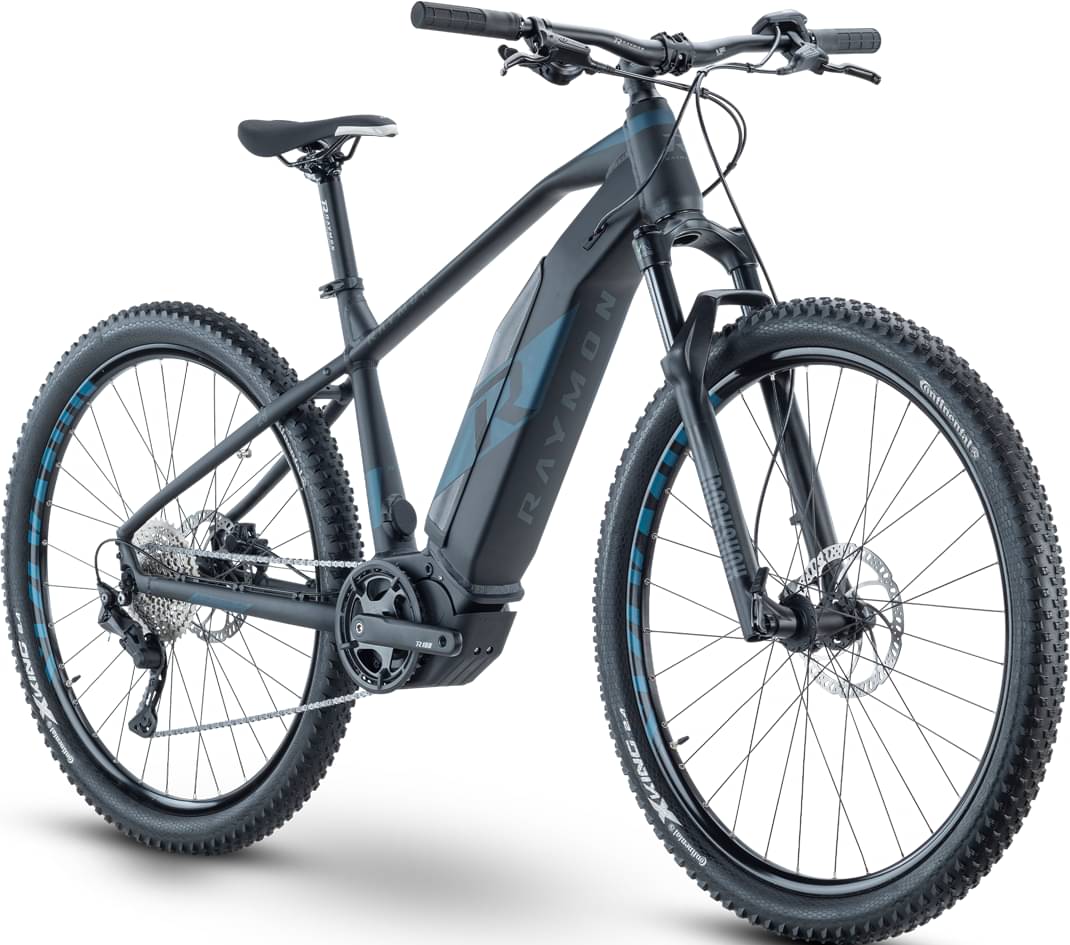

rraymon R RAYMON HardRay E-Nine 6.0 2021
2021 E-bike
Estimate price |
3,373$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Fork RockShox Recon Silver RL -
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Partially integrated battery
Suspension Fork
RockShox Recon Silver RL, Solo Air
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow, 10-S
Shift Levers
Shimano Deore, SL-M4100, Rapidfire Plus, 10-speed
Cassette
Shimano CS-M4100, 11-42 T
Chain
KMC e10S
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Traxx, Front Hub: R Raymon DA211F, 15x110mm, Rear Hub: R Raymon DN662R, 9x141mm
Tires
Continental Cross King, 58-584, 27.5x2.3
Brakes
Brakes
Tektro HD-M275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °
Handlebar
R Raymon 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon Ergo
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250W, 70Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.44 mm | 1.43 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm |
| Front Center | 733 mm | 743 mm | 754 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm |
| Stack | 638 mm | 642 mm | 647 mm |
| Reach | 436 mm | 445 mm | 453 mm |
| Top Tube Length | 619 mm | 629 mm | 639 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 145 mm | 150 mm | 155 mm |
| Chainstay Length | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1214 mm | 1224 mm | 1235 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
HardRay E-Nine 6.0 completes the Rraymon E Hardray model. R RAYMON released 23 e-bikes variations of this model so far. You can easily view all of the Rraymon E Hardray e-bikes models from 2021, here.
Model range prices
R RAYMON HardRay E-Seven 2.0 2021 is the cheapest e-bike model and costs 1910$. R RAYMON HardRay E-Seven 8.0 2021 is the most expensive one and costs 4034$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 3078$. Comparing this to the average Crosscountry e-bike price, we see that the price is 25.48% higher.
Overview of components
Fork
The HardRay E-Nine 6.0 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, R RAYMON HardRay E-Nine 6.0 2021, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON HardRay E-Nine 6.0 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
