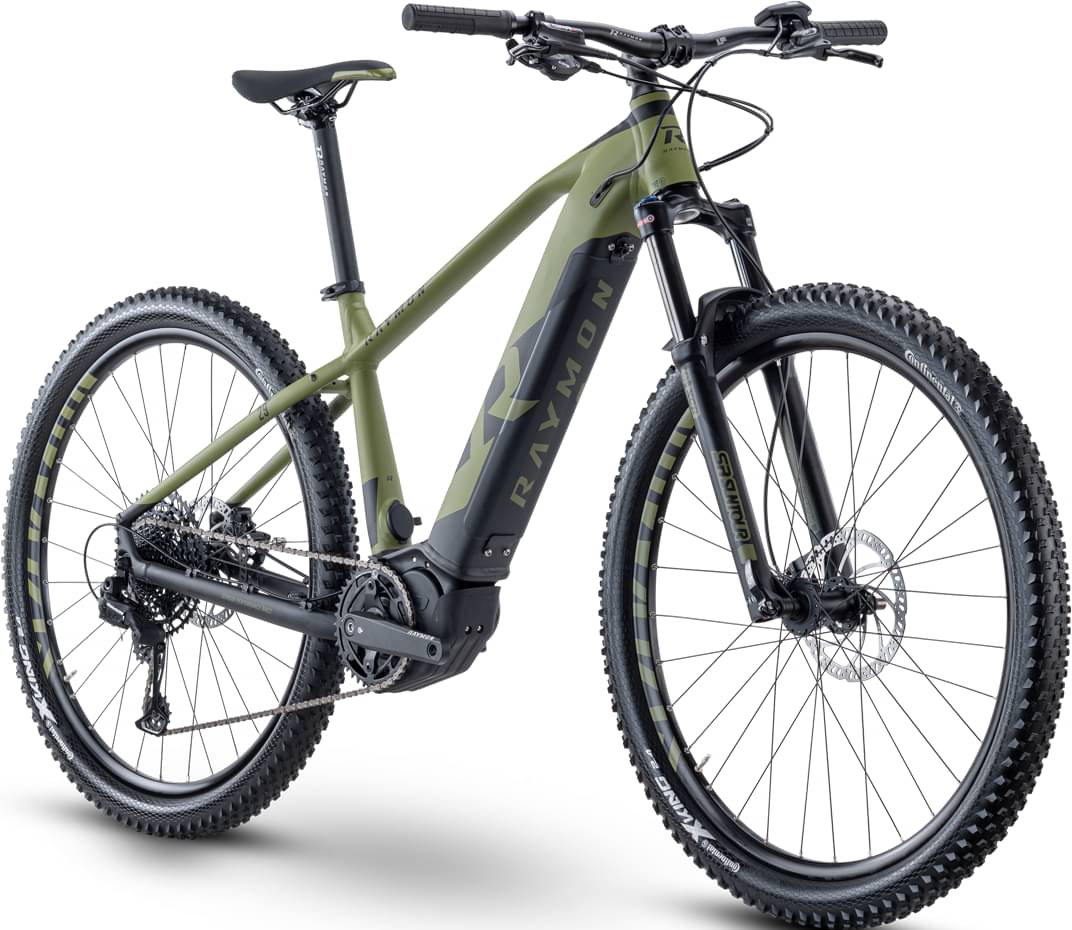

rraymon R RAYMON HardRay E-Nine 7.0 2021
2021 E-bike
Estimate price |
3,838$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Fork Suntour XCR 32 -
Groupset SX Eagle -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR XCR32 Boost, LOR
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-S
Shift Levers
SRAM SX Eagle, Single Click, 12-speed
Cassette
SRAM PG-1210, 11-50 T
Chain
SRAM SX Eagle
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Traxx, Front Hub: R Raymon DA211F, 15x110mm, Rear Hub: R Raymon DN662R, 9x141mm
Tires
Continental Cross King, 58-584, 27.5x2.3
Brakes
Brakes
Tektro HD-M520, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °
Handlebar
R Raymon 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon Ergo
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250W, 70Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 741 mm | 751 mm | 769 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 113 mm | 113 mm | 113 mm |
| Stack | 655 mm | 655 mm | 673 mm |
| Reach | 439 mm | 449 mm | 459 mm |
| Top Tube Length | 627 mm | 637 mm | 652 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1219 mm | 1229 mm | 1247 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
HardRay E-Nine 7.0 is part of the Rraymon E Hardray model. 23 e-bikes variations carry this model name so far. Take a sneak peek at all Rraymon E Hardray e-bikes models from 2021, by clicking here.
Model range prices
R RAYMON HardRay E-Seven 2.0 2021 is the most affordable e-bike of this model and has a price of 1910$. On the other hand, R RAYMON HardRay E-Seven 8.0 2021, is the most expensive and costs 4034$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 3503$. Doing a quick comparison, we notice that HardRay E-Nine 7.0 price is 42.8% more expensive than the average cost of a Crosscountry e-bike.
HardRay E-Nine 7.0 components
Fork
R RAYMON HardRay E-Nine 7.0 2021 e-bike is equipped with the Suntour XCR 32 fork, and has mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the HardRay E-Nine 7.0 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
