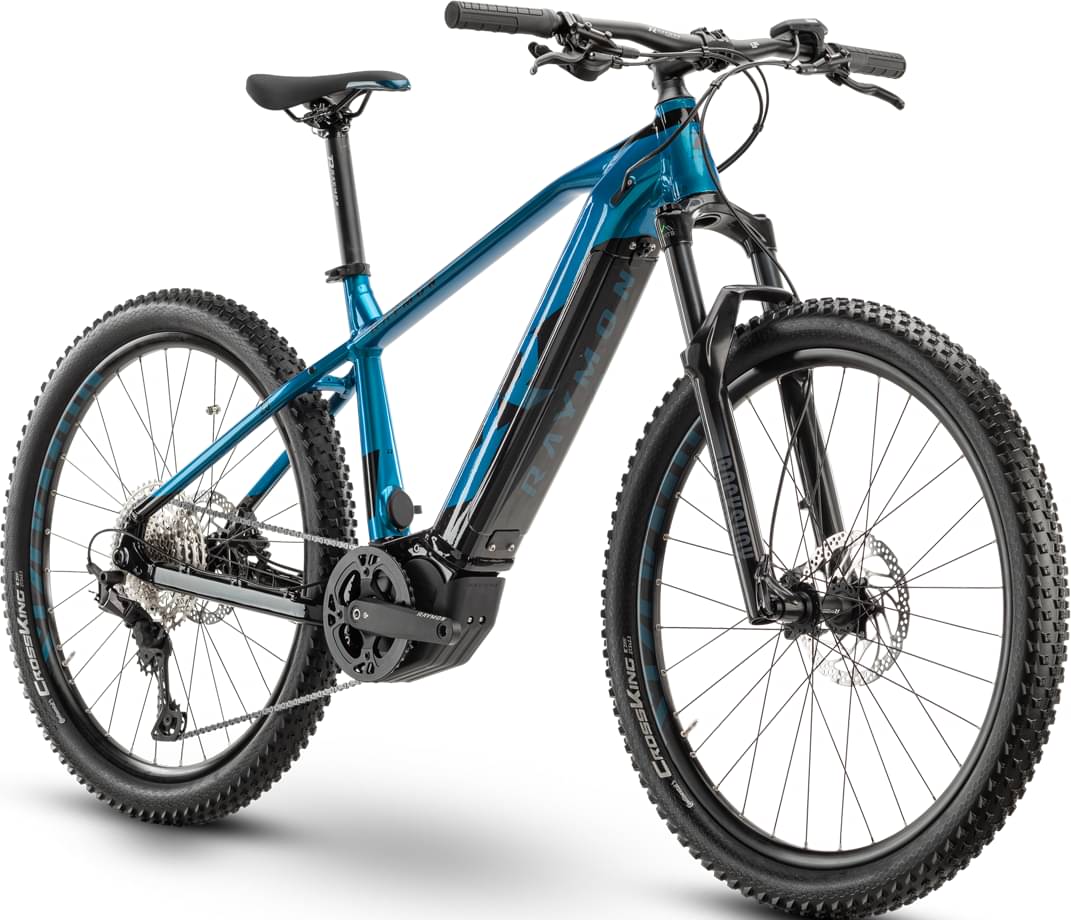

rraymon R RAYMON HardRay E-Nine 8.0 2021
2021 E-bike
Estimate price |
4,357$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Fork RockShox Recon Silver RL -
Groupset XT, Deore -
Suspension Hardtail -
Motor Yamaha 250W 80Nm mid-drive -
Battery Simplo EnergyTube, 630 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery
Suspension Fork
RockShox Recon Silver RL, Solo Air
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus, 12-S
Shift Levers
Shimano Deore, SL-M6100, Rapidfire Plus, 12-speed
Cassette
Shimano CS-M6100, 10-51 T
Chain
KMC e12S
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Traxx, Hubs: R Raymon DA210, Centerlock, 15x110/12x148mm
Tires
Continental Cross King, 58-584, 27.5x2.3
Brakes
Brakes
Shimano BR-MT410, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °
Handlebar
R Raymon 31.8 mm, 680 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon Ergo
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-X2, 250W, 80Nm
Battery
Simplo EnergyTube, 630 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 741 mm | 751 mm | 769 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 113 mm | 113 mm | 113 mm |
| Stack | 655 mm | 655 mm | 673 mm |
| Reach | 439 mm | 449 mm | 459 mm |
| Top Tube Length | 627 mm | 637 mm | 652 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1219 mm | 1229 mm | 1247 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
HardRay E-Nine 8.0 is a Rraymon E Hardray model. R RAYMON released 23 e-bikes variations of this model so far. You can easily view all of the Rraymon E Hardray e-bikes models from 2021, here.
Model range prices
The most economical model, the R RAYMON HardRay E-Seven 2.0 2021 has a starting price of 1910$. R RAYMON HardRay E-Seven 8.0 2021 on the other hand is the most expensive at 4034$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When R RAYMON released this model in 2021, its price was 4034$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that HardRay E-Nine 8.0 price is 64.45% more expensive.
HardRay E-Nine 8.0 components
Fork
The HardRay E-Nine 8.0 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The HardRay E-Nine 8.0 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON HardRay E-Nine 8.0 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
