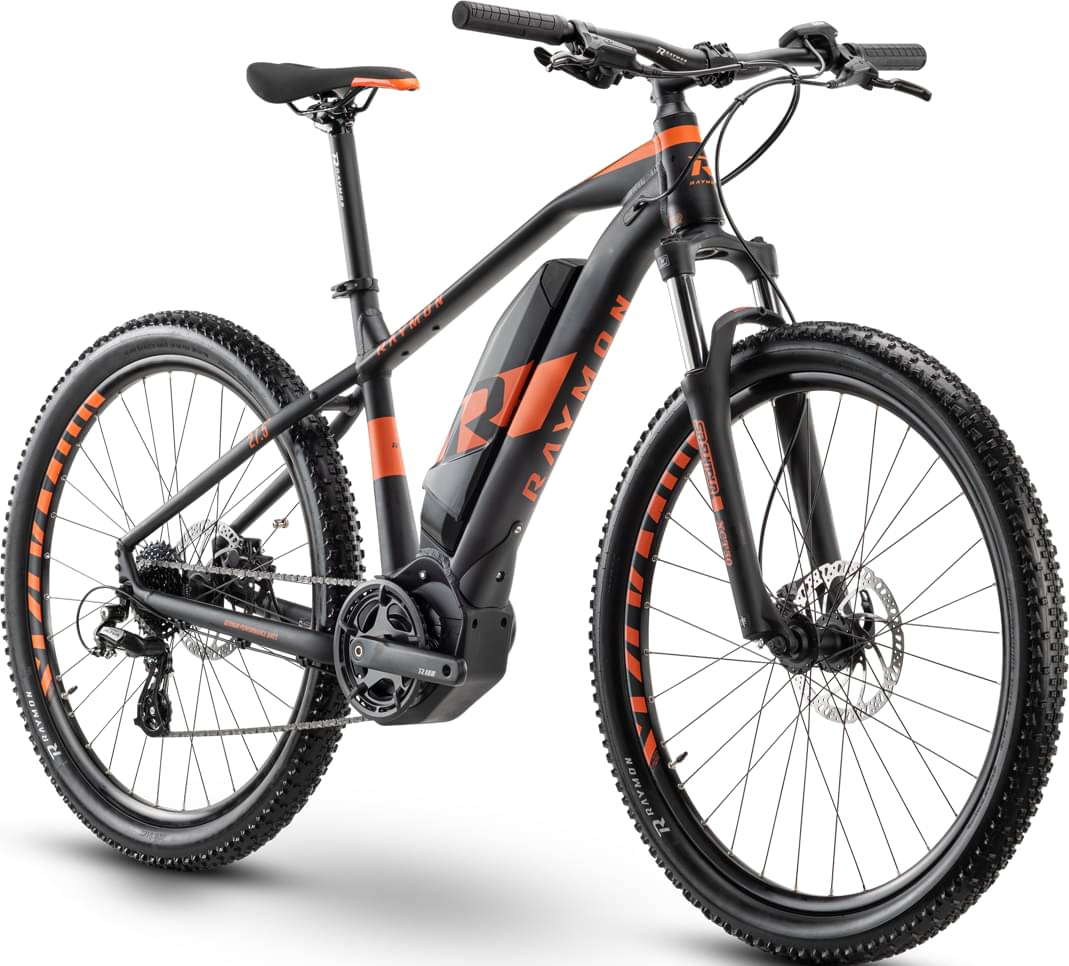

rraymon R RAYMON HardRay E-Seven 3.0 2021
2021 E-bike
Estimate price |
2,675$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Fork Suntour XCT -
Groupset Altus -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha DT400, 400 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR XCT30 HLO
Drivetrain
Rear Derailleur
Shimano Altus, RD-M310, 8-S
Shift Levers
Shimano Altus, SL-M315, Rapidfire Plus, 8-speed
Cassette
Shimano CS-HG200, 12-32 T
Chain
KMC Z8.3
Pedals
R Raymon Plastic
Wheels
Rims
Rim: Mach1 Traxx, Hubs: R Raymon DB-600F, 9x100/9x135mm
Tires
Impac Ridgepac, 57-584, 27.5x2.25
Brakes
Brakes
Tektro HD-M275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °
Handlebar
R Raymon 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon Ergo
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250W, 60Nm
Battery
Yamaha DT400, 400 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.57 mm | 1.51 mm | 1.45 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 652 mm | 673 mm | 693 mm | 713 mm |
| Rake | 42 mm | 42 mm | 41 mm | 39 mm |
| Trail | 91 mm | 91 mm | 93 mm | 95 mm |
| Stack | 611 mm | 620 mm | 624 mm | 630 mm |
| Reach | 377 mm | 394 mm | 414 mm | 434 mm |
| Top Tube Length | 554 mm | 574 mm | 594 mm | 614 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 360 mm | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1109 mm | 1130 mm | 1150 mm | 1170 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
HardRay E-Seven 3.0 completes the Rraymon E Hardray model. R RAYMON released 23 e-bikes variations of this model so far. Take a sneak peek at all Rraymon E Hardray e-bikes models from 2021, by clicking here.
Model range prices
R RAYMON HardRay E-Seven 2.0 2021 is the most affordable e-bike of this model and has a price of 1910$. On the other hand, R RAYMON HardRay E-Seven 8.0 2021, is the most expensive and costs 4034$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 2441$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 0.49% smaller.
HardRay E-Seven 3.0 components
Fork
The HardRay E-Seven 3.0 comes factory-installed with the Suntour XCT fork. This has a travel range of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on HardRay E-Seven 3.0 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON HardRay E-Seven 3.0 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
R RAYMON HardRay E-Seven 3.0 e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
