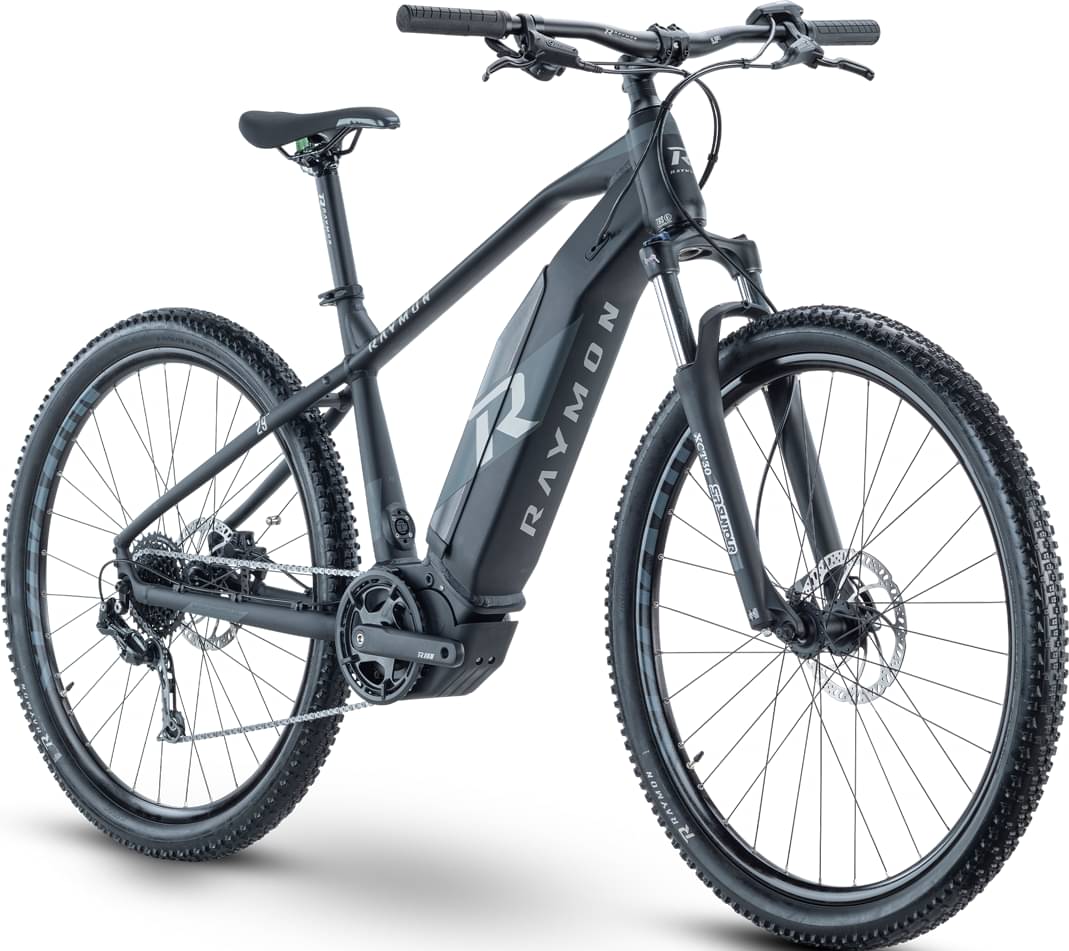

rraymon R RAYMON HardRay E-Seven 5.0 2021
2021 E-bike
Estimate price |
3,096$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Fork Suntour XCT -
Groupset Deore, Altus -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR XCT30 HLO
Drivetrain
Rear Derailleur
Shimano Deore, RD-M592 Shadow, 9-S
Shift Levers
Shimano Altus, SL-M2010, Rapidfire Plus, 9-speed
Cassette
Shimano CS-HG200, 11-36 T
Chain
KMC Z9
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Traxx, Front Hub: R Raymon DB-600F, 9x100mm, Rear Hub: R Raymon MD-JA251R, 9x141mm
Tires
Impac Ridgepac, 57-584, 27.5x2.25
Brakes
Brakes
Tektro HD-M275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °
Handlebar
R Raymon 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon Ergo
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250W, 70Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.47 mm | 1.45 mm | 1.43 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 677 mm | 687 mm | 697 mm | 708 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 615 mm | 620 mm | 624 mm | 629 mm |
| Reach | 414 mm | 422 mm | 431 mm | 440 mm |
| Top Tube Length | 589 mm | 599 mm | 609 mm | 619 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm | 150 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1149 mm | 1159 mm | 1169 mm | 1180 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
HardRay E-Seven 5.0 belongs to the Rraymon E Hardray model. There are 23 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
R RAYMON HardRay E-Seven 2.0 2021 is the most affordable e-bike of this model and has a price of 1910$. On the other hand, R RAYMON HardRay E-Seven 8.0 2021, is the most expensive and costs 4034$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, R RAYMON HardRay E-Seven 5.0 price was 2866$. Comparing this to the average Crosscountry e-bike price, we see that the price is 16.84% higher.
Overview of components
Fork
This e-bike has the Suntour XCT fork installed. The fork’s travel is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on HardRay E-Seven 5.0 are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON HardRay E-Seven 5.0 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
