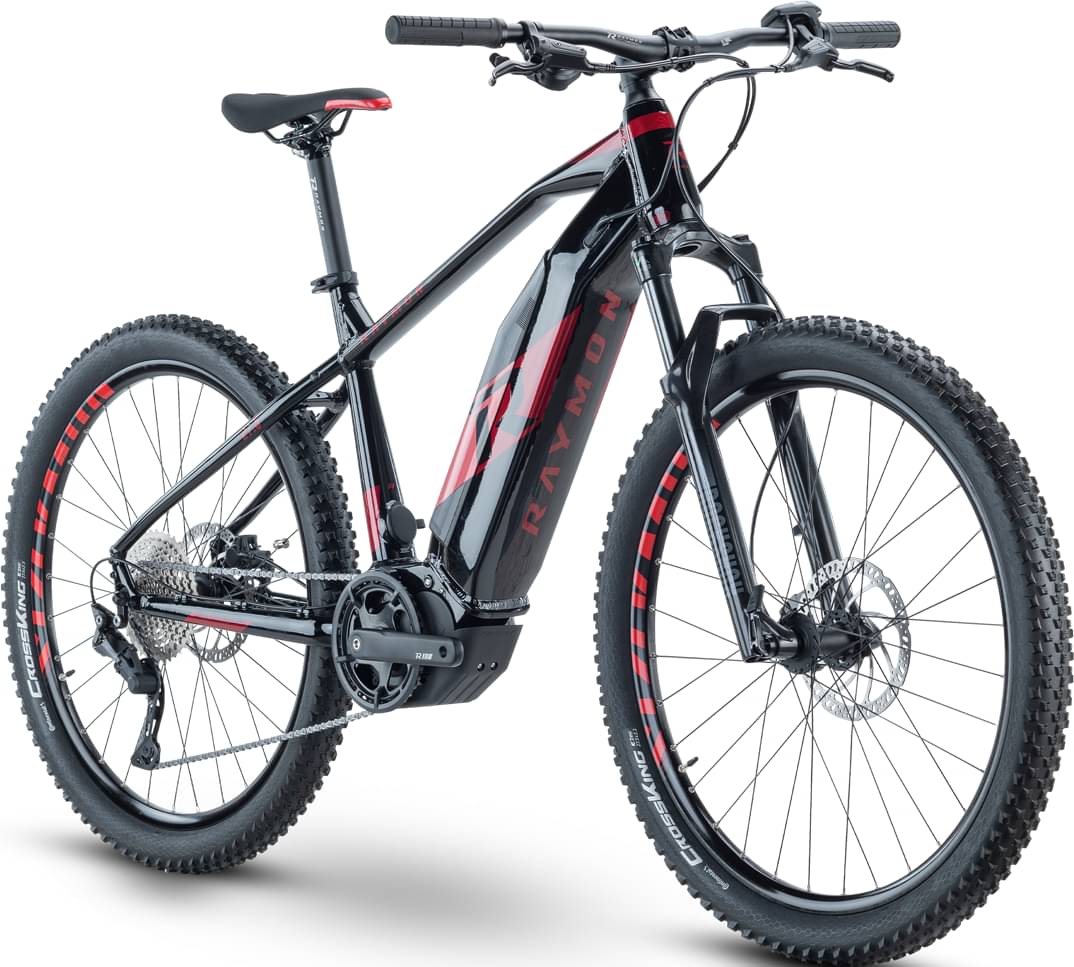

rraymon R RAYMON HardRay E-Seven 6.0 2021
2021 E-bike
Estimate price |
3,325$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Fork RockShox Recon Silver TK -
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, External battery
Suspension Fork
RockShox Recon Silver TK
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow, 10-S
Shift Levers
Shimano Deore, SL-M4100, Rapidfire Plus, 10-speed
Cassette
Shimano CS-M4100, 11-42 T
Chain
KMC e10S
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Traxx, Front Hub: R Raymon DA211F, 15x110mm, Rear Hub: R Raymon DN662R, 9x141mm
Tires
Continental Cross King, 58-584, 27.5x2.3
Brakes
Brakes
Tektro HD-M275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °
Handlebar
R Raymon 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon Ergo
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250W, 70Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.47 mm | 1.45 mm | 1.43 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 677 mm | 687 mm | 697 mm | 708 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 615 mm | 620 mm | 624 mm | 629 mm |
| Reach | 414 mm | 422 mm | 431 mm | 440 mm |
| Top Tube Length | 589 mm | 599 mm | 609 mm | 619 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm | 150 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1149 mm | 1159 mm | 1169 mm | 1180 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
HardRay E-Seven 6.0 is a Rraymon E Hardray model. 23 e-bikes variations carry this model name so far. You can easily view all of the Rraymon E Hardray e-bikes models from 2021, here.
Model range prices
R RAYMON HardRay E-Seven 2.0 2021 is the cheapest e-bike model and costs 1910$. R RAYMON HardRay E-Seven 8.0 2021 is the most expensive one and costs 4034$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2021 and its price was 3078$. Comparing this to the average Crosscountry e-bike price, we see that the price is 25.48% higher.
HardRay E-Seven 6.0 components
Fork
The RockShox Recon Silver TK is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the HardRay E-Seven 6.0 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON HardRay E-Seven 6.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
