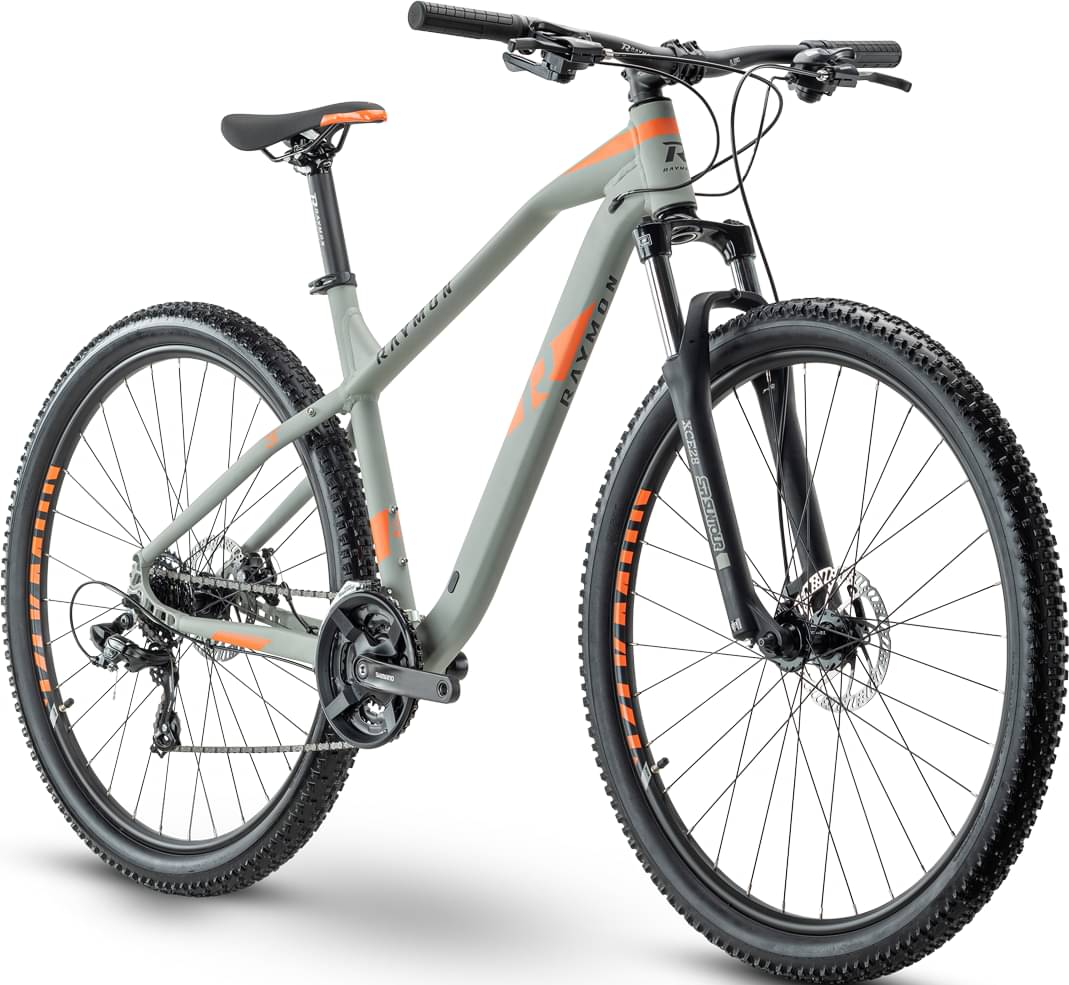

rraymon R RAYMON HardRay Nine 1.0 2021
2021 Mountain
Estimate price |
581$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Fork Suntour -
Groupset Tourney -
Suspension Hardtail -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061
Suspension Fork
SR SUNTOUR XCE28
Drivetrain
Rear Derailleur
Shimano Tourney, RD-TY300, 7-S
Shift Levers
Shimano Tourney, ST-EF41-R, Optical Gear Display, 7-speed
Cassette
Shimano CS-HG200, 12-32 T
Chain
KMC HV-500
Pedals
R Raymon Plastic
Wheels
Rims
Rim: Ryde Disc19, Hubs: R Raymon DB600F, 9x100/9x135mm
Tires
Impac Ridgepac, 57-622, 29x2.25
Brakes
Brakes
Tektro MD-M280, 2-piston, Mechanical disc brake
Cockpit
Stem
R Raymon 31.8, 7 °
Handlebar
R Raymon Riser 31.8 mm, 680 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon MTB, Lock-on grips
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 30.9 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 649 mm | 678 mm | 692 mm |
| Rake | 39 mm | 46 mm | 40 mm |
| Trail | 95 mm | 87 mm | 94 mm |
| Stack | 625 mm | 641 mm | 653 mm |
| Reach | 393 mm | 409 mm | 425 mm |
| Top Tube Length | 585 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1088 mm | 1117 mm | 1131 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
HardRay Nine 1.0 is a Rraymon Hardray model. There are 21 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
R RAYMON HardRay Nine 1.0 2021 is the most economical model, with a starting price of 530$. R RAYMON HardRay Nine 9.0 2021 on the other hand costs 5096$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 530$. Comparing this to the average Crosscountry bike price, we see that the price is 259.43% lower.
Overview of components
Fork
The HardRay Nine 1.0 comes factory-installed with the Suntour fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, R RAYMON HardRay Nine 1.0 2021, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The HardRay Nine 1.0 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
