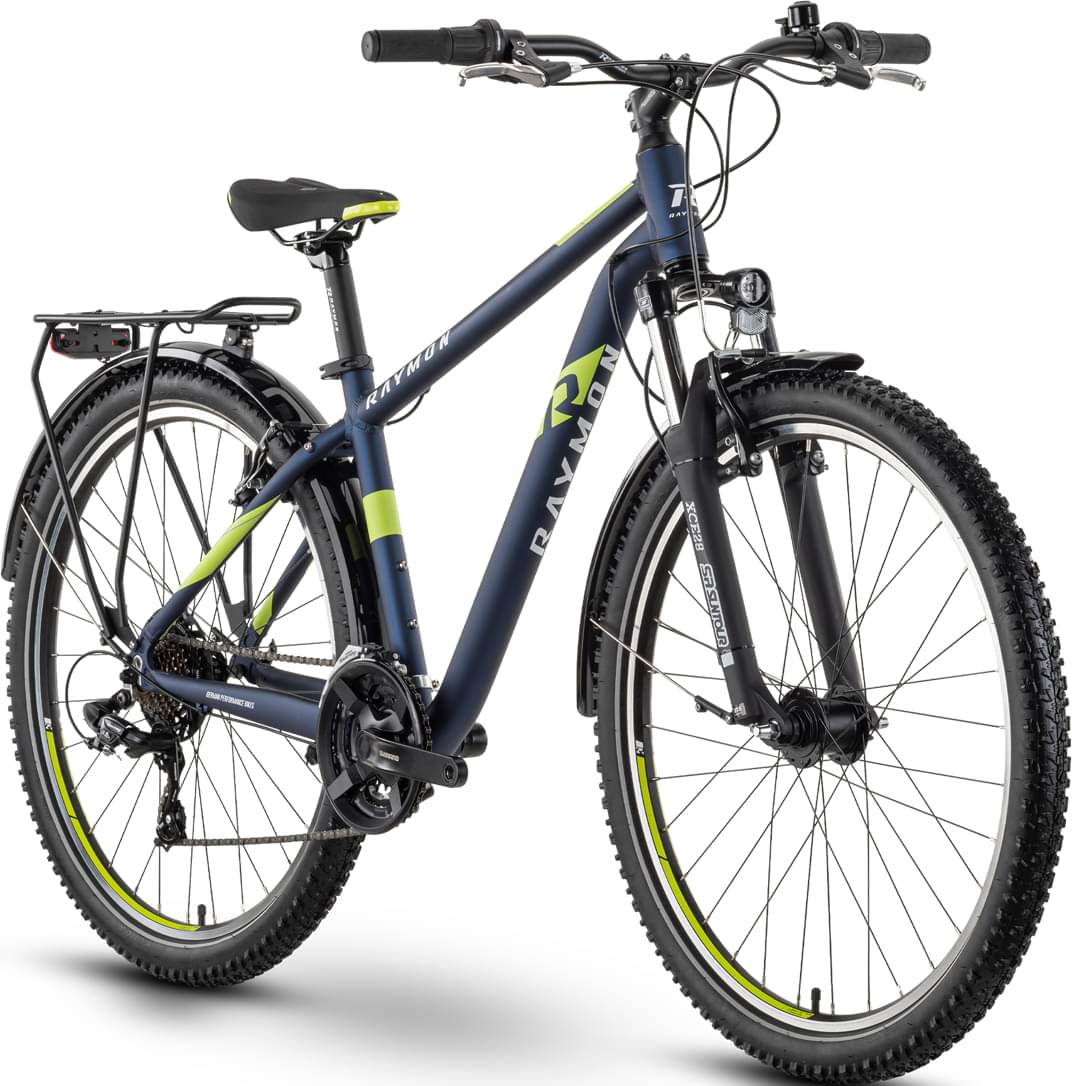

rraymon R RAYMON SevenRay 1.5 2022
2022 Mountain
Estimate price |
708$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCE28
-
Groupset Tourney -
Suspension Hardtail -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061
Suspension Fork
SR SUNTOUR XCE28, Coil, 100 mm
Drivetrain
Rear Derailleur
Shimano Tourney, RD-TY300, 21-S
Shift Levers
Shimano Tourney, FC-TY301
Cassette
Shimano MF-TZ500, 14-34 T
Crank
Shimano Tourney, FC-TY301, 42/34/24 T
Chain
KMC HV-500
Wheels
Rims
Shimano MF-TZ500, 14-34 T
Tires
Kenda K922, Reflex, 54-584, 27.5x2.1
Brakes
Brakes
V-Brake, V-brake
Cockpit
Stem
R Raymon 25.4, 20 °, Ahead
Handlebar
R Raymon Riser 25.4 mm, 680 mm, Sweep: 9 °, Rise: 30 mm
Grips
R Raymon MTB
Seat
Saddle
R Raymon Kids
Seatpost
R Raymon, 27.2 mm, 350 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.59 mm | 1.54 mm |
| Bottom Bracket Height | 304 mm | 295 mm | 295 mm |
| Front Center | 634 mm | 649 mm | 692 mm |
| Rake | 45 mm | 39 mm | 40 mm |
| Trail | 82 mm | 88 mm | 87 mm |
| Stack | 589 mm | 626 mm | 654 mm |
| Reach | 384 mm | 394 mm | 426 mm |
| Top Tube Length | 565 mm | mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 105 mm | 135 mm |
| Chainstay Length | 432 mm | 447 mm | 447 mm |
| Wheelbase | 1061 mm | 1089 mm | 1132 mm |
| Bottom Bracket Drop | 51 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
SevenRay 1.5 is part of the Rraymon Sevenray model. 3 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
R RAYMON SevenRay 1.0 2022 is the most economical model, with a starting price of 562$. R RAYMON SevenRay 1.5 2022 on the other hand costs 647$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 647$. If we compare this with the average Crosscountry bike cost we notice that the price is 194.44% lower.
Overview of components
Fork
The fork installed on this bike is the Suntour XCE28 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the SevenRay 1.5 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON SevenRay 1.5 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
R RAYMON SevenRay 1.5 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
