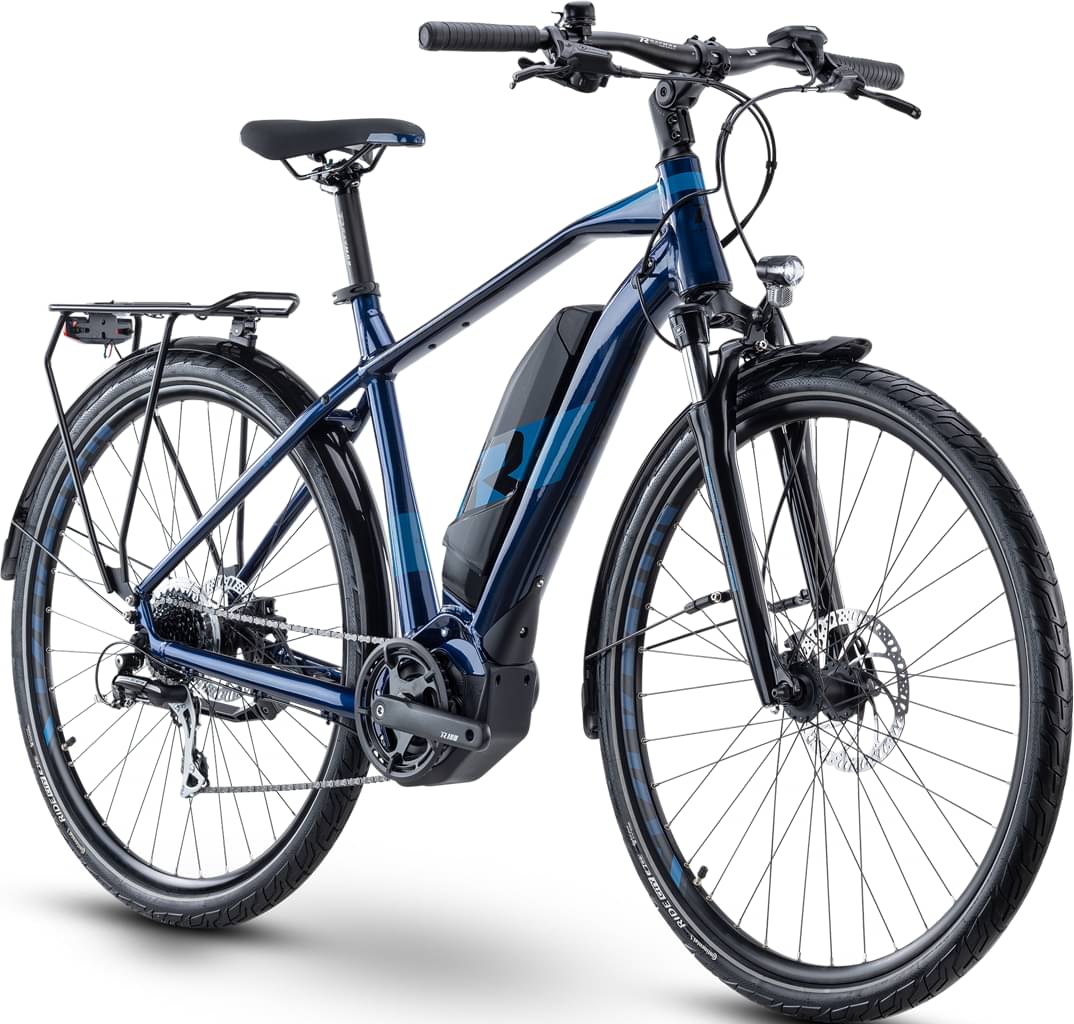

rraymon R RAYMON TourRay E 2.0 2022
2022 E-bike
Estimate price |
3,096$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork Suntour NEX -
Groupset Acera -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha DT500, 500 Wh, 36 V -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Rear Derailleur
Shimano Acera, RD-M360, 8-S
Shift Levers
Integrated into display
Cassette
Shimano CS-HG200, 12-32 T
Crank
R Raymon, 38 T
Chain
KMC Z8
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-HG200, 12-32 T
Tires
Continental Ride City, Reflex, 47-622, 28x1.75
Brakes
Brakes
Tektro HD-T275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 30.9 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250 W, 60 Nm
Battery
Yamaha DT500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.63 mm | 1.62 mm | 1.61 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 628 mm | 650 | 671 mm | 691 mm |
| Rake | 45 mm | 44 mm | 44 mm | 42 mm |
| Trail | 74 mm | 75 mm | 75 mm | 78 mm |
| Stack | 611 mm | 629 mm | 648 mm | 670 mm |
| Reach | 370 mm | 386 mm | 400 mm | 415 mm |
| Top Tube Length | 560 mm | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1086 mm | 1108 mm | 1129 mm | 1150 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
TourRay E 2.0 belongs to the Rraymon E Tourray model. 16 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the R RAYMON TourRay E 1.0 2022 has a starting price of 2653$. R RAYMON TourRay E 8.0 2022 on the other hand is the most expensive at 4777$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Touring e-bikes
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 2866$. Comparing this to the average Touring e-bike price, we see that the price is 17.99% higher.
TourRay E 2.0 components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on TourRay E 2.0 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON TourRay E 2.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
