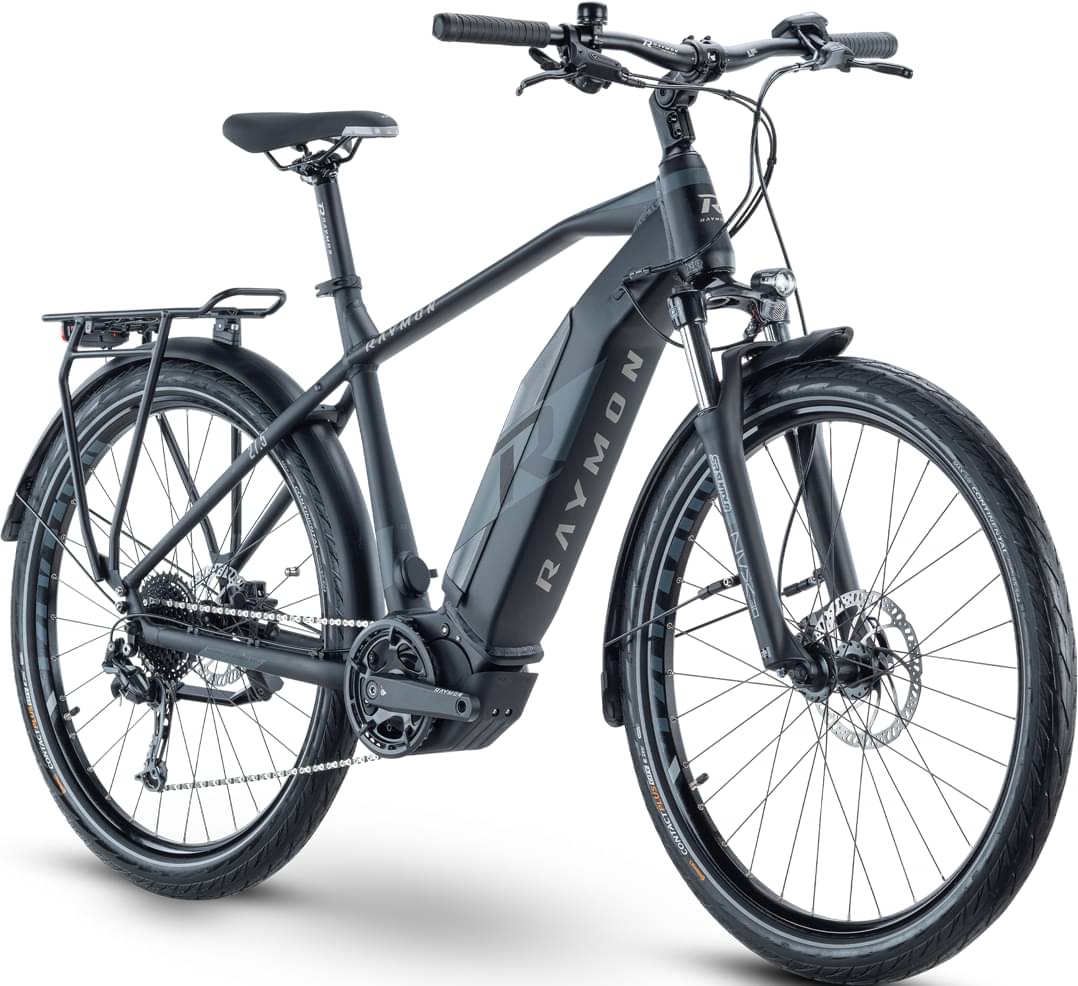

rraymon R RAYMON TourRay E 4.0 2021
2021 E-bike
Estimate price |
3,256$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour -
Groupset Deore, Altus -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Partially integrated battery
Suspension Fork
SR SUNTOUR NVX
Drivetrain
Rear Derailleur
Shimano Deore, RD-M592, Shadow, 9-S
Shift Levers
Shimano Altus, SL-M2010, Rapidfire Plus, 9-speed
Cassette
Shimano CS-HG200, 11-36 T
Chain
KMC e9s
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Trucky30, Front Hub: R Raymon MD-JA159F, 9x100mm, Rear Hub: R Raymon MD-JA251R, 9x141mm
Tires
Continental CONTACT Plus City, Reflex, 55-584, 27.5x2.2
Brakes
Brakes
Tektro HD-T275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250W, 60Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.43 mm | 1.43 mm |
| Front Center | 683 mm | 694 mm | 704 mm | 715 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 69 mm | 69 mm | 69 mm | 69 mm |
| Stack | 611 mm | 621 mm | 630 mm | 639 mm |
| Reach | 427 mm | 434 mm | 441 mm | 448 mm |
| Top Tube Length | 615 mm | 625 mm | 635 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1142 mm | 1153 mm | 1163 mm | 1174 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
TourRay E 4.0 belongs to the Rraymon E Tourray model. 16 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
R RAYMON TourRay E 1.0 2021 is the most economical model, with a starting price of 2547$. R RAYMON TourRay E 8.0 2021 on the other hand costs 4246$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Touring e-bikes average price
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 2972$. Comparing this to the average Touring e-bike price, we see that the price is 22.35% more expensive.
Overview of components
Fork
The fork installed on this bike is the Suntour model. The travel on this model is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the TourRay E 4.0 model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON TourRay E 4.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
TourRay E 4.0 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
