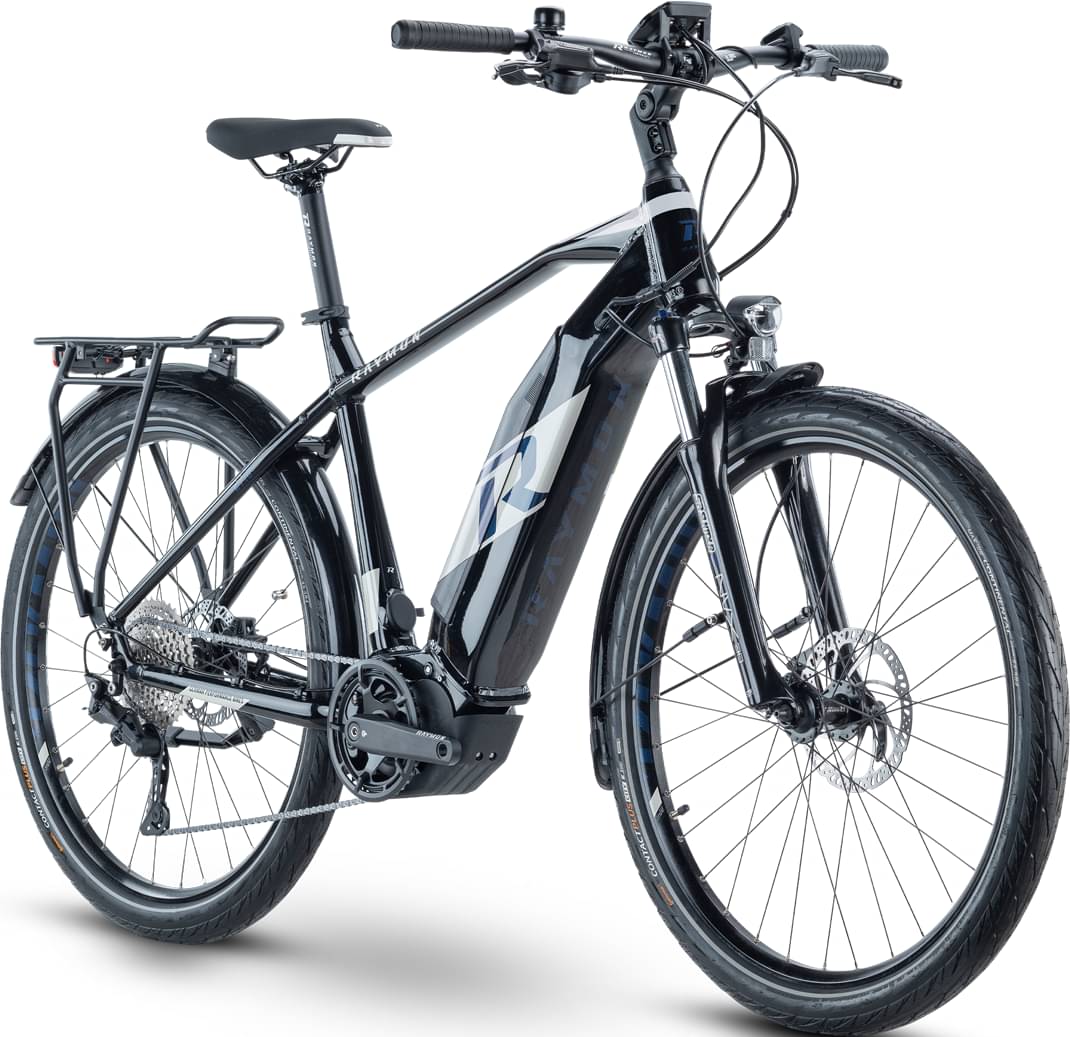

rraymon R RAYMON TourRay E 5.0 2021
2021 E-bike
Estimate price |
3,489$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Fork Suntour -
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Carbon, Partially integrated battery
Suspension Fork
SR SUNTOUR NVX
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow, 10-S
Shift Levers
Shimano Deore, SL-M4100, Rapidfire Plus, 10-speed
Cassette
Shimano CS-M4100, 11-42 T
Chain
KMC e10S
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Trucky30, Front Hub: R Raymon MD-JA159F, 9x100mm, Rear Hub: R Raymon MD-JA251R, 9x141mm
Tires
Continental CONTACT Plus City, Reflex, 55-584, 27.5x2.2
Brakes
Brakes
Tektro HD-T275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250W, 70Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Bluetooth
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.43 mm | 1.43 mm |
| Front Center | 683 mm | 694 mm | 704 mm | 715 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 69 mm | 69 mm | 69 mm | 69 mm |
| Stack | 611 mm | 621 mm | 630 mm | 639 mm |
| Reach | 427 mm | 434 mm | 441 mm | 448 mm |
| Top Tube Length | 615 mm | 625 mm | 635 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1142 mm | 1153 mm | 1163 mm | 1174 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
TourRay E 5.0 is part of the Rraymon E Tourray model. R RAYMON released 16 e-bikes variations of this model so far. You can easily view all of the Rraymon E Tourray e-bikes models from 2021, here.
Model range prices
R RAYMON TourRay E 1.0 2021 is the cheapest e-bike model and costs 2547$. R RAYMON TourRay E 8.0 2021 is the most expensive one and costs 4246$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Touring e-bikes
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 3184$. Comparing the average cost of a Touring e-bike to this one, you will see that TourRay E 5.0 price is 31.08% more expensive.
Overview of components
Fork
The Suntour is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the TourRay E 5.0 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON TourRay E 5.0 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
