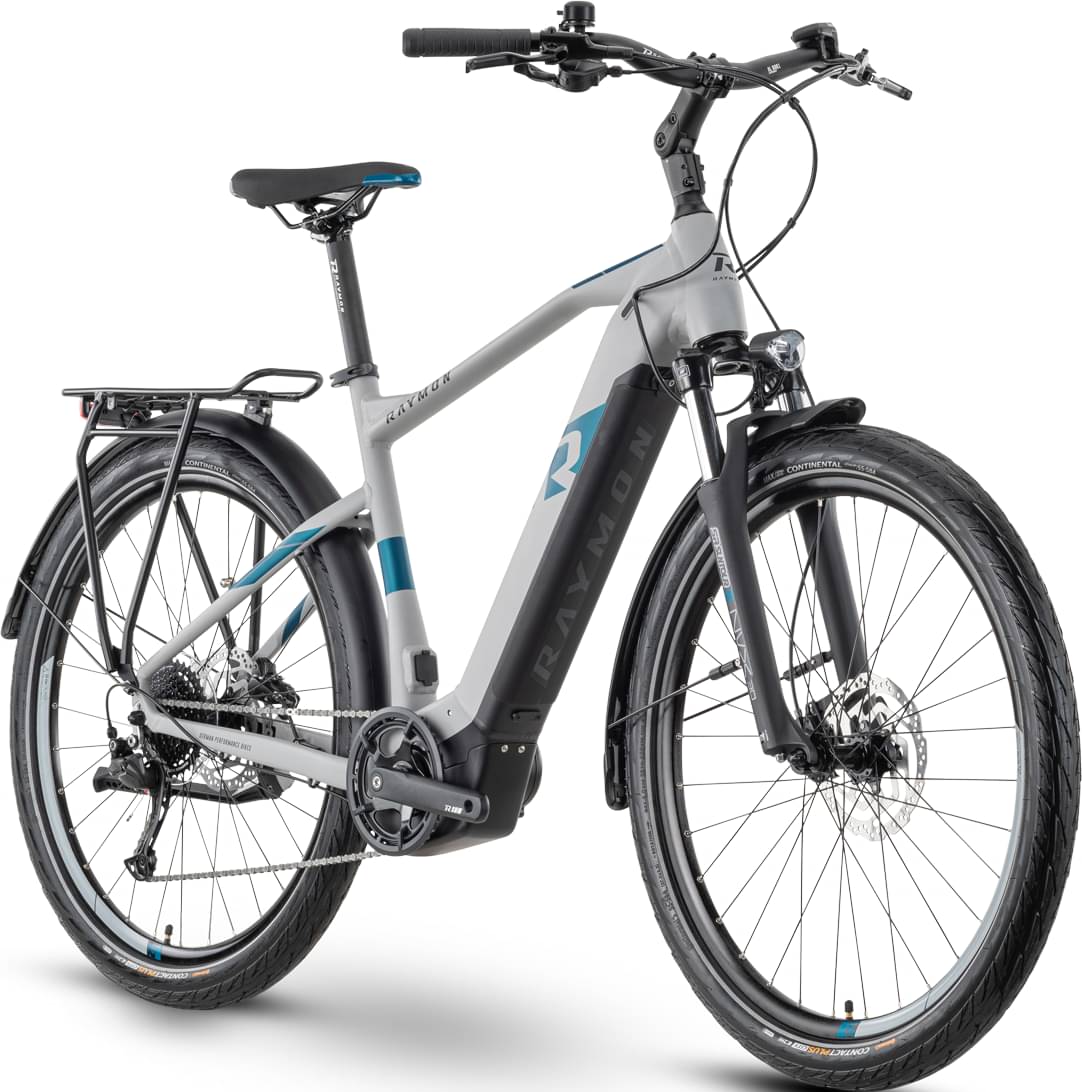

rraymon R RAYMON TourRay E 5.0 2022
2022 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour XCM -
Groupset Alivio -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR XCM32 NLO, Coil, 80 mm, tapered
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100, Shadow, 9-S
Shift Levers
Integrated into display
Cassette
Shimano CS-HG200, 11-36 T
Crank
R Raymon, 38 T
Chain
KMC Z9
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-HG200, 11-36 T
Tires
Continental CONTACT Plus City, 55-584, 27.5x2.2
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, Ahead, adjustable
Handlebar
R Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 20 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250 W, 60 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.51 mm | 1.51 mm |
| Front Center | 681 mm | 675 mm | 680 mm | 691 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 75 mm | 69 mm | 69 mm | 69 mm |
| Stack | 620 mm | 625 mm | 634 mm | 644 mm |
| Reach | 414 mm | 418 mm | 420 mm | 427 mm |
| Top Tube Length | 604 mm | 609 mm | 614 mm | 624 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1133 mm | 1127 mm | 1132 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
TourRay E 5.0 completes the Rraymon E Tourray model. There are 16 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the R RAYMON TourRay E 1.0 2022 has a starting price of 2653$. R RAYMON TourRay E 8.0 2022 on the other hand is the most expensive at 4777$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Touring e-bikes
According to our math, the average price for a trustworthy Touring e-bike is 2429$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, R RAYMON TourRay E 5.0 price was 3184$. Doing a quick comparison, we notice that TourRay E 5.0 price is 31.08% higher than the average cost of a Touring e-bike.
TourRay E 5.0 components
Fork
The Suntour XCM is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on TourRay E 5.0 are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The TourRay E 5.0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
