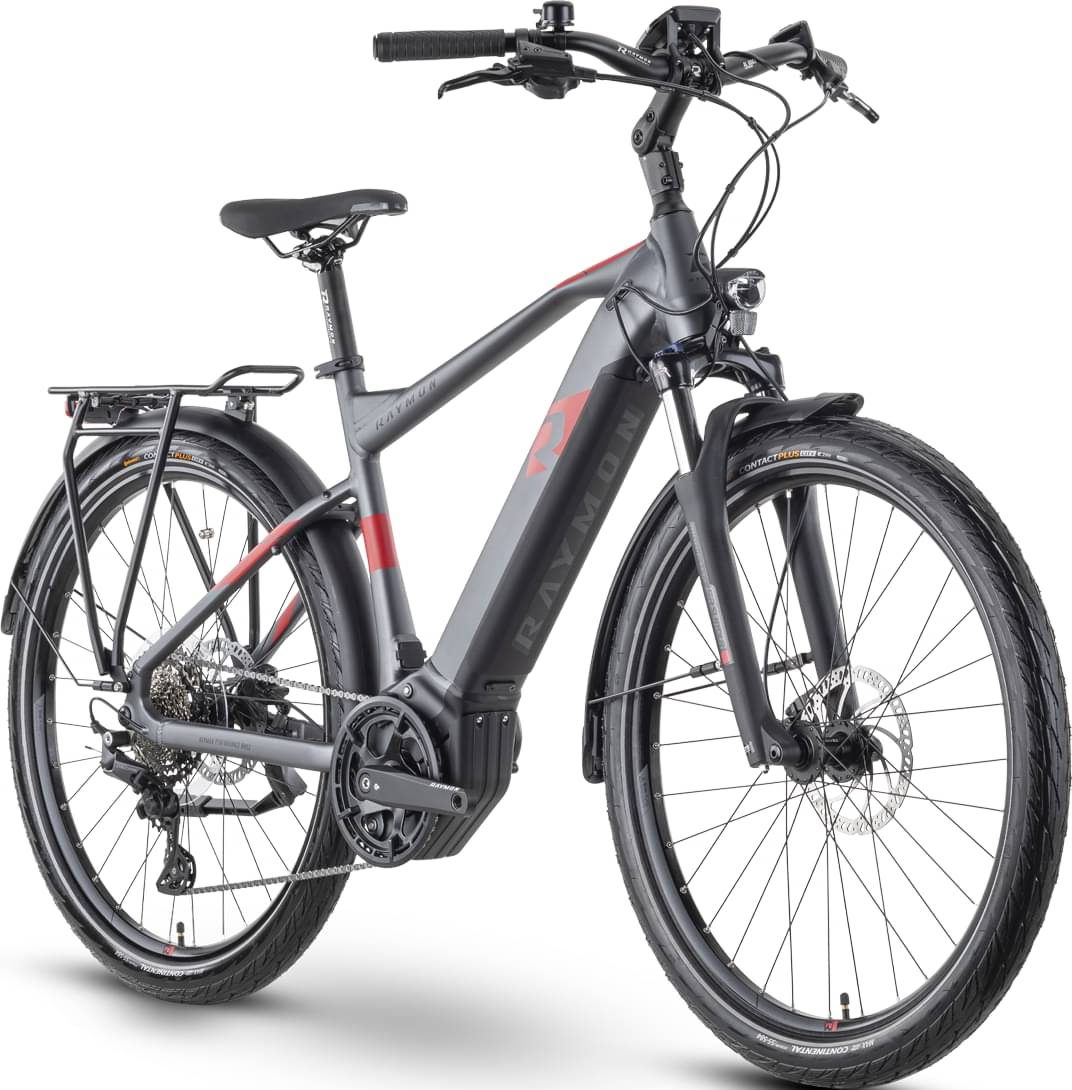

rraymon R RAYMON TourRay E 6.0 2022
2022 E-bike
Estimate price |
4,071$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour MOBIE -
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Simplo EnergyTube, 630 Wh, 36 V -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Integrated battery, Boost
Suspension Fork
SR SUNTOUR Mobie-A32 NLO, Coil, 75 mm, tapered
Drivetrain
Rear Derailleur
Shimano Deore LG, RD-M5130, Shadow Plus, 10-S
Shift Levers
Yamaha C
Cassette
Shimano CS-LG400, 11-43 T
Crank
R Raymon, 44 T
Chain
Shimano CN-LG500
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-LG400, 11-43 T
Tires
Continental CONTACT Plus City, 55-584, 27.5x2.2
Brakes
Brakes
Clarks M2, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, Ahead, adjustable
Handlebar
R Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Simplo EnergyTube, 630 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Micro-USB
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.51 mm | 1.51 mm |
| Front Center | 681 mm | 674 mm | 680 mm | 691 mm |
| Rake | 44 mm | 43 mm | 44 mm | 45 mm |
| Trail | 75 mm | 70 mm | 69 mm | 67 mm |
| Stack | 620 mm | 624 mm | 633 mm | 642 mm |
| Reach | 413 mm | 417 mm | 419 mm | 426 mm |
| Top Tube Length | 603 mm | 608 mm | 613 mm | 623 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 415 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1132 mm | 1125 mm | 1131 mm | 1142 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
TourRay E 6.0 is part of the Rraymon E Tourray model. R RAYMON released 16 e-bikes variations of this model so far. You can easily view all of the Rraymon E Tourray e-bikes models from 2022, here.
Model range prices
R RAYMON TourRay E 1.0 2022 is the most economical model, with a starting price of 2653$. R RAYMON TourRay E 8.0 2022 on the other hand costs 4777$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Touring e-bikes average price
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3715$. Doing a quick comparison, we notice that TourRay E 6.0 price is 52.94% higher than the average cost of a Touring e-bike.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the TourRay E 6.0 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
